Girder Clamp – 15 Ton - Model GC – Caldwell

SKU: 67-051
$4,148.44
Estimated Lead Time:

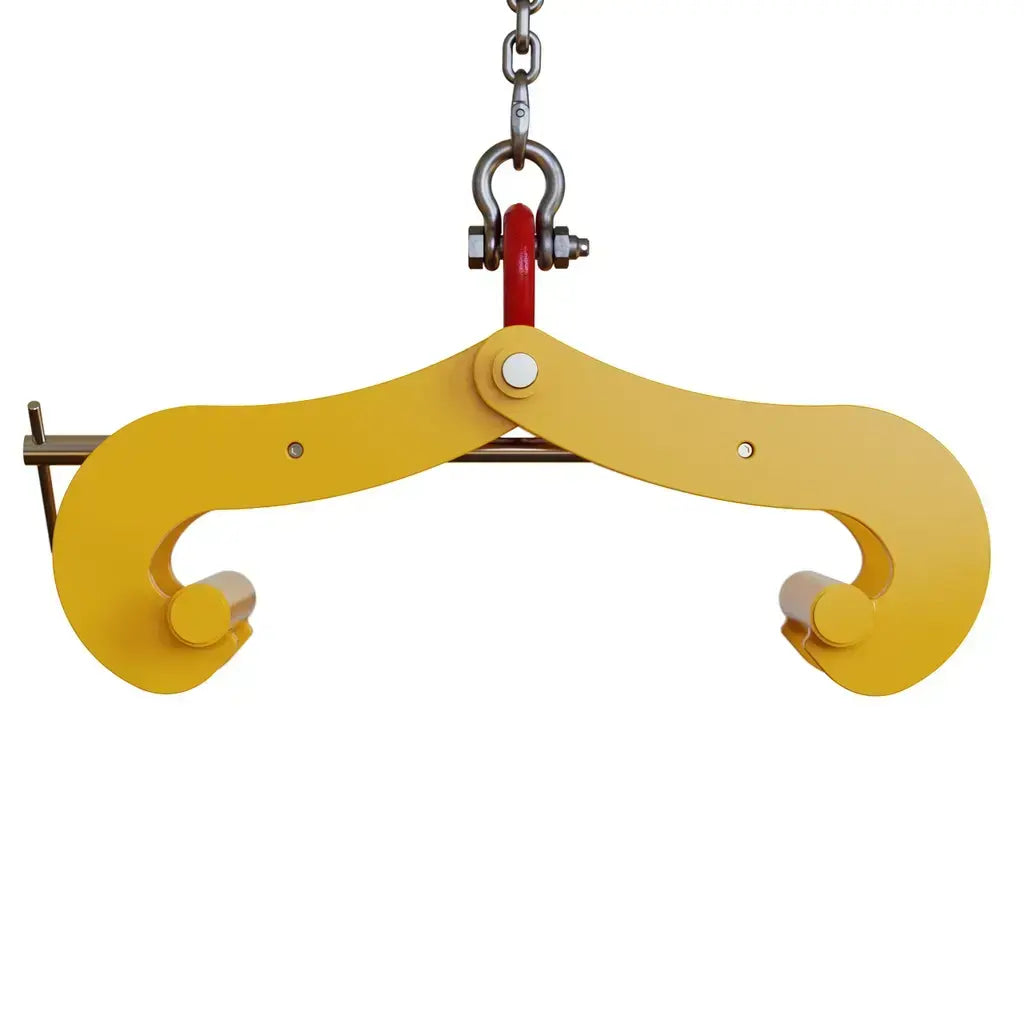

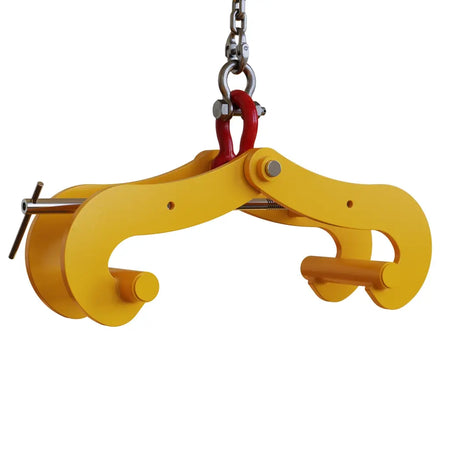

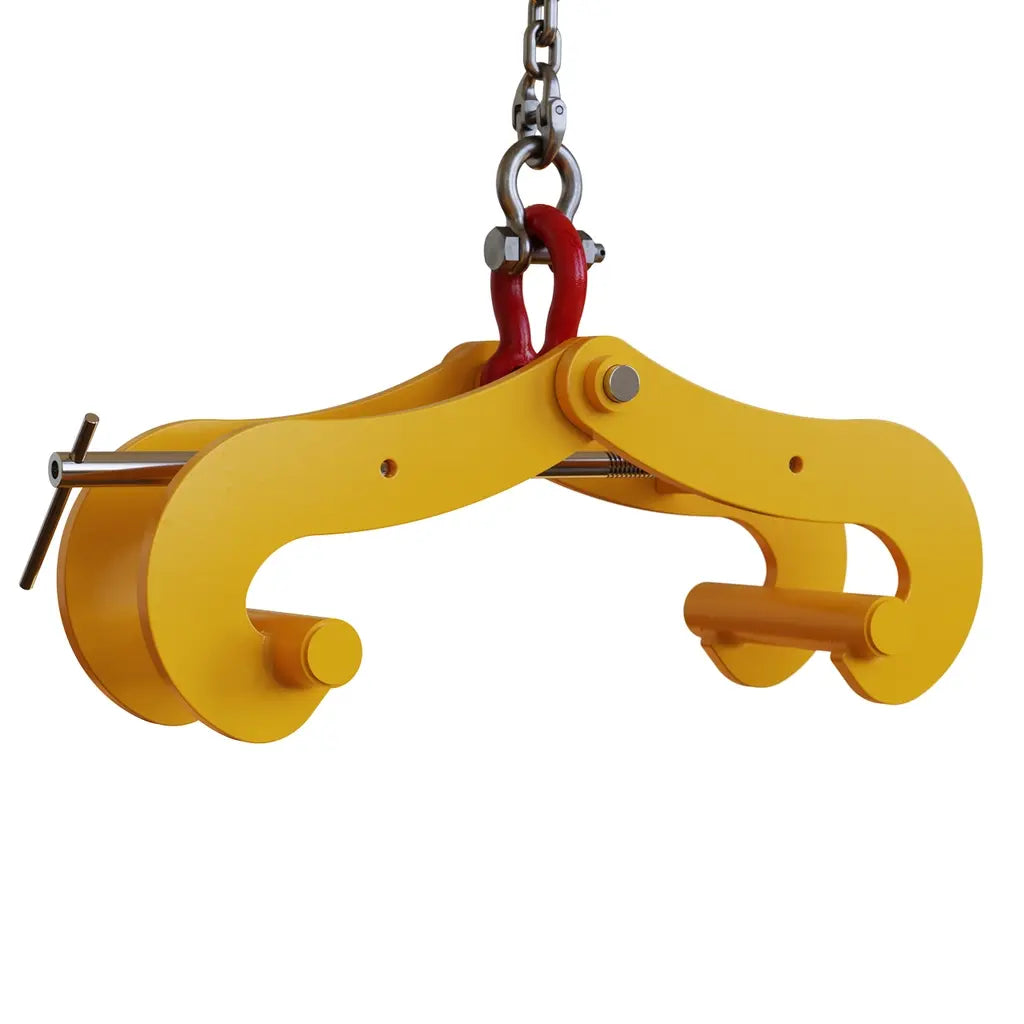

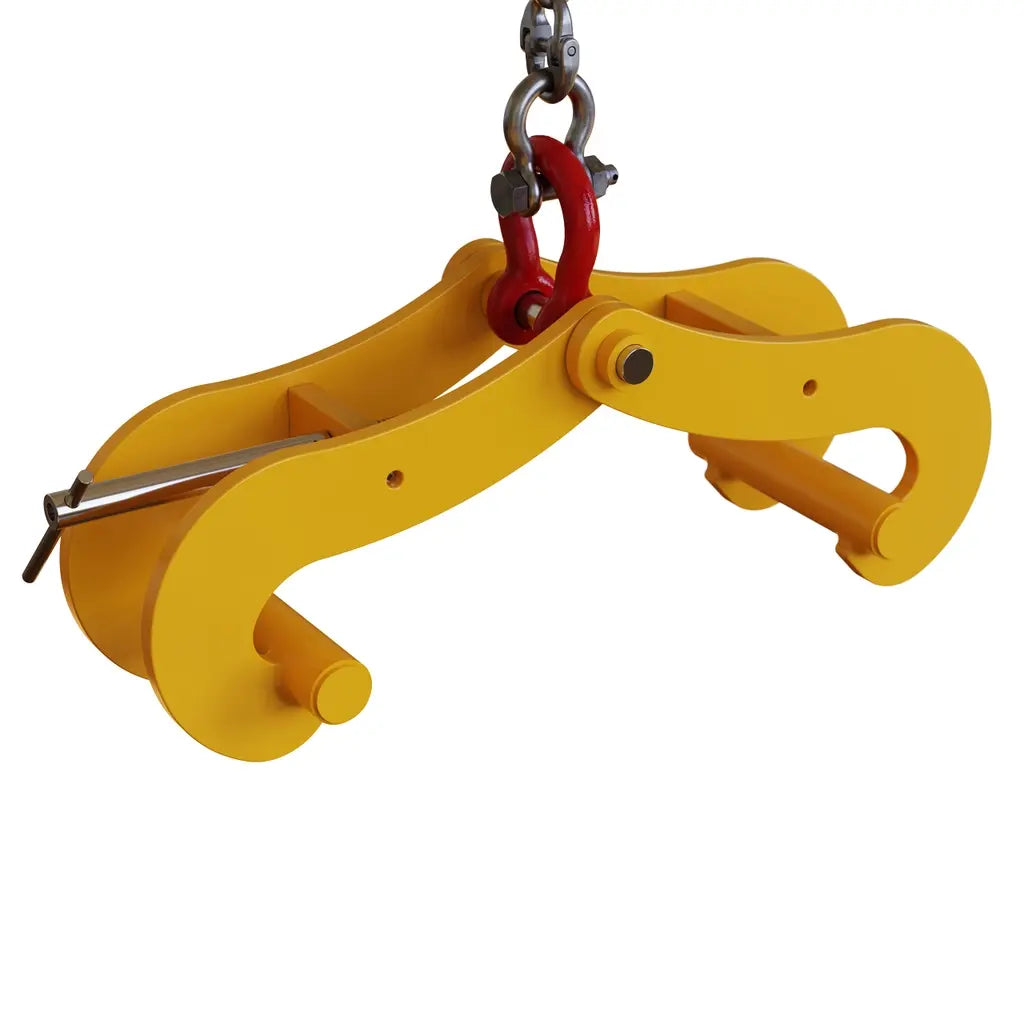

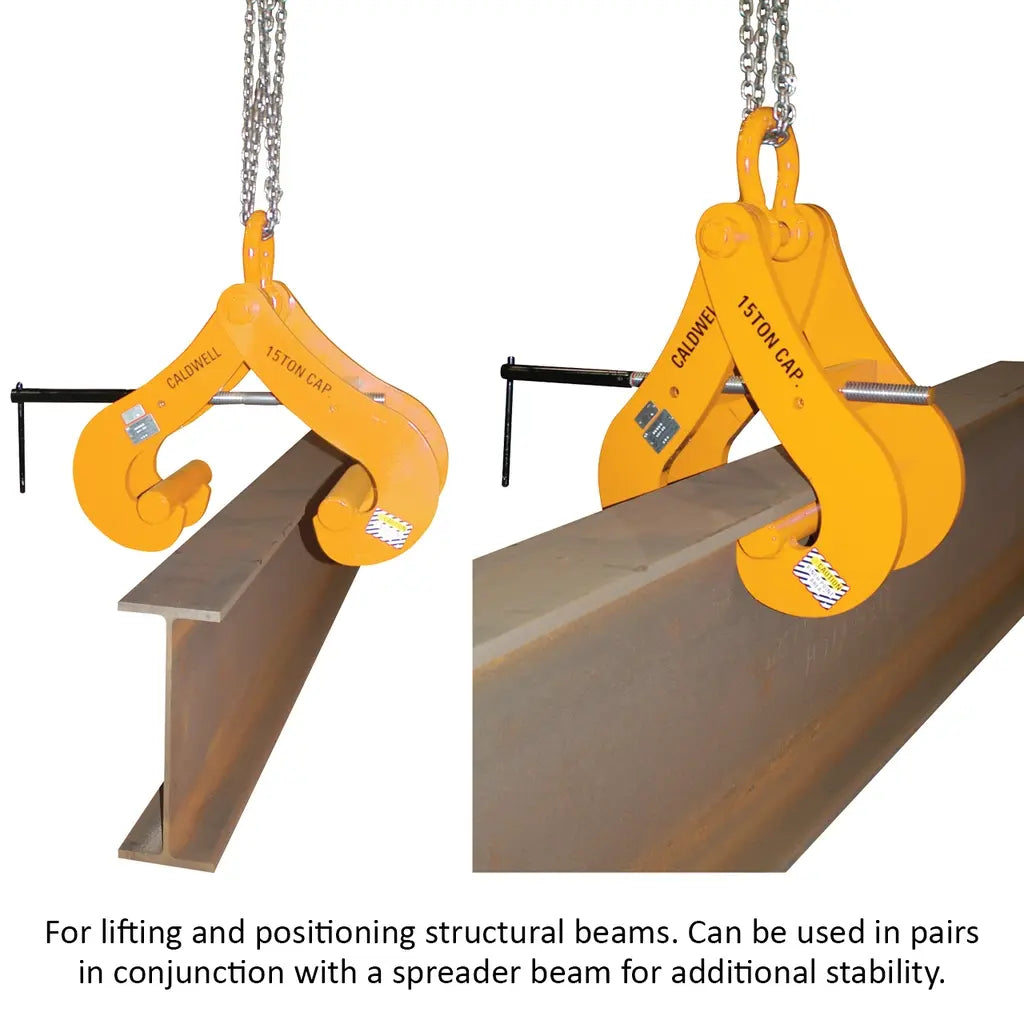

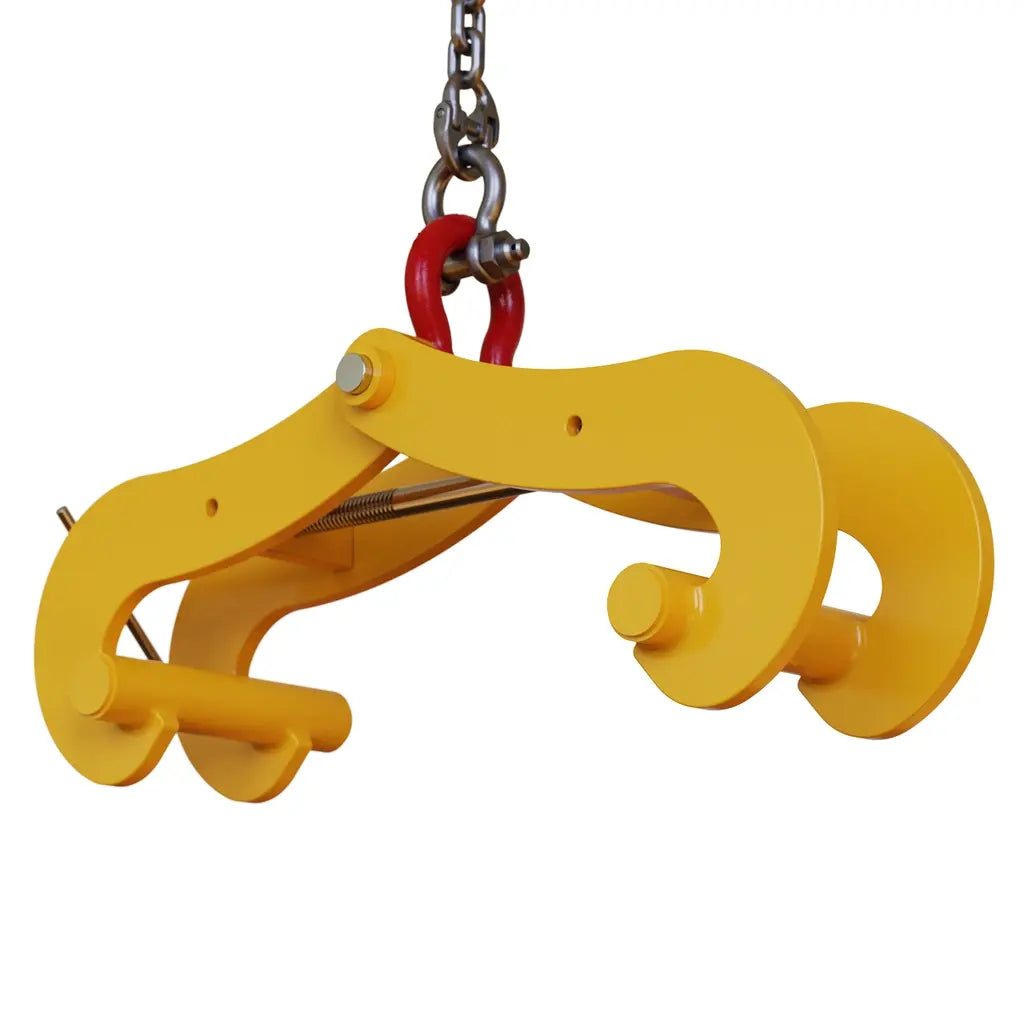

The Caldwell Model GC Girder Clamp provides a safe and efficient solution for lifting and positioning wide flange beam sections and plate girders. With a screw-spindle design for a positive grip, this clamp ensures quick clamping and unclamping with minimal maintenance. It is ideal for vertical lifting applications and can also be used in pairs with a spreader beam for added stability. Designed to comply with ASME standards, the GC Girder Clamp is available in 15-, 20-, and 25-ton capacities. Its adjustable jaw opening accommodates a wide range of beam types and flange widths, making it a versatile tool for structural lifting tasks. Need a custom configuration? Call us to build a girder clamp tailored to your exact lifting needs.

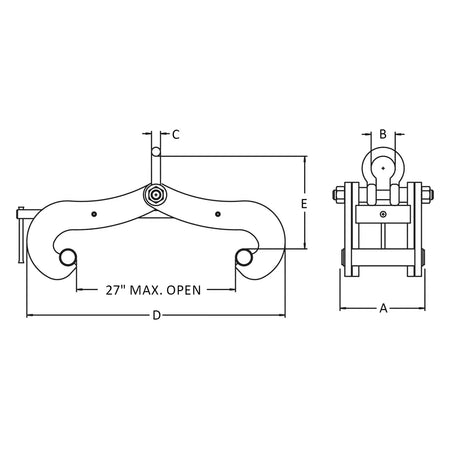

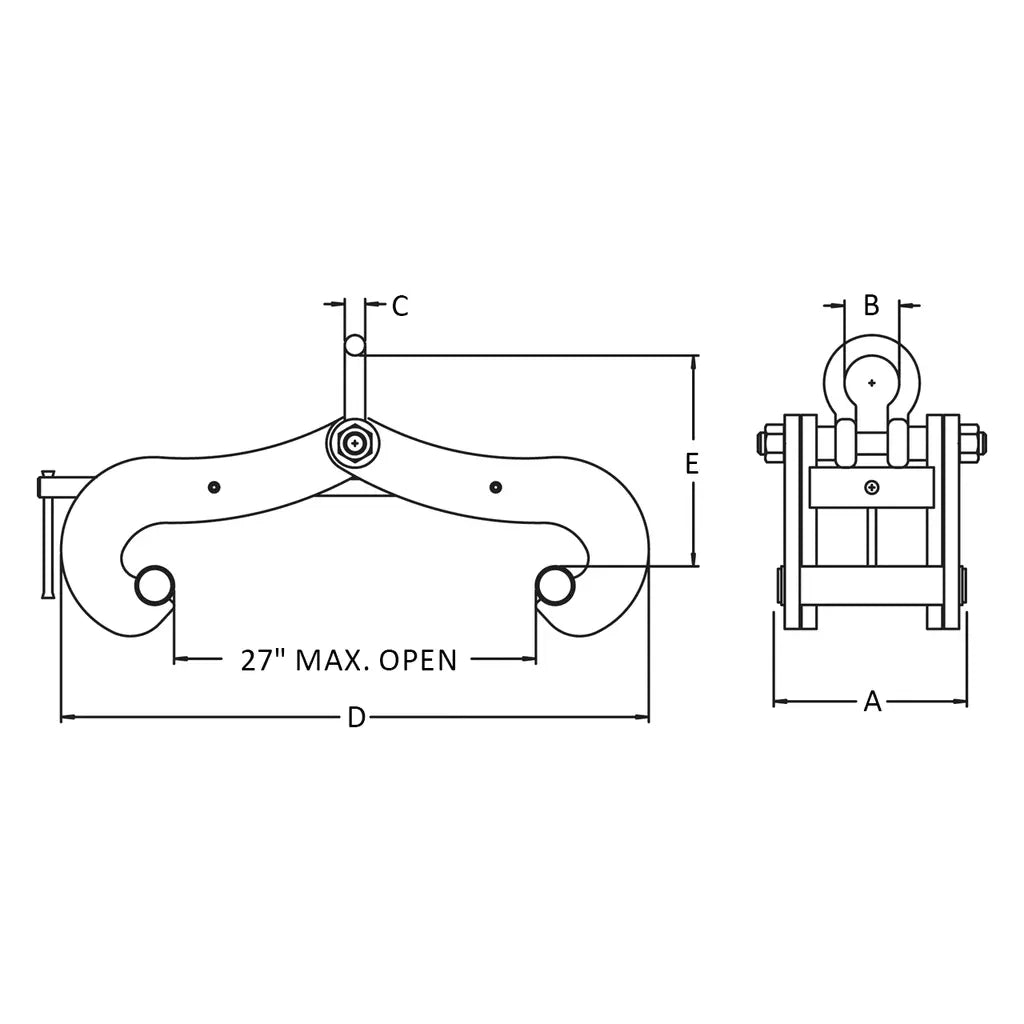

  • Model Number: GC-15
  • Capacity: 15 tons
  • Max Flange Thickness: 3 in
  • Weight: 235 lbs
  • Max Flange Width: 24 in
  • Max Headroom Closed: 23.4 in
  • Max Width Closed: 44 in
  • Max Width Open: 23 in
  • Min Flange Width: 6 in
  • Min Headroom Open: 15.7 in
  • Product Depth: 14.81 in
  • Shackle Opening: 3.9 in
  • Shackle Thickness: 1.6 in

Spec Sheet (PDF)
