Beam Clamp – 15 ton - Model F – Caldwell

SKU: 67-032
$4,357.50
Estimated Lead Time:

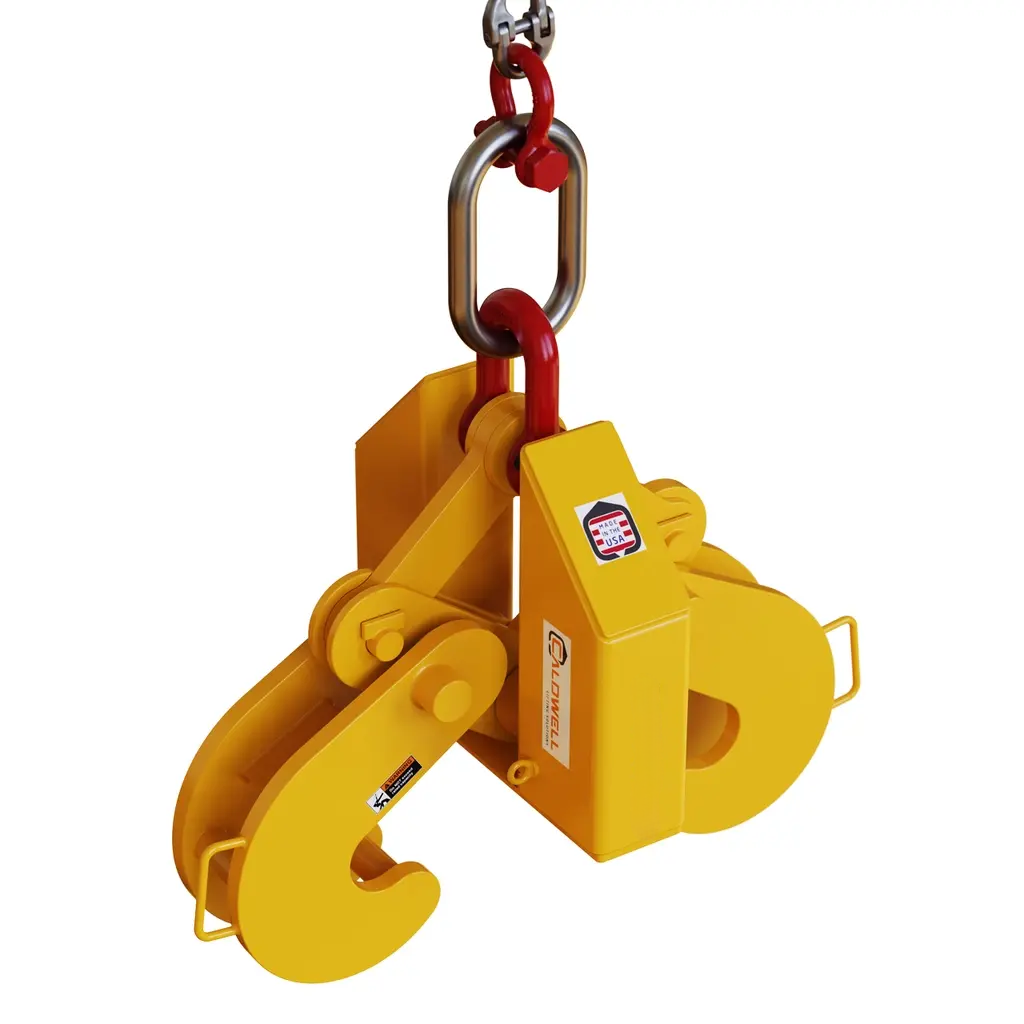

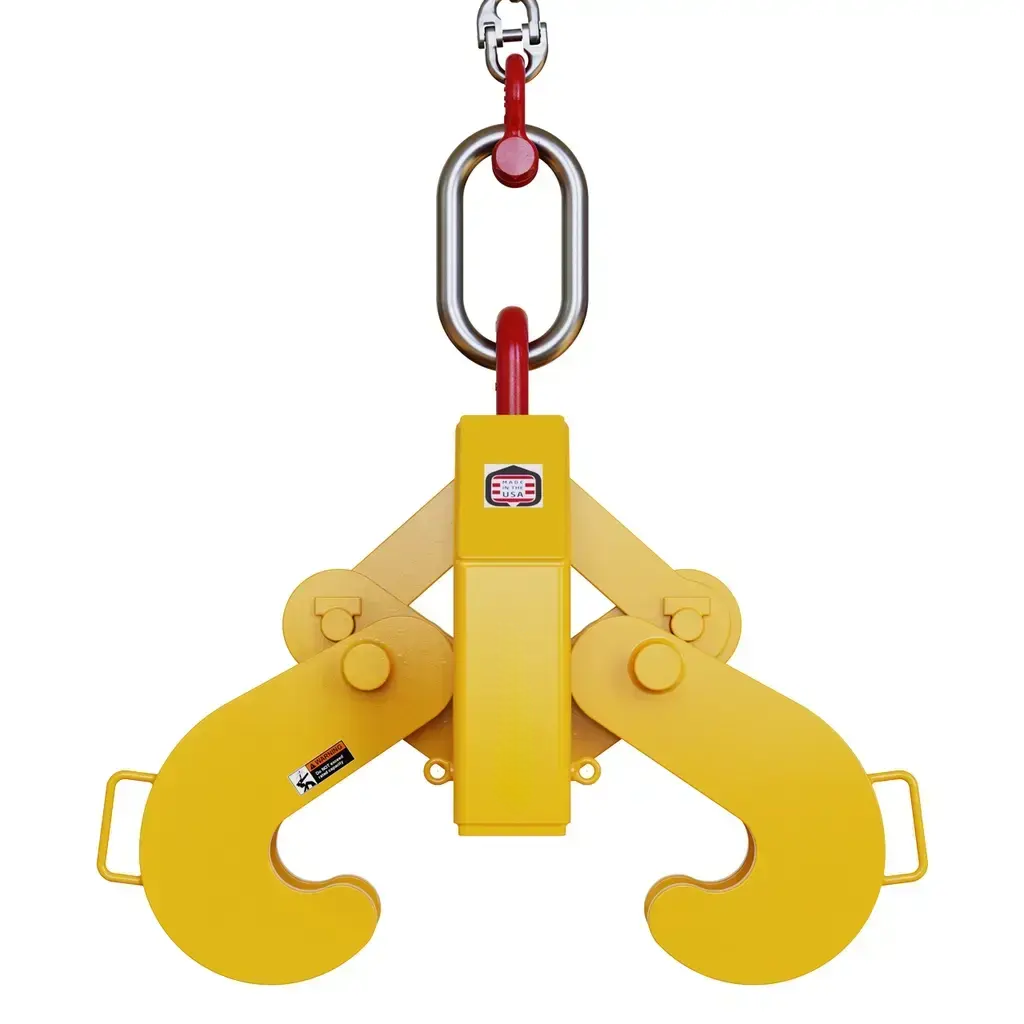

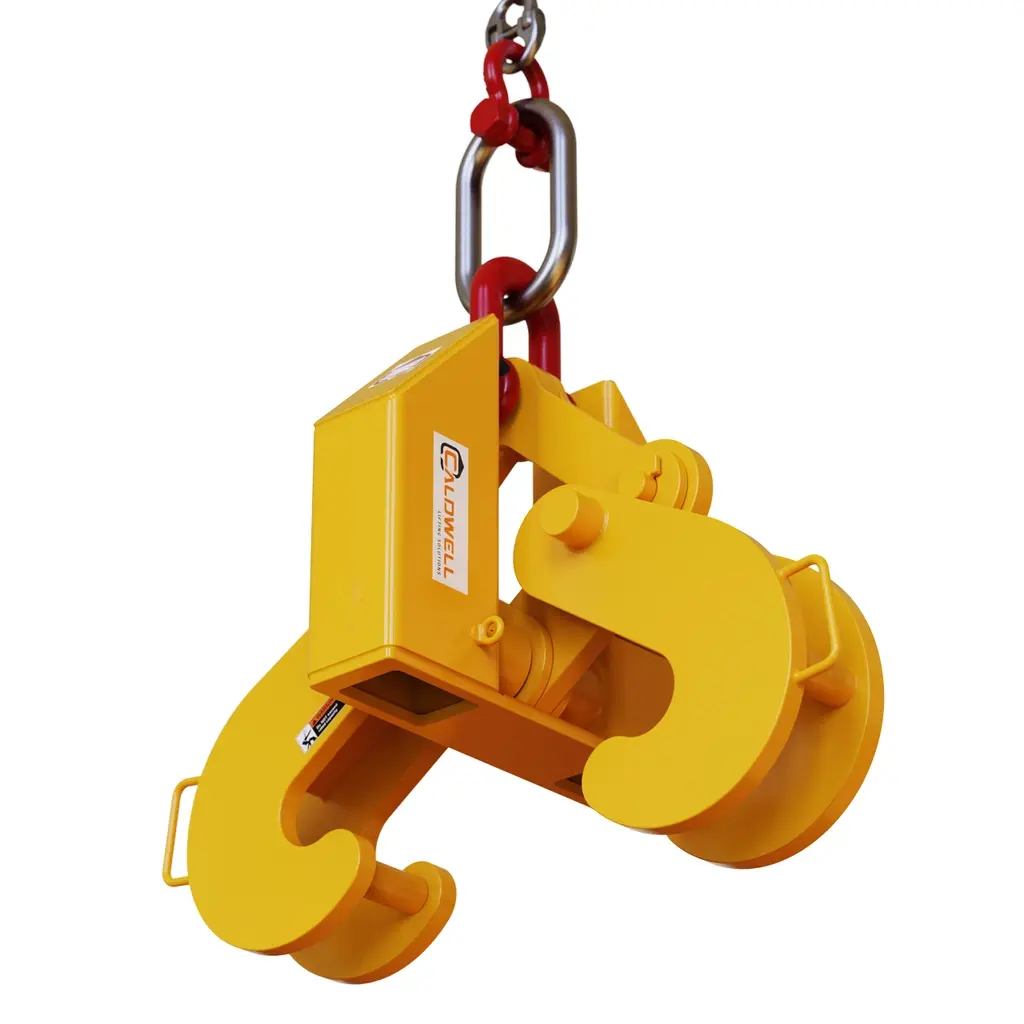

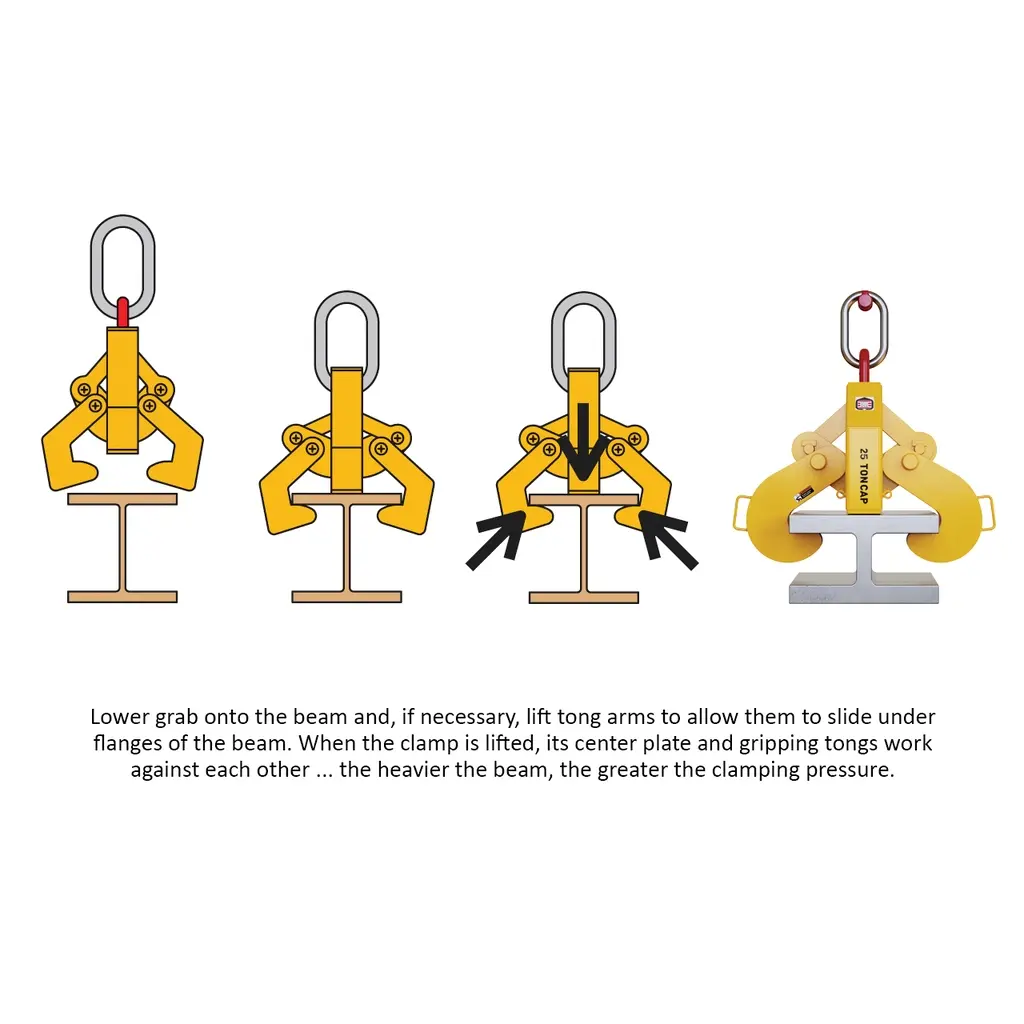

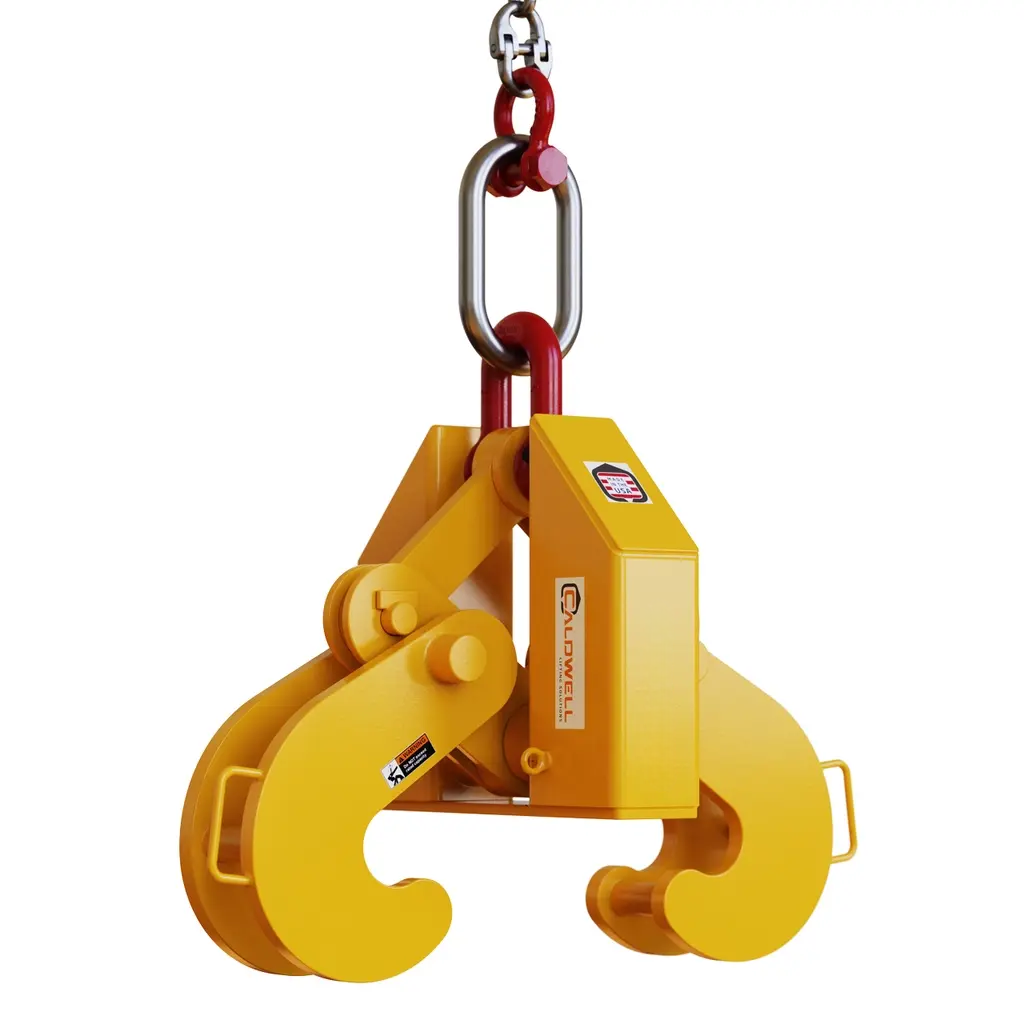

The Caldwell Model F Beam Clamp is a heavy-duty solution for lifting wide flange beam sections and plate girders. Built for durability and safety, this clamp eliminates the need for slings or chokers, saving both time and money on the job site. Featuring a recessed base to accept studs welded to a beam surface, the Model F is designed exclusively for vertical lifting. For longer beams or girders, units should be used in pairs along with a spreader/lifting beam. Manufactured to meet ASME standards, this clamp delivers reliable, safe, and efficient lifting performance. Need a custom configuration? Call us to build a clamp tailored to your exact lifting needs.
  • Model Number: F-15
  • Capacity: 15 tons
  • Max Width: 25.1 in
  • Max Flange Thickness: 2 in
  • Min Flange Thickness: 0.25 in
  • Headroom: 30.1 in
  • Weight: 210 lbs
  • Cut Out Length: 2.5 in
  • Cut Out Width: 4 in
  • Distance Between Cut Outs: 7.3 in
  • Inner Length: 4 in
  • Inner Width: 17.5 in
  • Max Flange Width: 17 in
  • Min Flange Width: 7 in
  • Wall Thickness 1: 0.9 in
  • Wall Thickness 2: 0.9 in
