Adjustable Spreader Beam – 6' to 10' Spread – 15 Ton - Model 32 – Caldwell

SKU: 34-3242
$3,745.00
Estimated Lead Time:

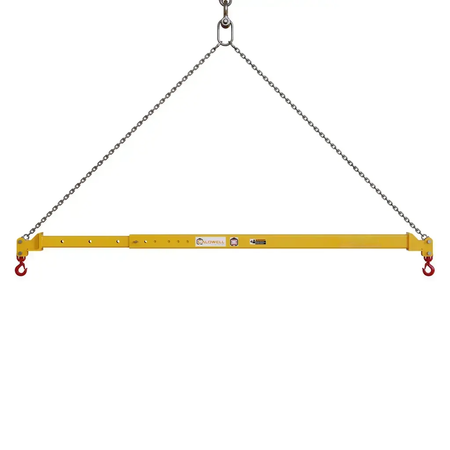

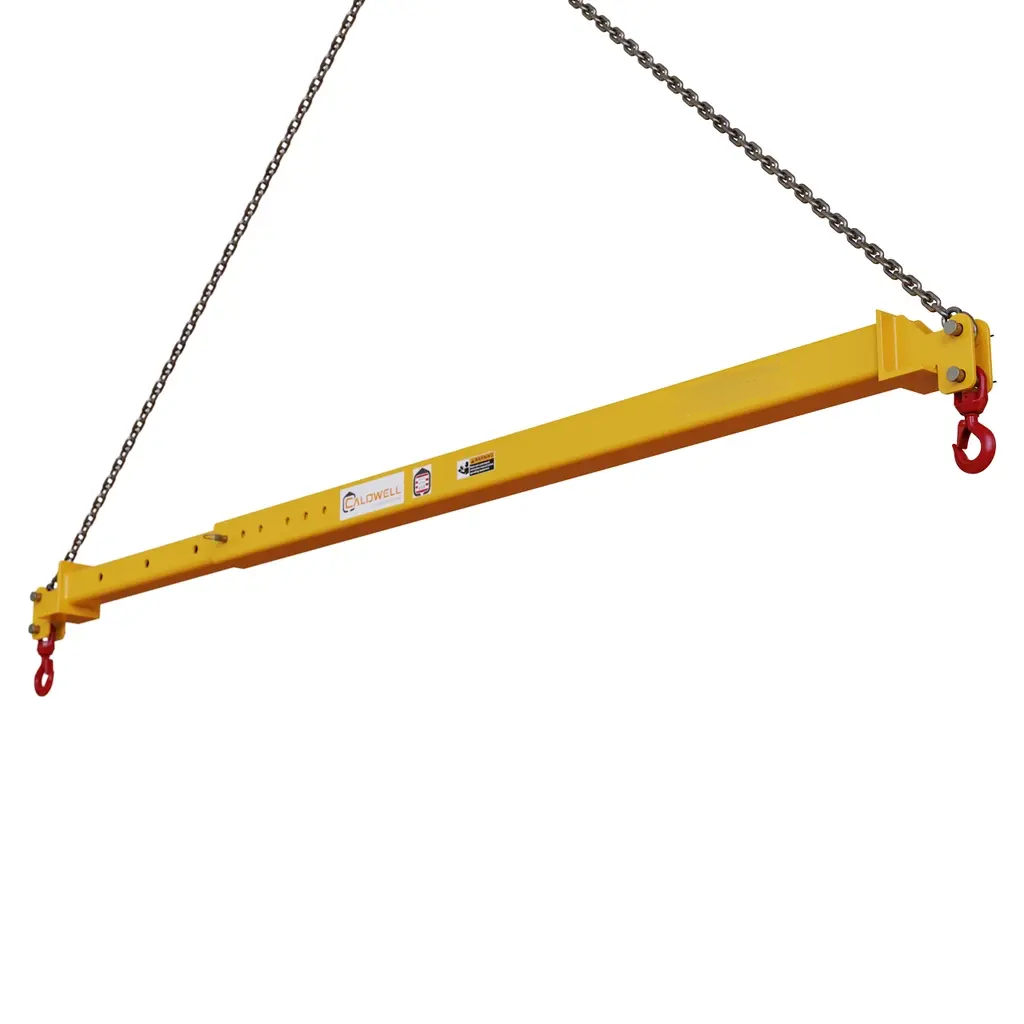

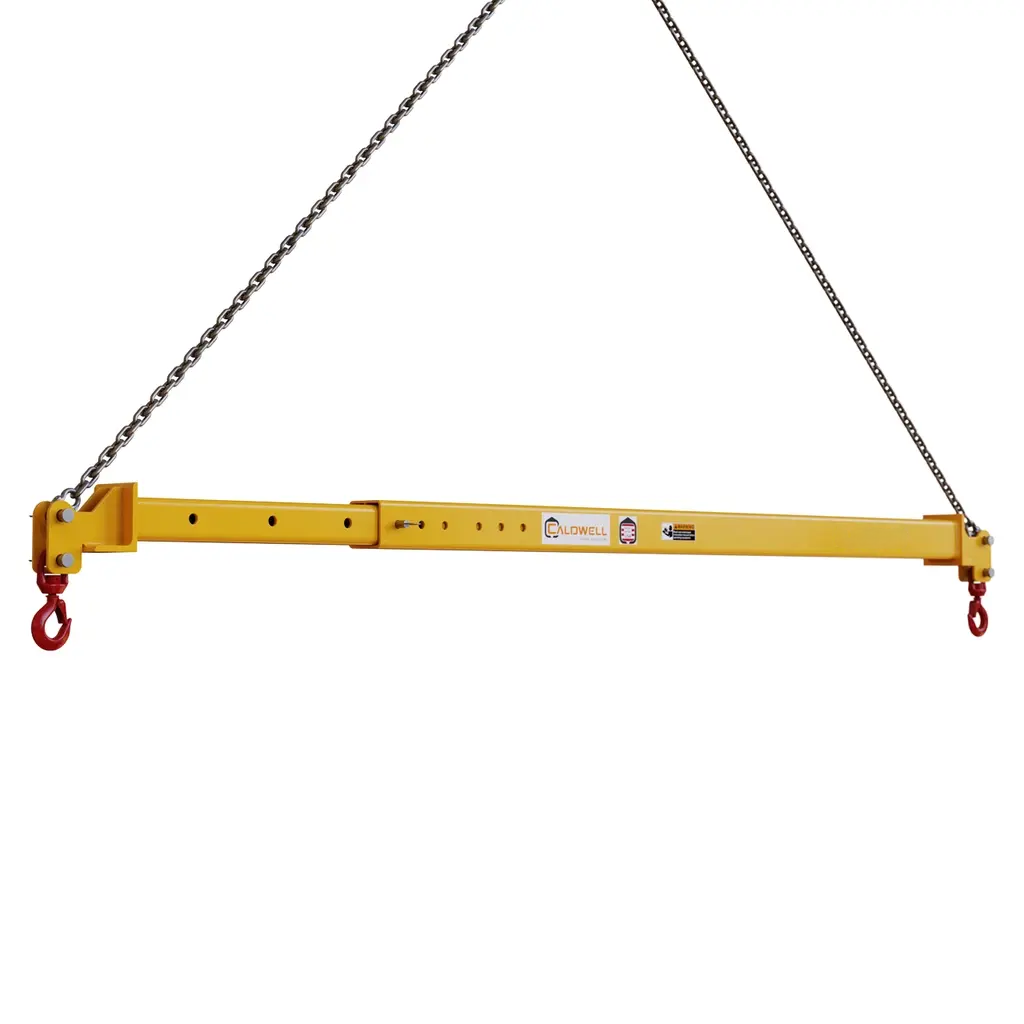

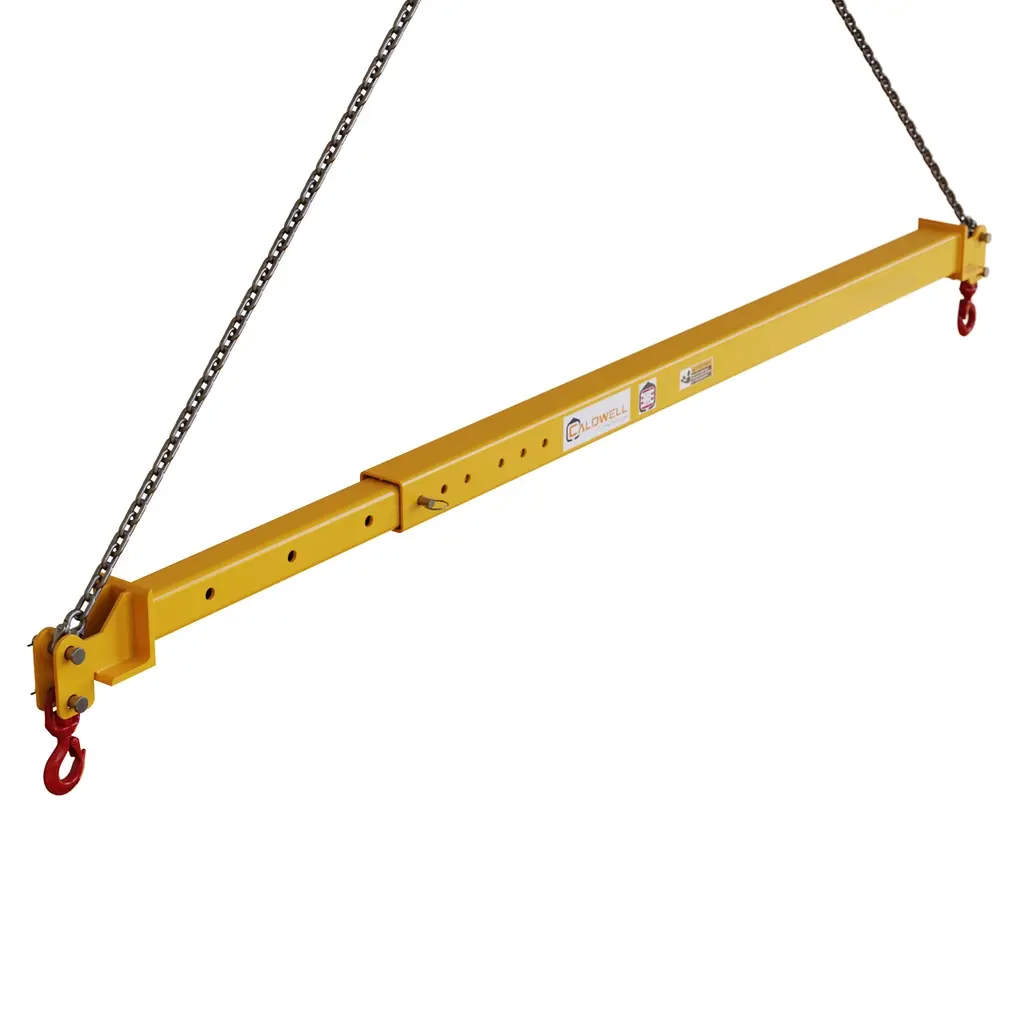

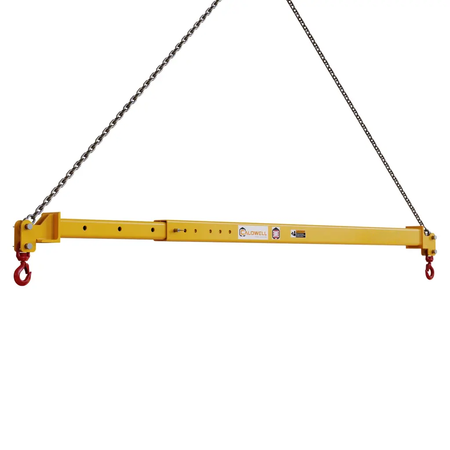

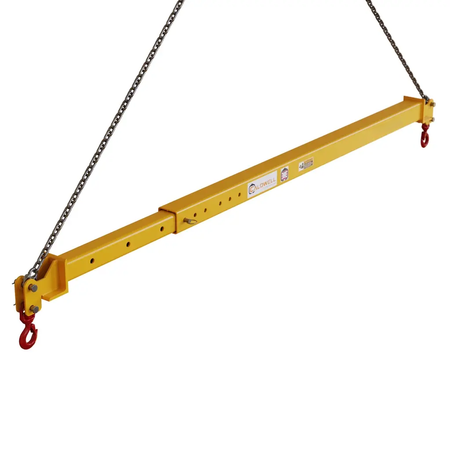

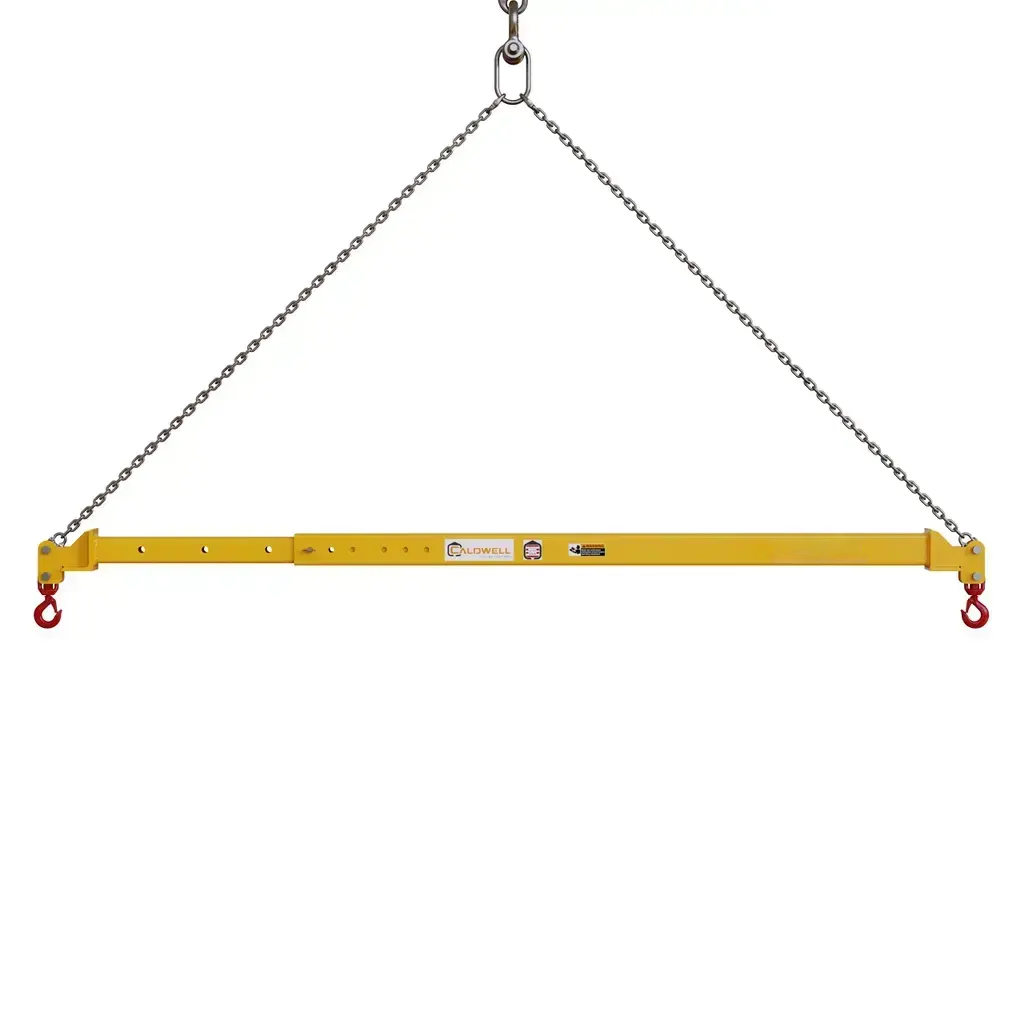

The Caldwell Model 32 Adjustable Spreader Beam with swivel hooks is designed for applications where headroom is not limited and added stability is required.

*Available with Chain or Wire Rope Rigging Upon Request*

Made in the USA

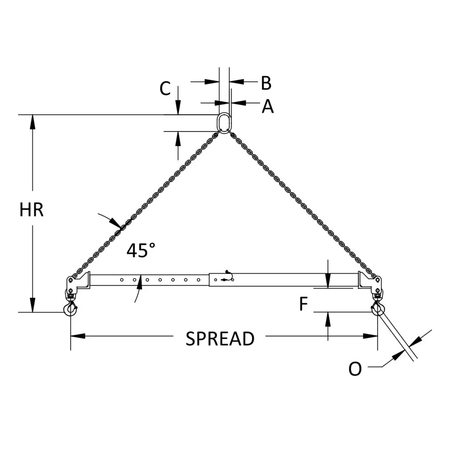

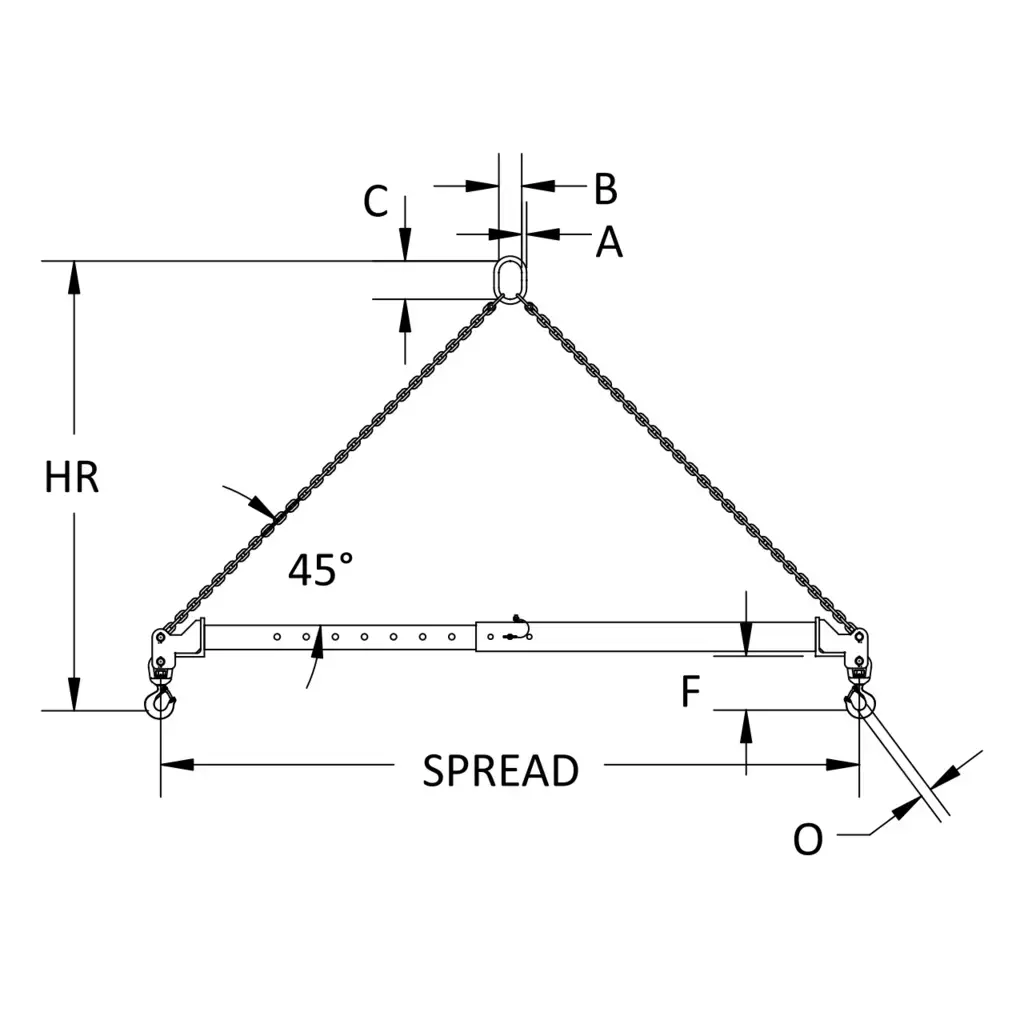

  • Model Number: 32-15-6/10
  • Capacity: 15 tons
  • Bail Oblong Diameter: 1.25 in
  • Bail Opening Width: 5.9 in
  • Bail Opening Height: 10.5 in
  • Headroom Max: 104 in
  • Headroom Min: 87 in
  • Hook Clearance: 13.6 in
  • Hook Opening With Latch: 2.22 in
  • Max Spread: 10 ft
  • Min Spread: 6 ft
  • Weight Beam Only: 365 lbs

Spec Sheet (PDF)
