12 ¾" Vertical Beam Anchor for Fixed Locations – 7535 – FallTech

SKU: 7535
$281.60
Estimated Lead Time:1 to 2 Days

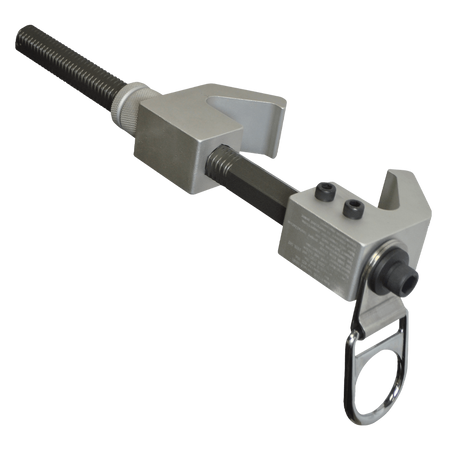

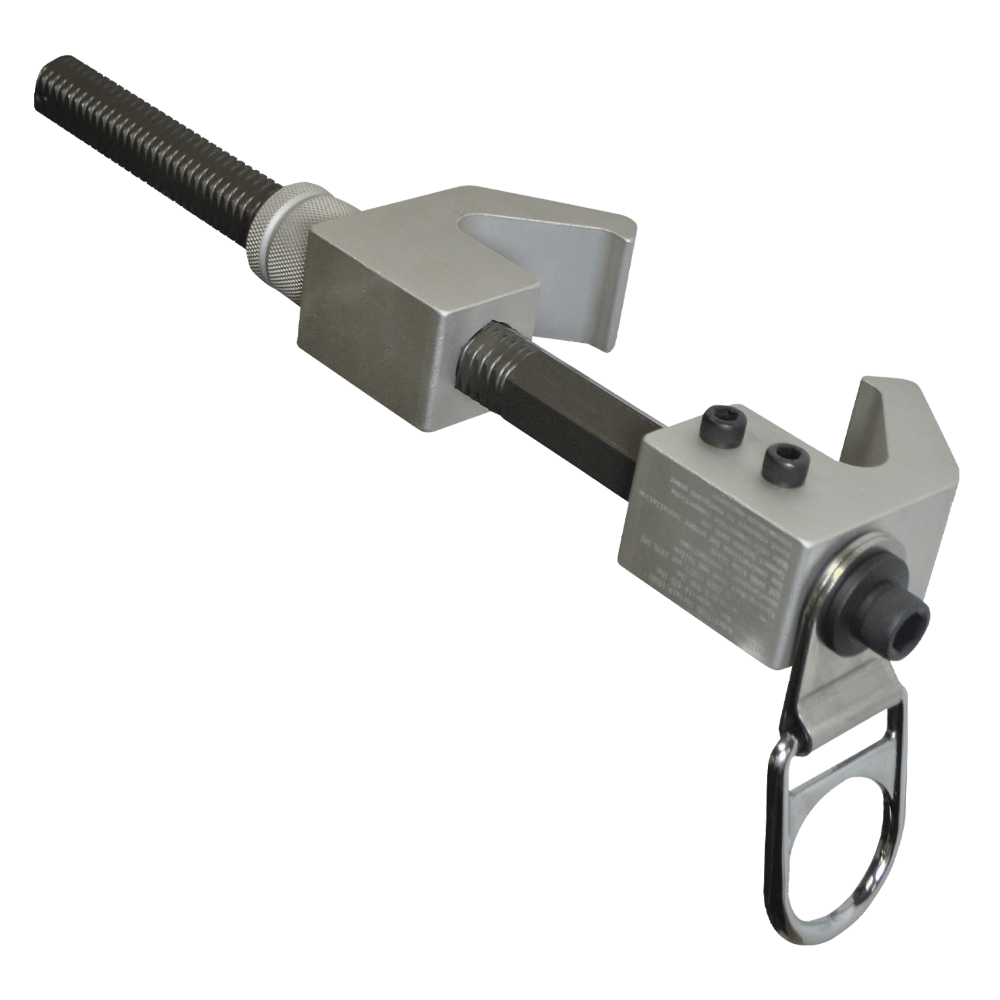

The FallTech 7535 Vertical Beam Anchor is designed for permanent installation on both vertical and horizontal I-beams. It features a threaded aluminum crossbar with adjustable jaws and knurled rings for precise positioning. The single-jaw adjustment design fits beam flanges from 4-1/2 inches to 12-3/4 inches wide and up to 2-1/4 inches thick.
  • Product Code: 7535
  • Beam Fit Range: 4.5 in to 12.75 in flange width; up to 2.25 in thickness
  • D-Ring: Plated alloy steel; 5,000 lb minimum static strength
  • Crossbar: Aluminum alloy
  • Clamp Jaws: Aluminum alloy
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
  • Weight: 7.6 lbs each

User Manual (PDF)
