12 ¼" Trailing Beam Anchor with Dual-Clamp Adjustment – 7533 – FallTech

SKU: 7533
$257.60
Estimated Lead Time:1 to 2 Days

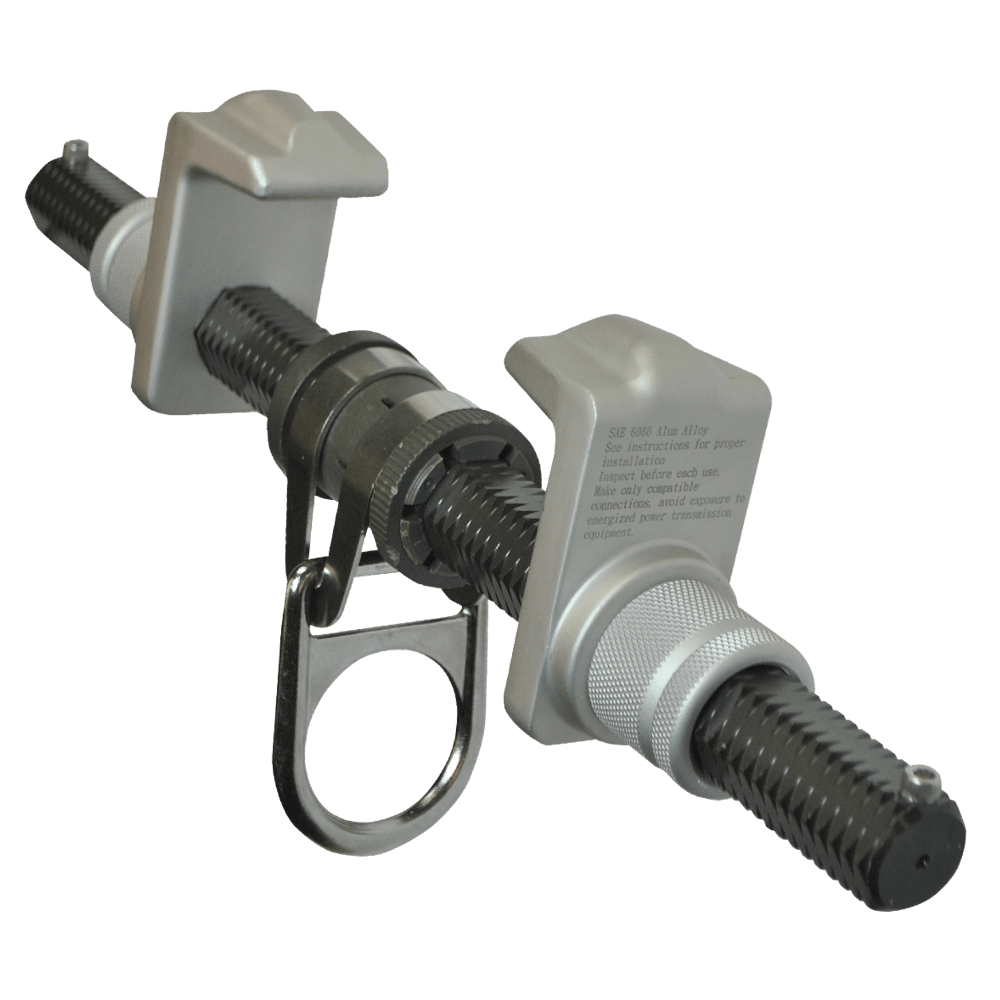

The FallTech 7533 Trailing Beam Anchor provides a mobile anchorage solution for horizontal I-beam applications. It features a threaded aluminum crossbar with adjustable jaws and knurled rings for precise positioning. Recessed under-jaw ball bearings enhance mobility along the beam, allowing smooth trailing performance. The anchor fits beam flanges from 3 inches to 12-1/4 inches wide and up to 1 inch thick.
  • Product Code: 7533
  • Beam Fit Range: 3 in to 12.25 in flange width; up to 1 in thickness
  • D-Ring: Plated alloy steel; 5,000 lb minimum static strength
  • Crossbar: Aluminum alloy
  • Clamp Jaws: Aluminum alloy
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
  • Weight: 5.8 lbs

User Manual (PDF)
