11' Confined Space Tripod System with 60' Stainless Steel SRL-R & Personnel Winch – 7504S – FallTech

SKU: 7504S
Regular price $4,612.00
Estimated Lead Time:3 to 5 Days

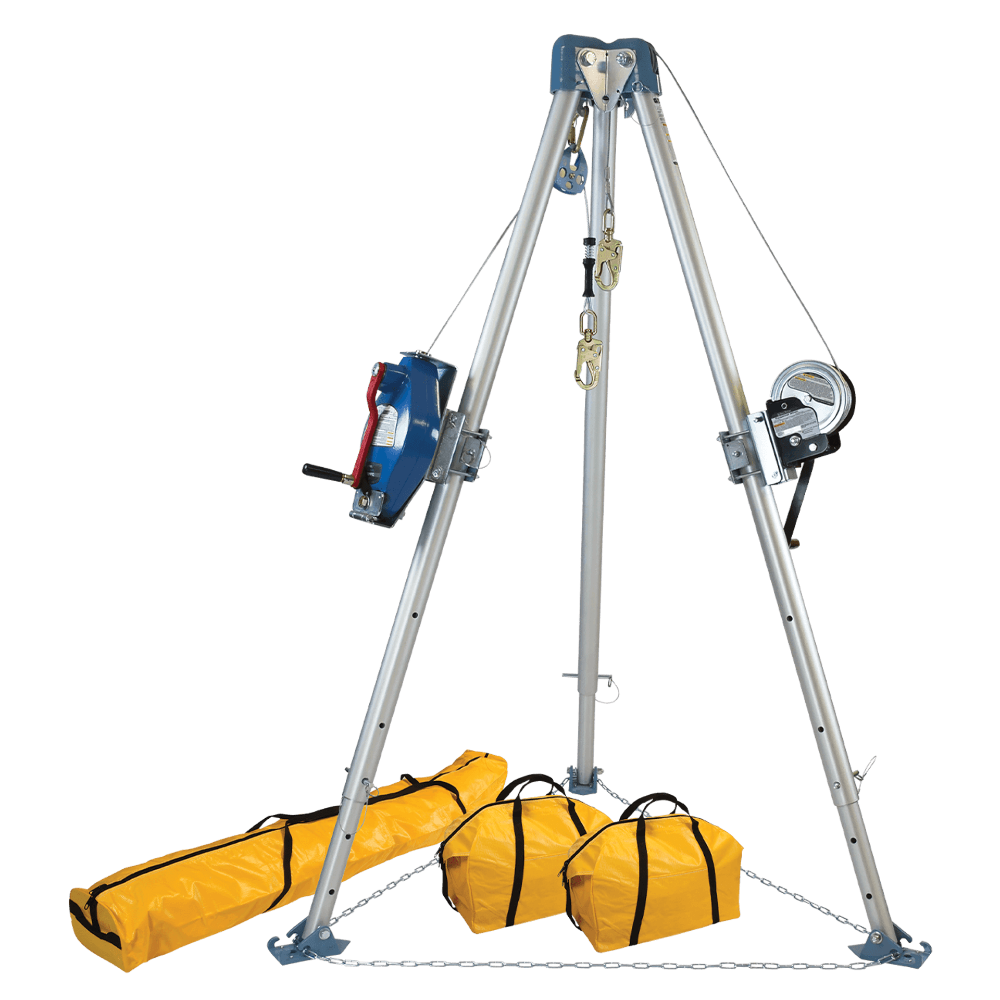

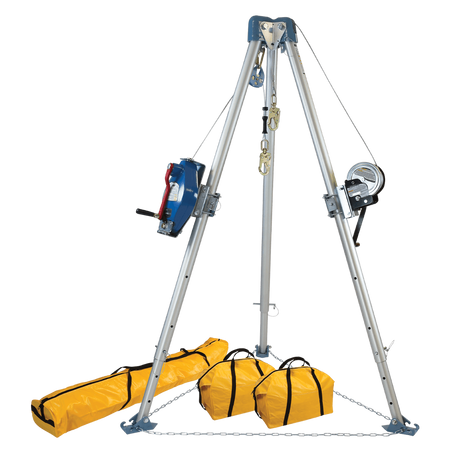

The FallTech 7504S Confined Space Tripod System is a complete entry, retrieval, and rescue package designed for demanding confined space operations. This system includes the 7275 aluminum tripod, the 7281S 60-foot stainless steel 3-way SRL-R, and the 7297S personnel winch, along with dedicated leg brackets and a leg safety chain. The tripod features rugged 2-stage telescoping aluminum legs, offering an adjustable height range from 6 to 11 feet, and includes an integrated pulley with head plate eye-holes for optional secondary pulleys. The SRL-R delivers self-retracting lifeline performance combined with emergency retrieval capability, while the personnel winch provides controlled lifting and lowering for worker entry and exit. The kit includes an 80-inch tripod storage bag and two 20-inch device bags. Compliance, material specifications, and performance ratings correspond to each component’s individual ANSI and OSHA certifications.

  • Product Code: 7504S
  • Tripod Height Range: 6 ft – 11 ft
  • Included SRL-R: 60 ft stainless steel cable (Model 7281S)
  • Included Winch: Personnel winch (Model 7297S)
  • System Components: Tripod 7275, SRL-R 7281S, Winch 7297S, leg brackets, safety chain
  • Construction: Aluminum tripod; stainless steel cable SRL-R; mechanical personnel winch
  • Included Bags: 80" tripod bag + two 20" device bags
  • Compliance: Refer to components (ANSI/OSHA)
  • Weight: 152 lbs
