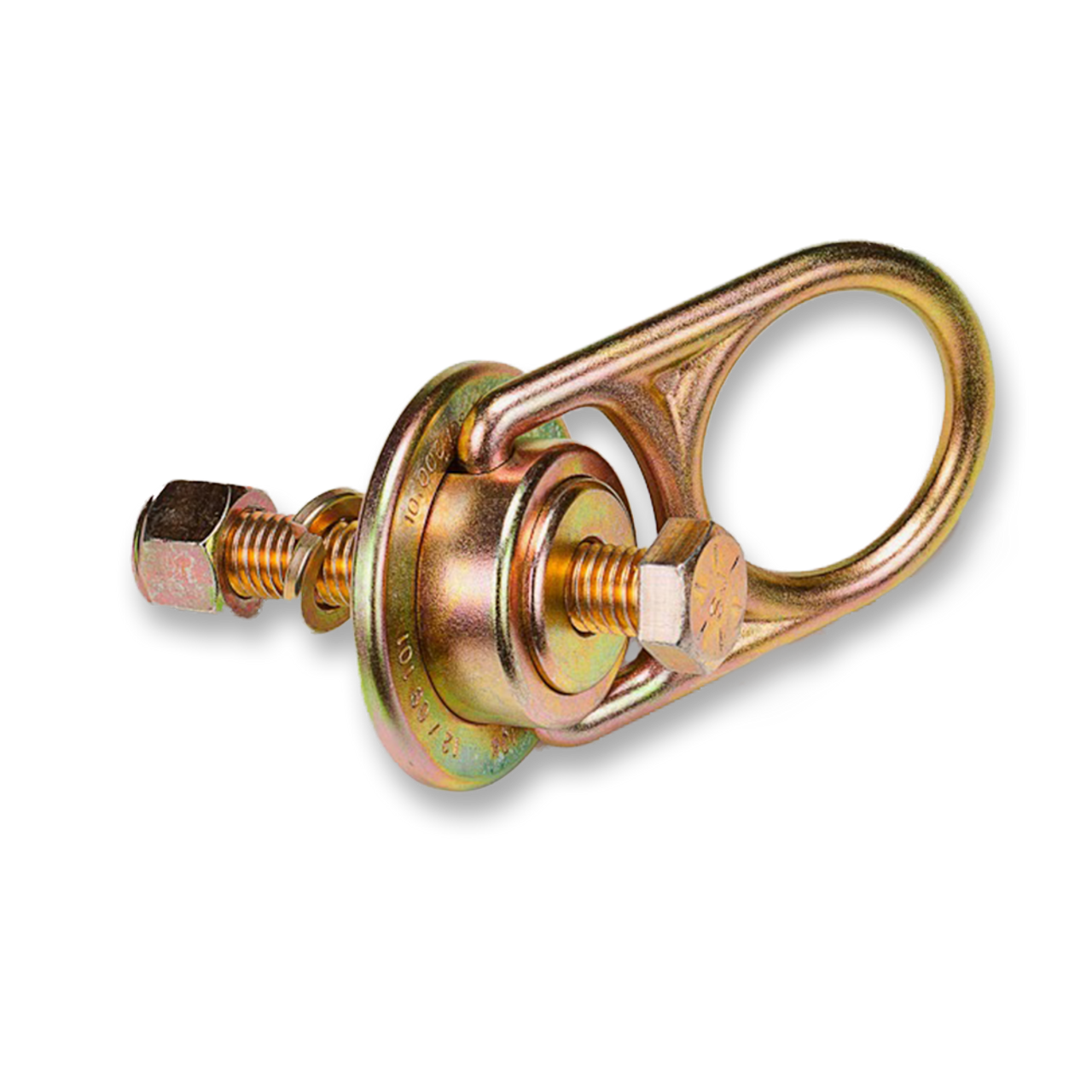

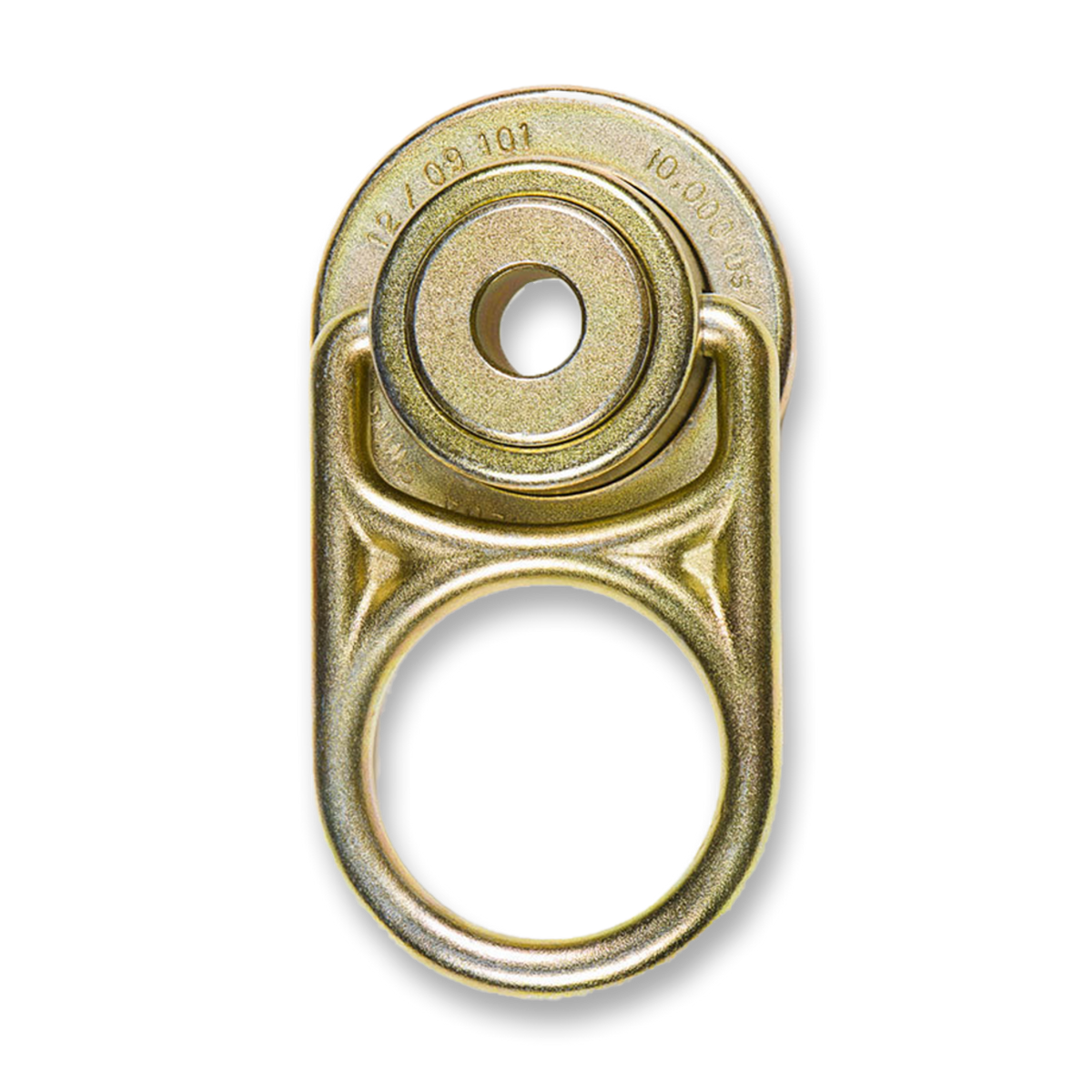

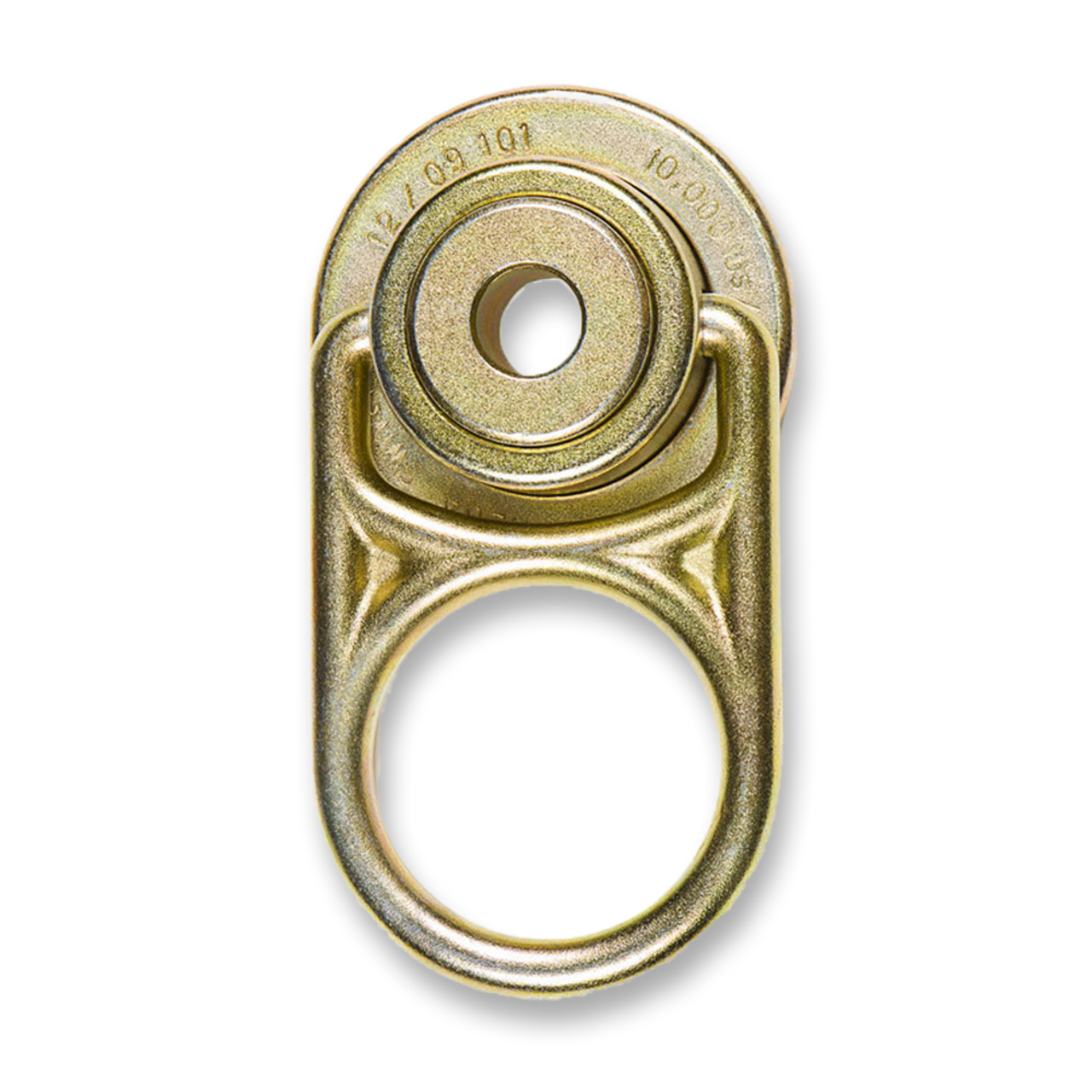

MEGA Swivel 10K Steel Yellow Zinc Plated Anchor Swivel 5/8" - Swivel Only - STM10K-SA - Frontline

SKU: STM10K-SA
Regular price $65.99
Estimated Lead Time:1 to 2 Days

The Frontline STM10K-SA 10K Swivel Anchor delivers superior performance and versatility for both concrete and steel applications. This anchor features a unique swivel ring design that allows the D-ring to rotate 360° and pivot 180°, enhancing user mobility and reducing the risk of side loading or disengagement.

Crafted from heavy gauge, heat-treated alloy steel with a yellow zinc-plated finish, the anchor offers exceptional strength and durability. Its patent-pending key lock design ensures the D-ring remains securely seated in the swivel housing under load. Ideal for rescue, tie-back, hoisting, and lifting applications, this component is compatible with multiple installation kits to suit different job site needs.

  • tensile strength: 10,000 lbf / 44 kN
  • working load: 2,000 lbs
  • single user maximum capacity: 310 lbs
  • anchor weight: 1.2 lbs
  • 360° rotation and 180° pivot for enhanced mobility
  • heat-treated alloy steel with yellow zinc plating

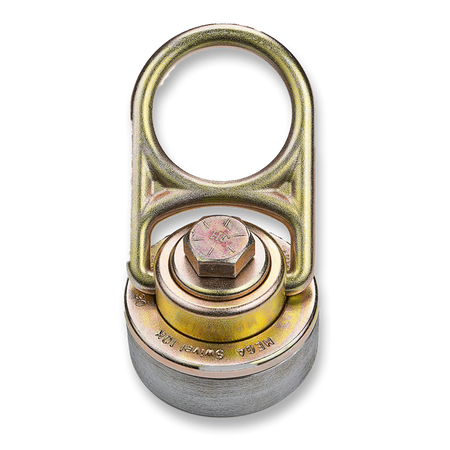

  • anchor swivel only; bolts and weld-on puck sold separately

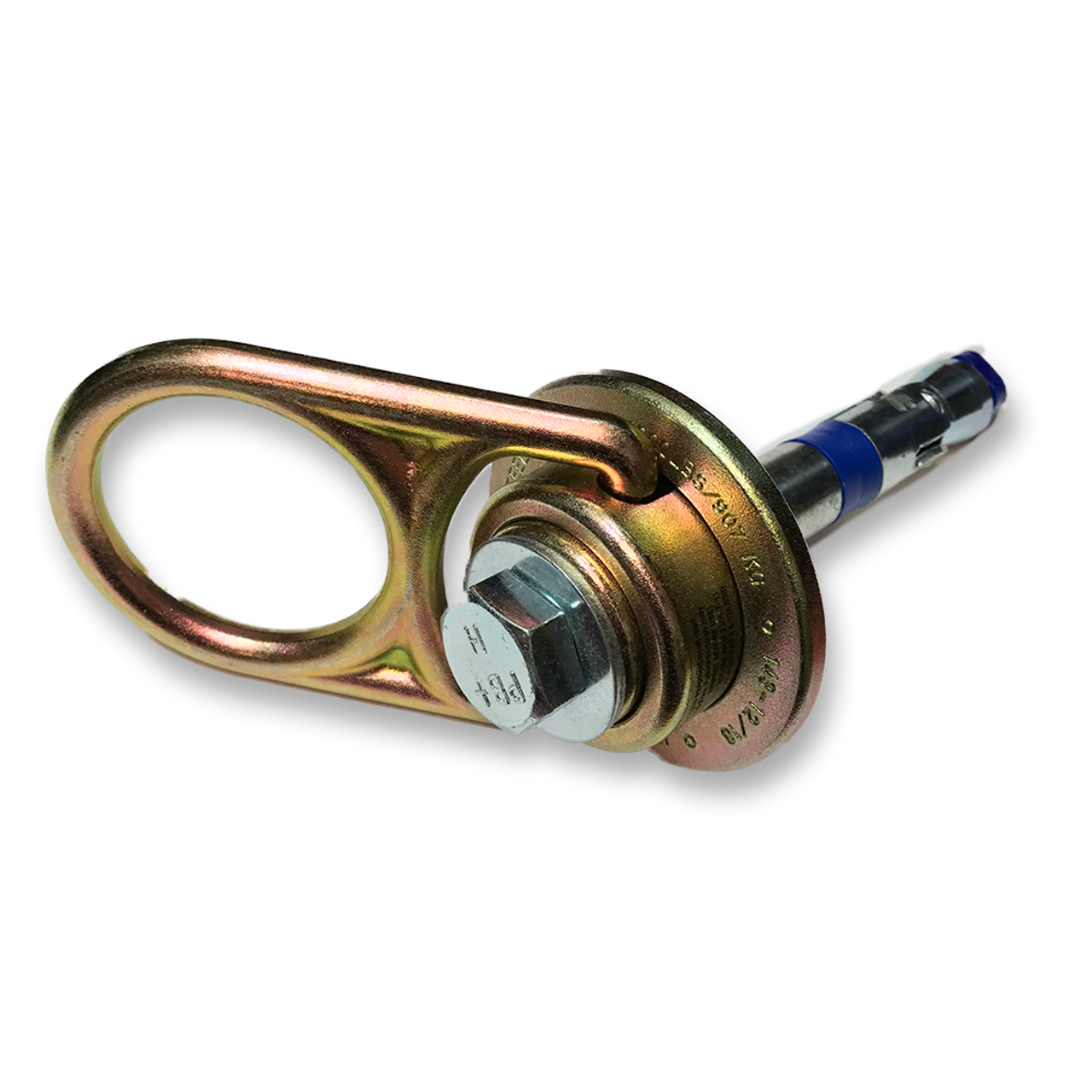

  • compatible with concrete and steel installations
  • meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1926.502, OSHA 1910.66 standards
