10k Steel Anchor with Weld-on Puck - STMP10K-WO + STM10K-SA MEGA Swivel - Frontline

SKU: STMP10K-WO+STM10K-SA
$124.99
Estimated Lead Time:1 to 2 Days

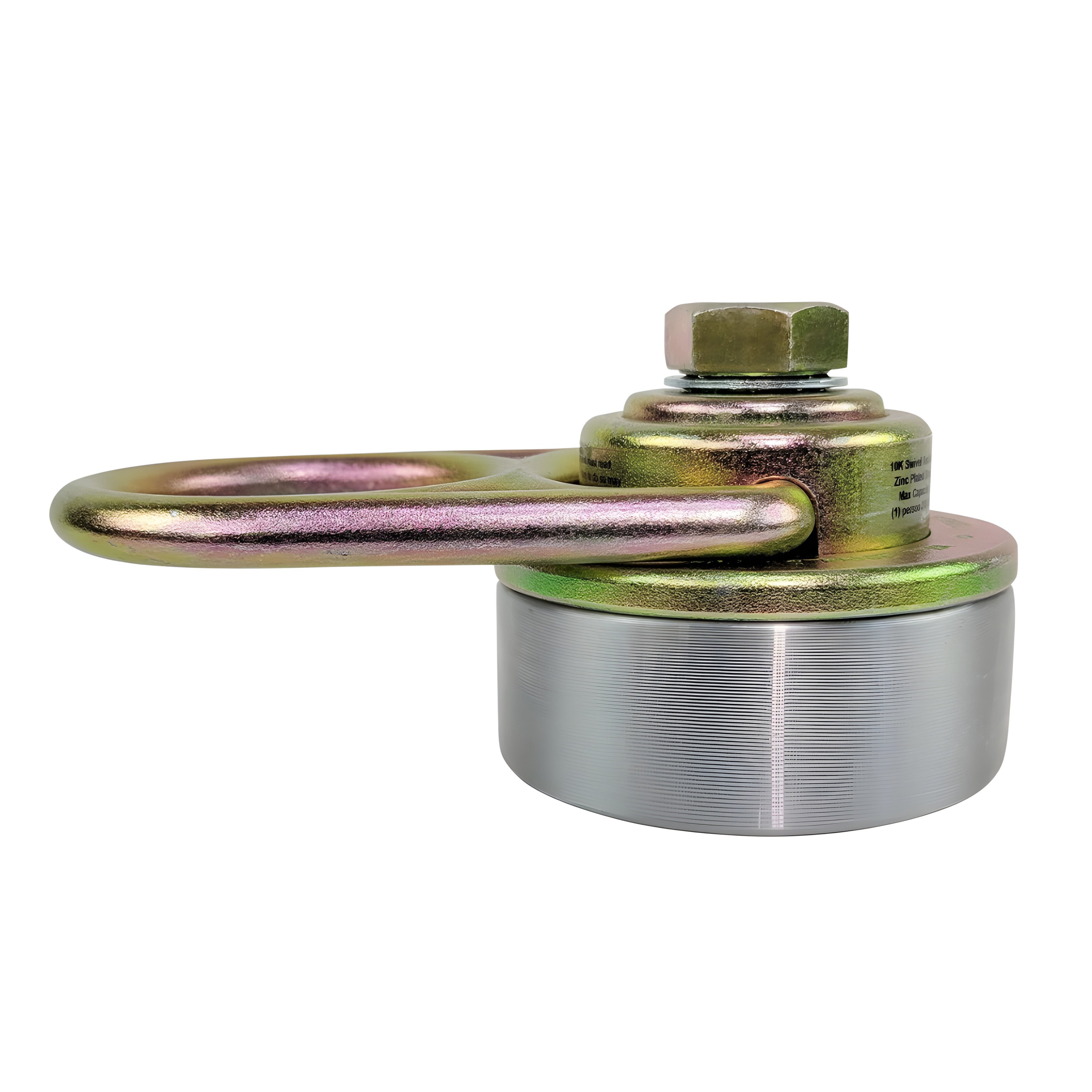

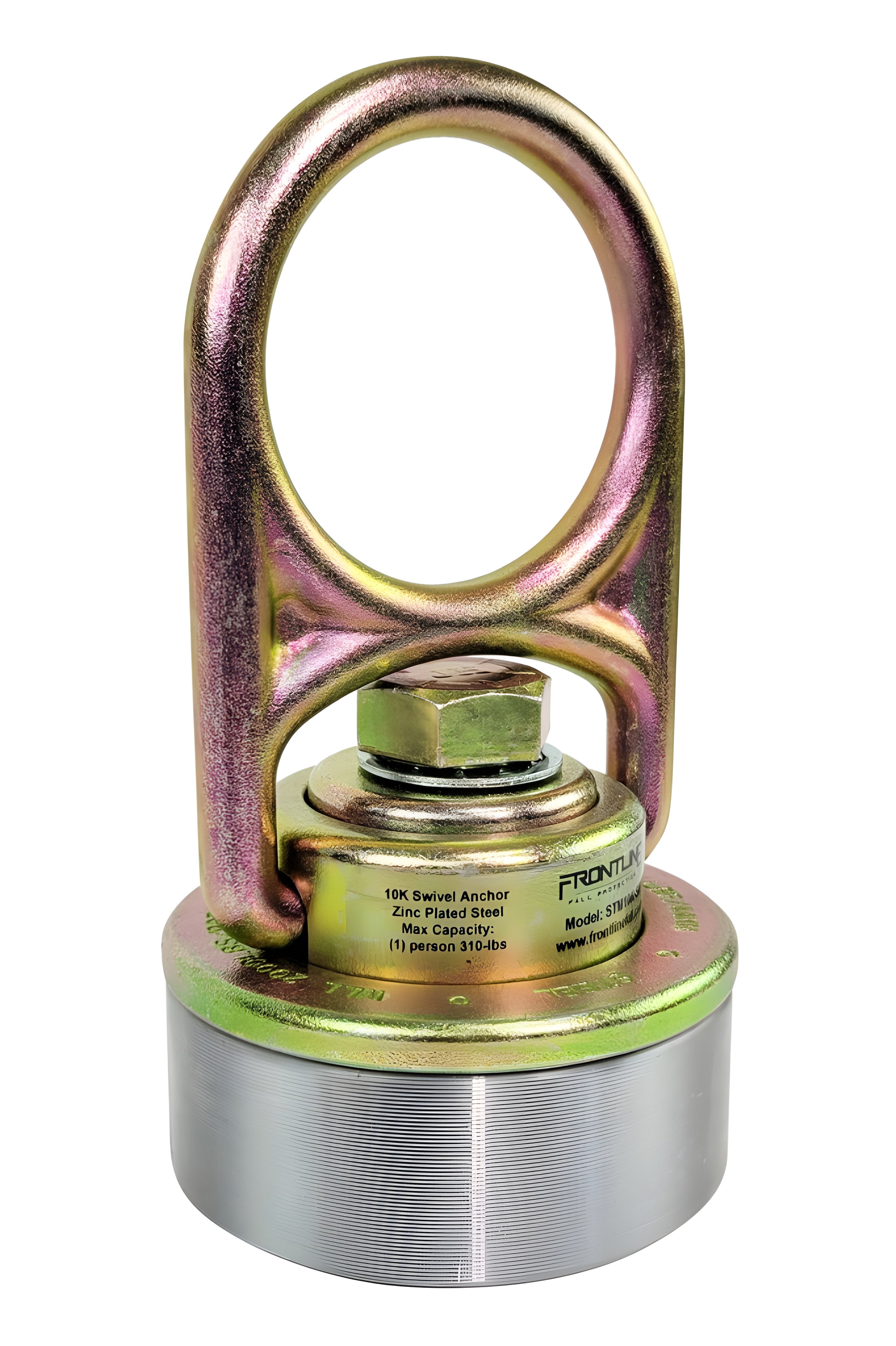

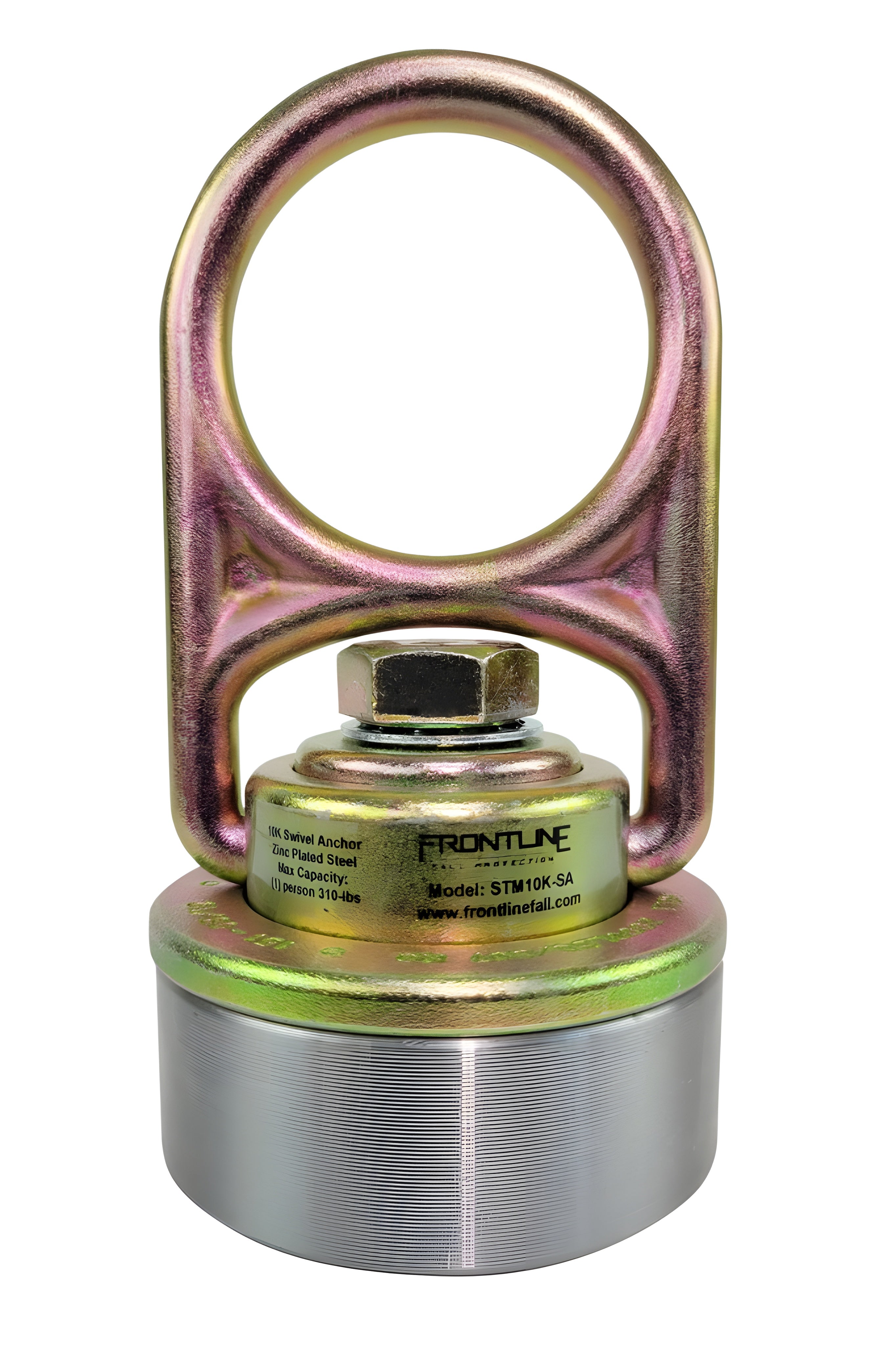

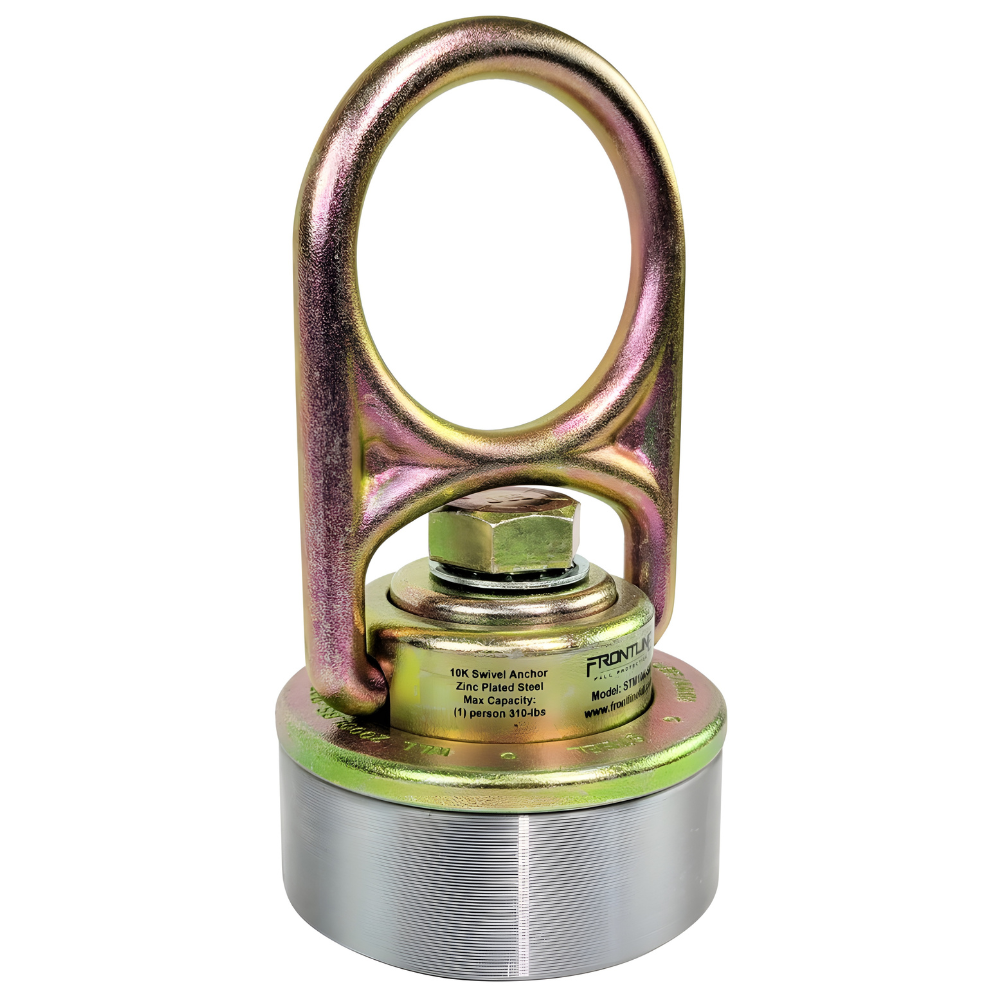

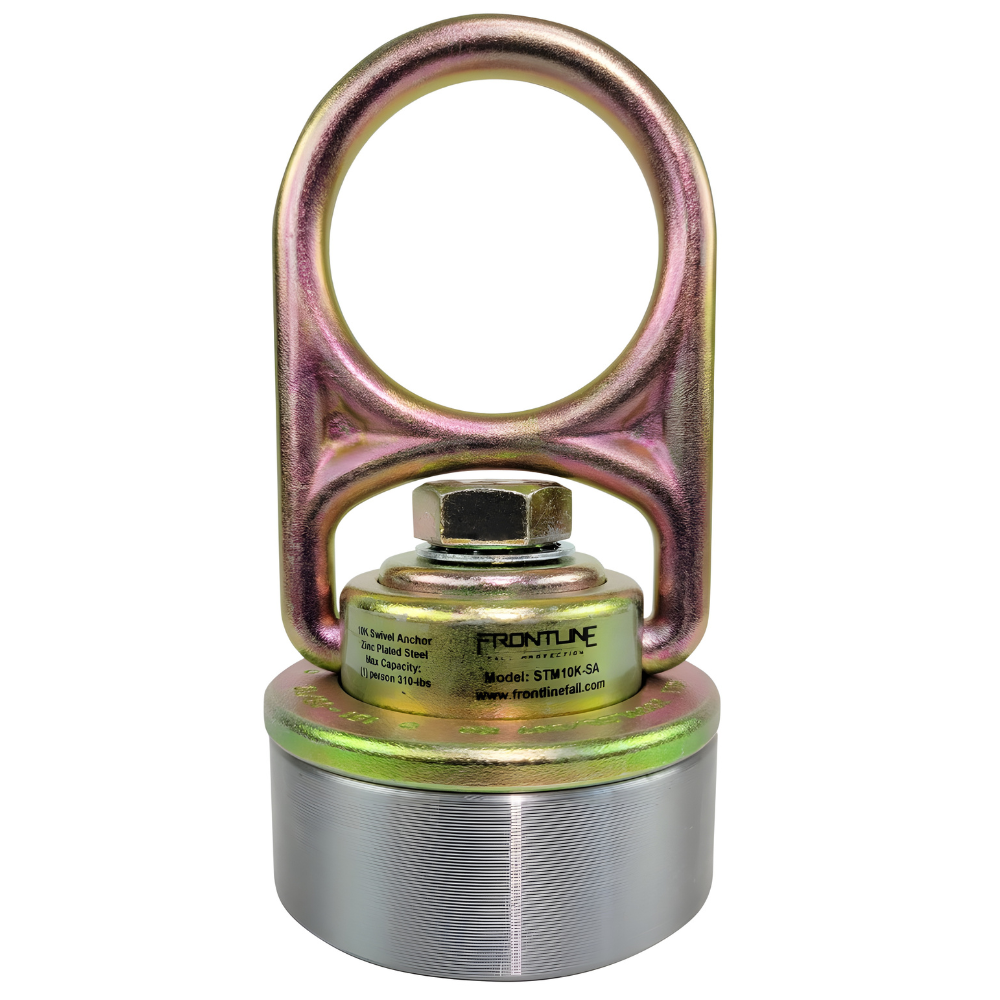

The Frontline STMP10K-WO + STM10K-SA MEGA Swivel Anchor delivers superior strength and versatility for steel anchorage applications. Featuring a revolutionary swivel ring design, this anchor allows 360° rotation and 180° pivoting to maximize user mobility and reduce the risk of side loading or accidental disengagement.

Constructed from heavy gauge, heat-treated alloy steel with a reinforced bridge and patent-pending key lock design, the anchor remains securely seated in its swivel housing under heavy loads. The included weld-on puck provides a reliable mount for permanent or temporary installations on steel structures.

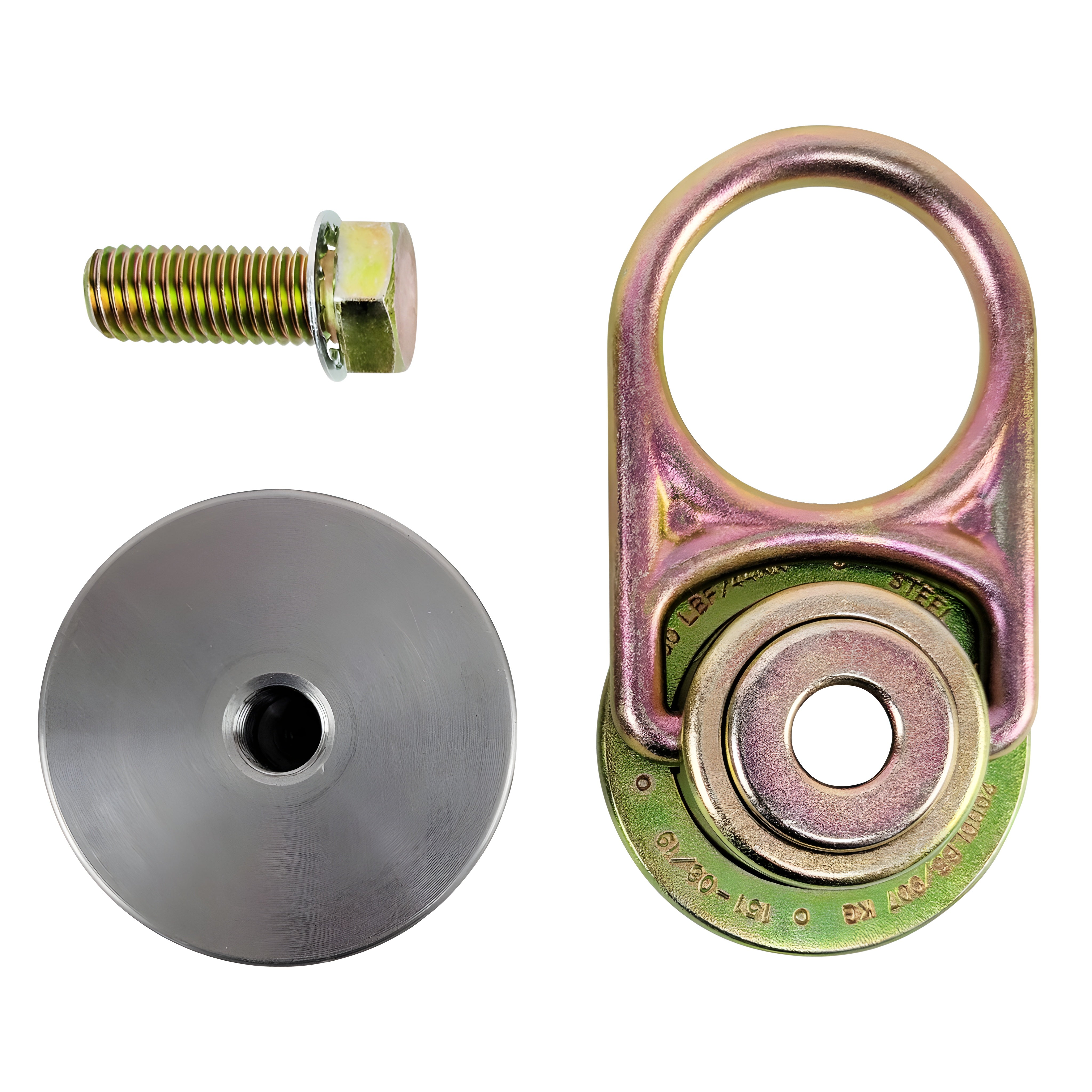

The kit comes complete with a 3" x 1" mild steel puck, Grade 8 bolt, nut, and internal lock washer, ensuring dependable, job-ready performance for single-user anchoring or integration into temporary horizontal lifeline systems.
  • Tensile strength: 10,000 lbs
  • ANSI max user capacity: 130 to 310 lbs
  • OSHA max user capacity: 130 to 425 lbs

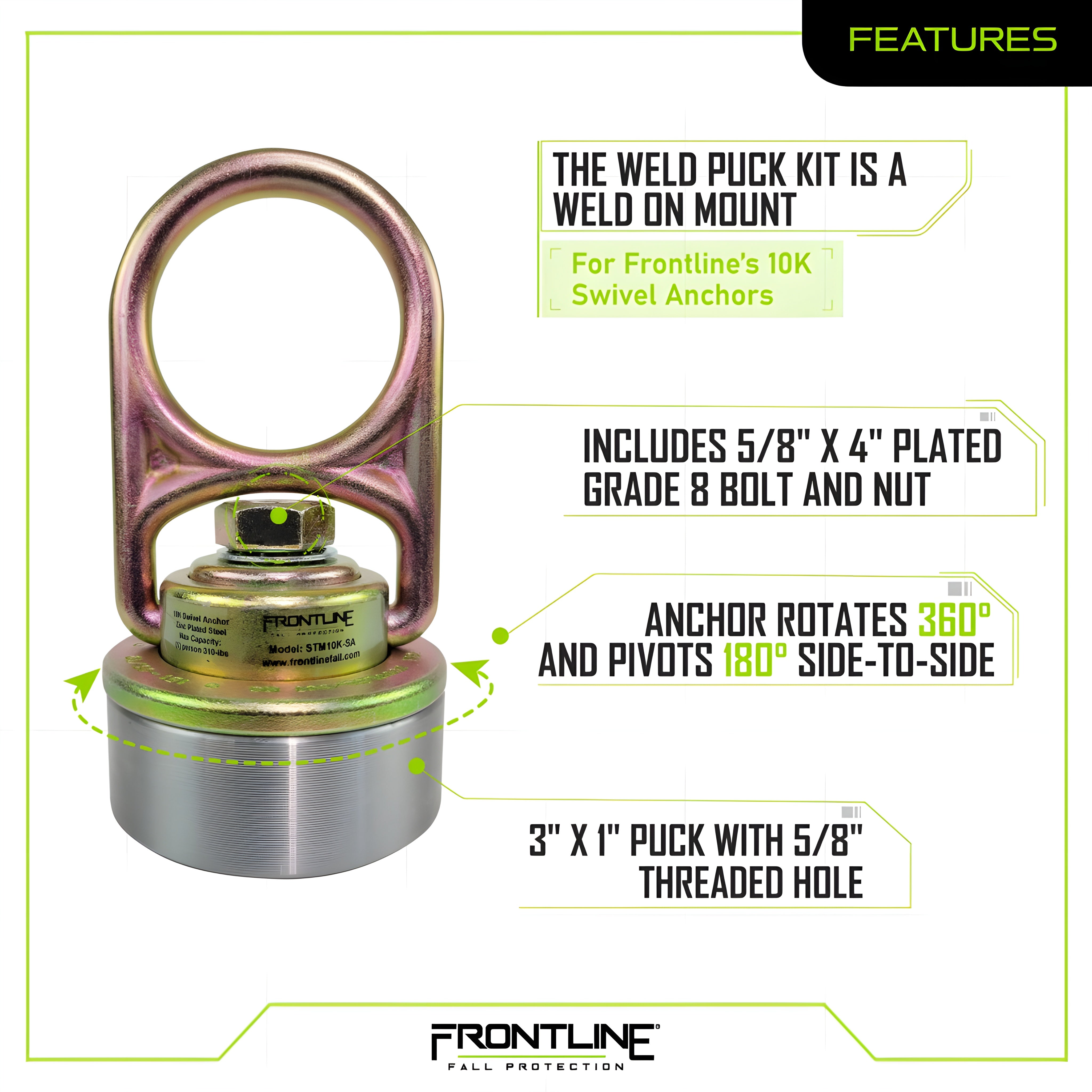

  • Anchor rotates 360° and pivots 180° for improved mobility
  • Heavy gauge heat-treated alloy steel construction
  • Reinforced bridge and D-ring with locking caps
  • Patent-pending key lock design prevents D-ring disengagement

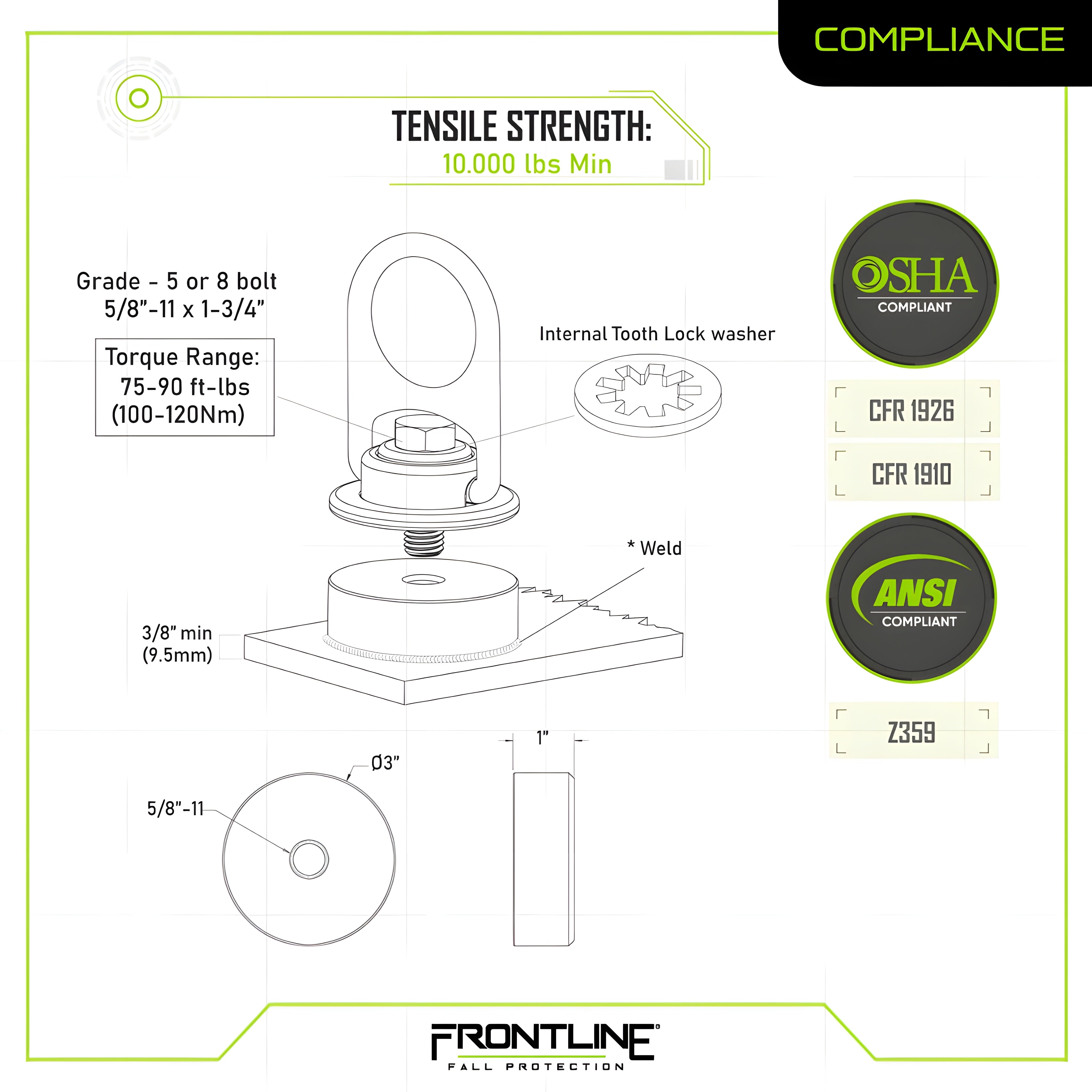

  • Includes 3" x 1" puck with 5/8" threaded hole
  • Includes 5/8" x 4" plated Grade 8 bolt and nut

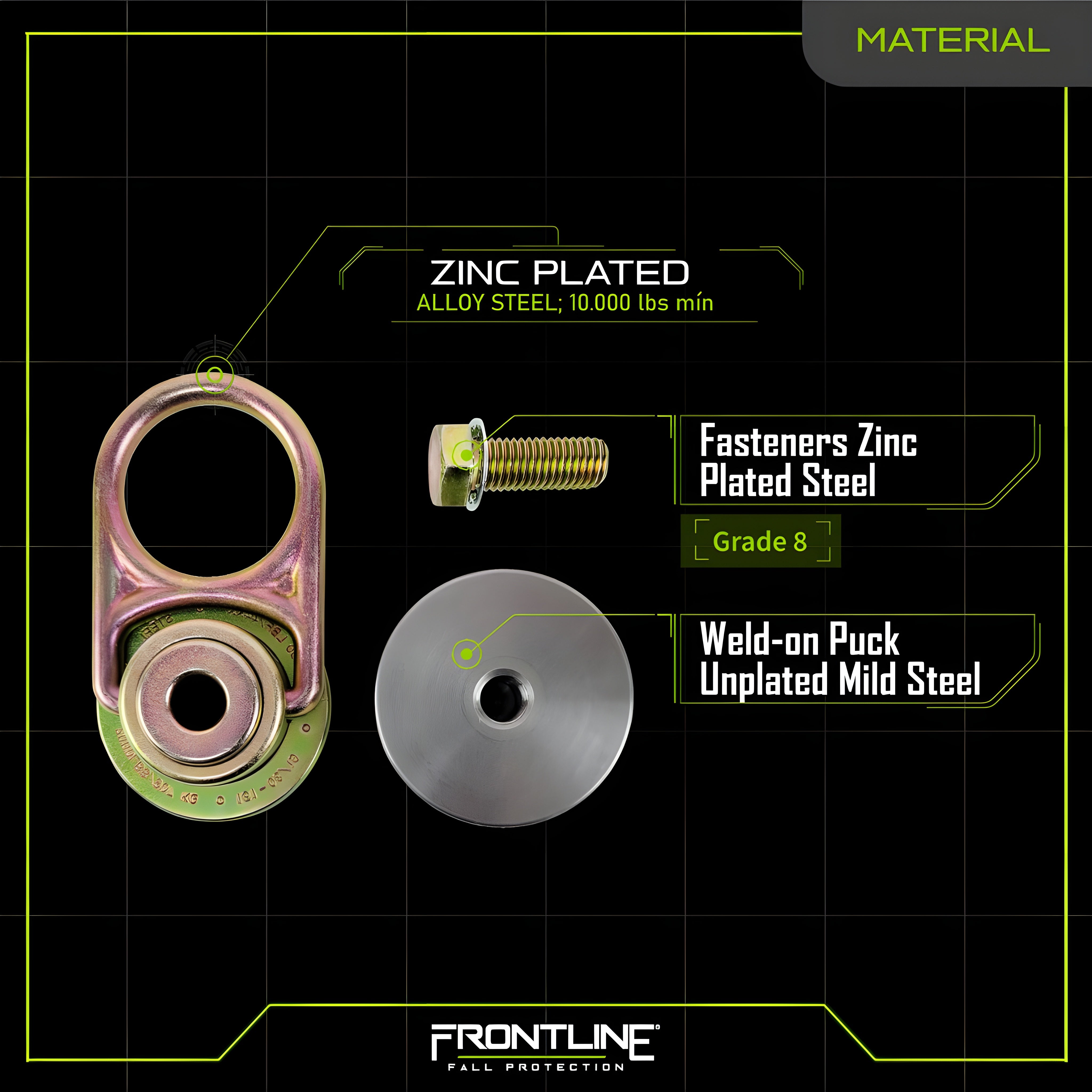

  • Weld-on puck made of unplated mild steel
  • Fasteners zinc plated, Grade 8 steel
  • Suitable for permanent or temporary steel applications
  • Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1926.502, OSHA 1910.66 standards
