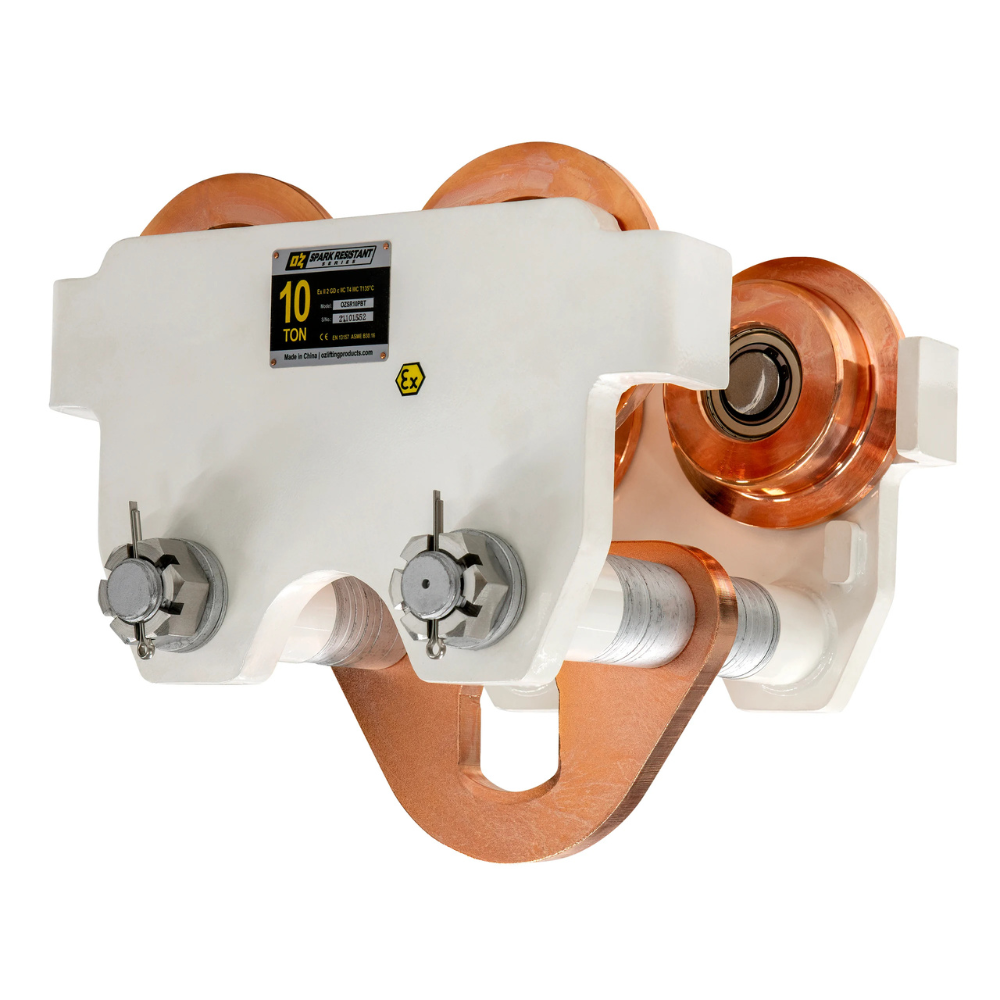

10 ton Push Trolley - Spark Resistant - OZ Lifting

SKU: OZSR10PBT
$3,923.21
Estimated Lead Time:3 to 5 Days

For the most demanding explosive environments, the Spark Resistant Push Beam Trolley (10T) by OZ Lifting Products offers unmatched safety and reliability. It meets rigorous EU standards, including ATEX94/9/EC and Machinery Directive 2006/42/EC, with an explosion-proof rating of EX II2 GD c IIIC T135°C. With a 10-ton capacity, it is designed for use in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas. This high-capacity trolley ensures robust performance and safety for heavy material handling in critical industrial applications.
  • Capacity: 20000 lbs.
  • Flange Widths up to 12"
  • 7.48" Headroom
  • 6.56' Min. Beam Radius
  • Anti-spark coating
  • Copper-plated wheels and bail
  • Copper-riveted ID tags
  • Fits to most I-, S-, and W-Beams
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Individual serial number and test certificate

Data Sheet (pdf)
