Adjustable Spreader Beam – 4' to 6' Spread – 10 Ton - Model 32 – Caldwell

SKU: 34-3231
$2,629.00
Estimated Lead Time:

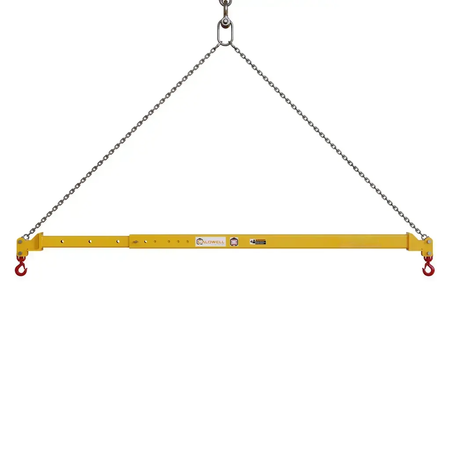

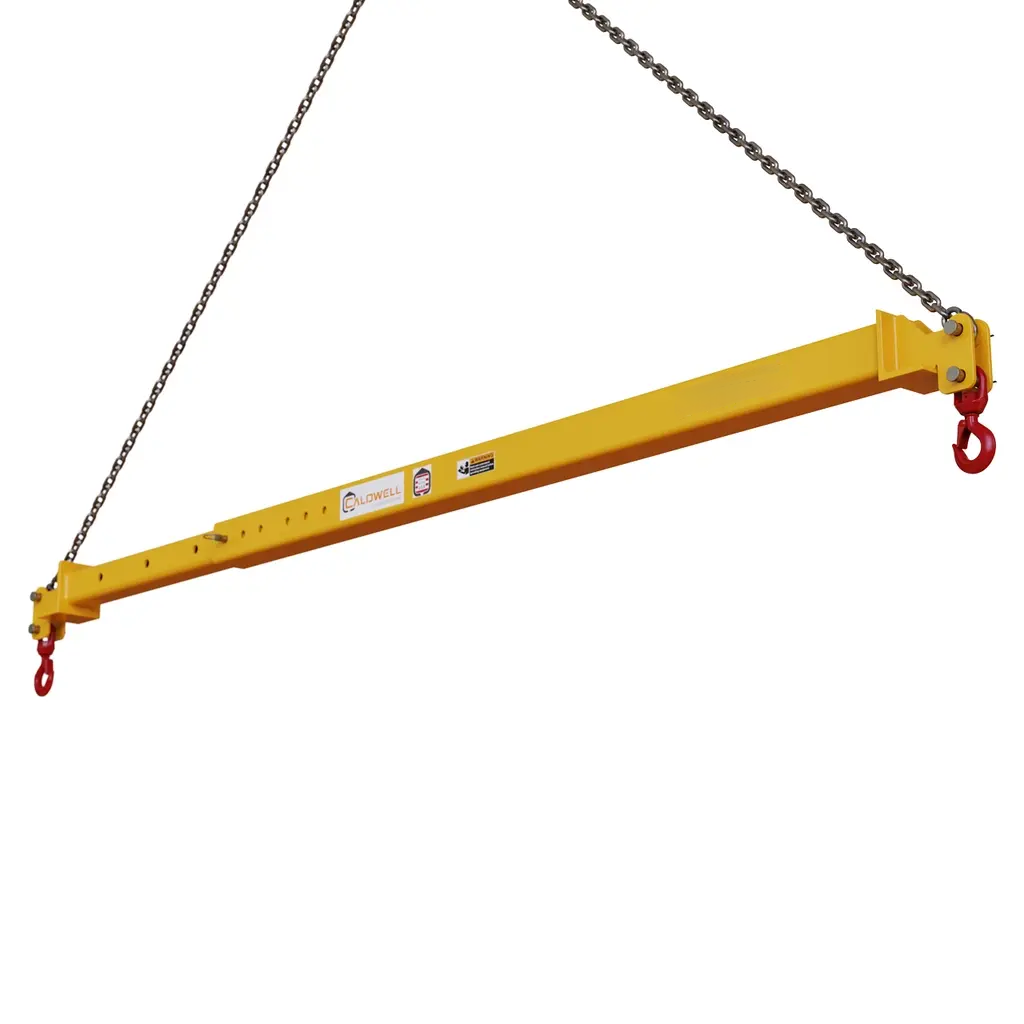

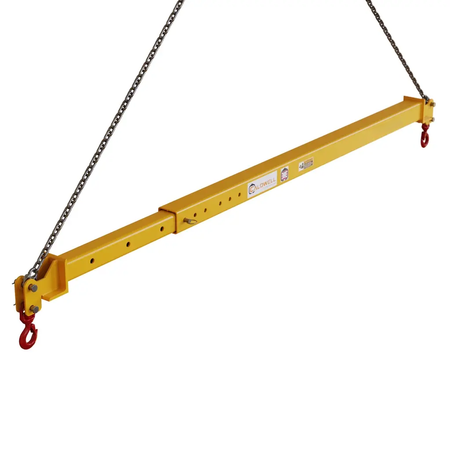

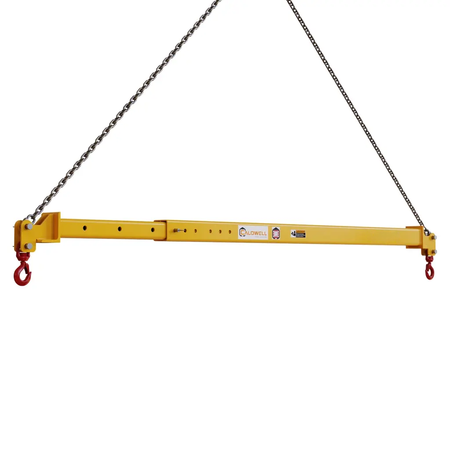

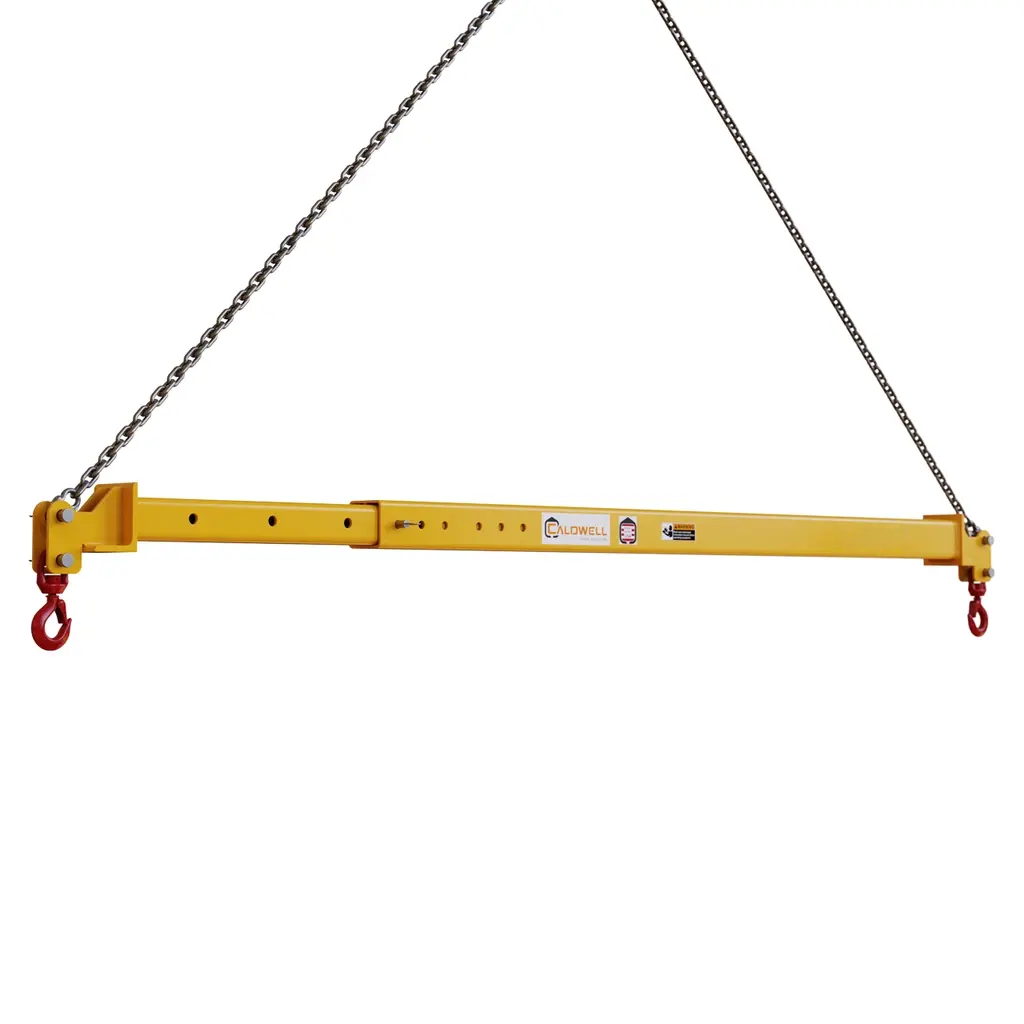

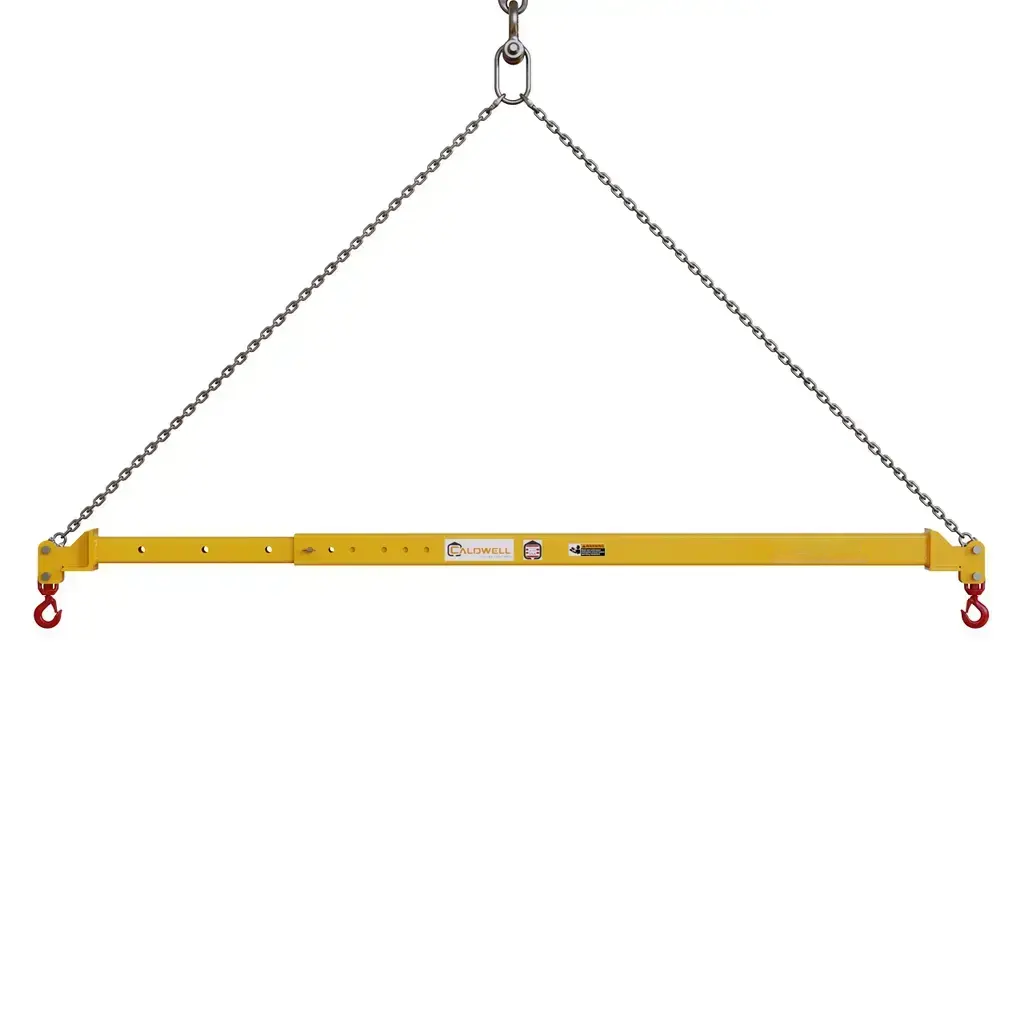

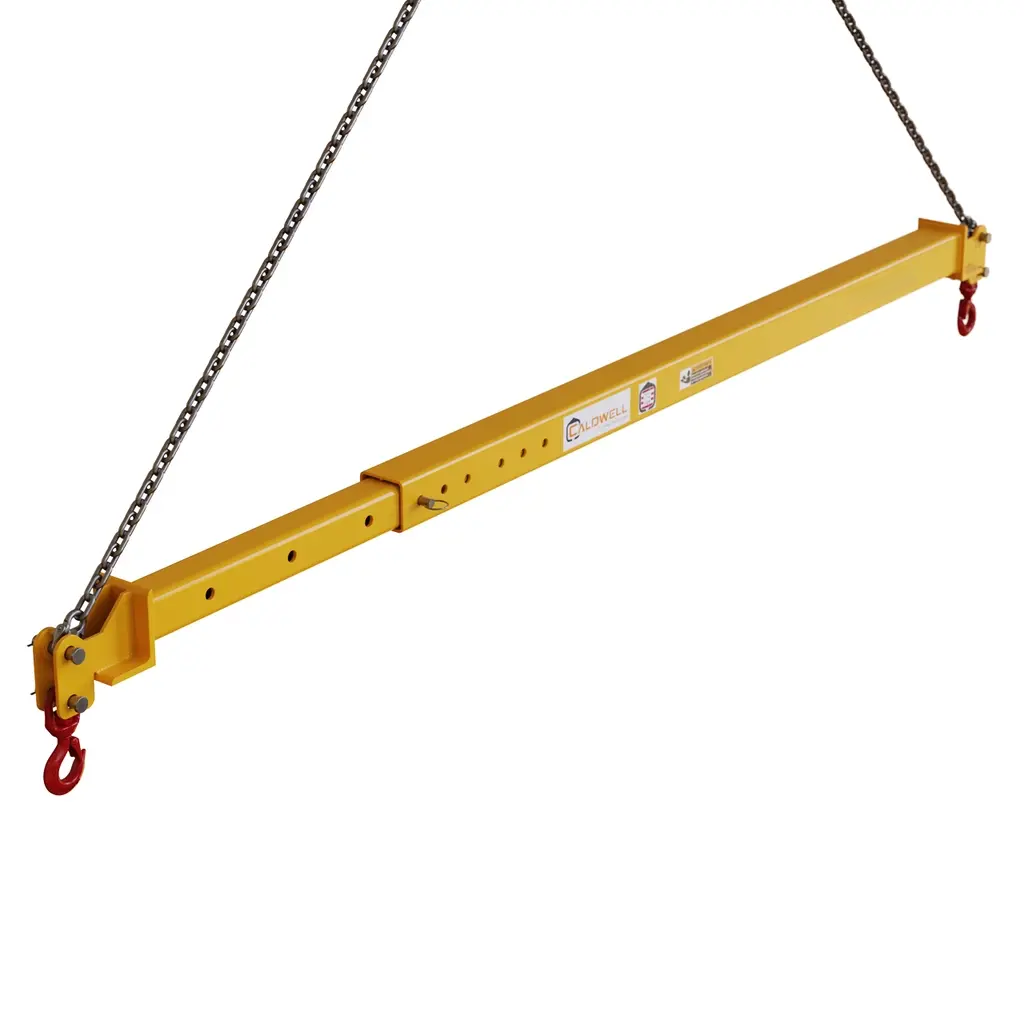

The Caldwell Model 32 Adjustable Spreader Beam with swivel hooks is designed for applications where headroom is not limited and added stability is required.

*Available with Chain or Wire Rope Rigging Upon Request*

Made in the USA

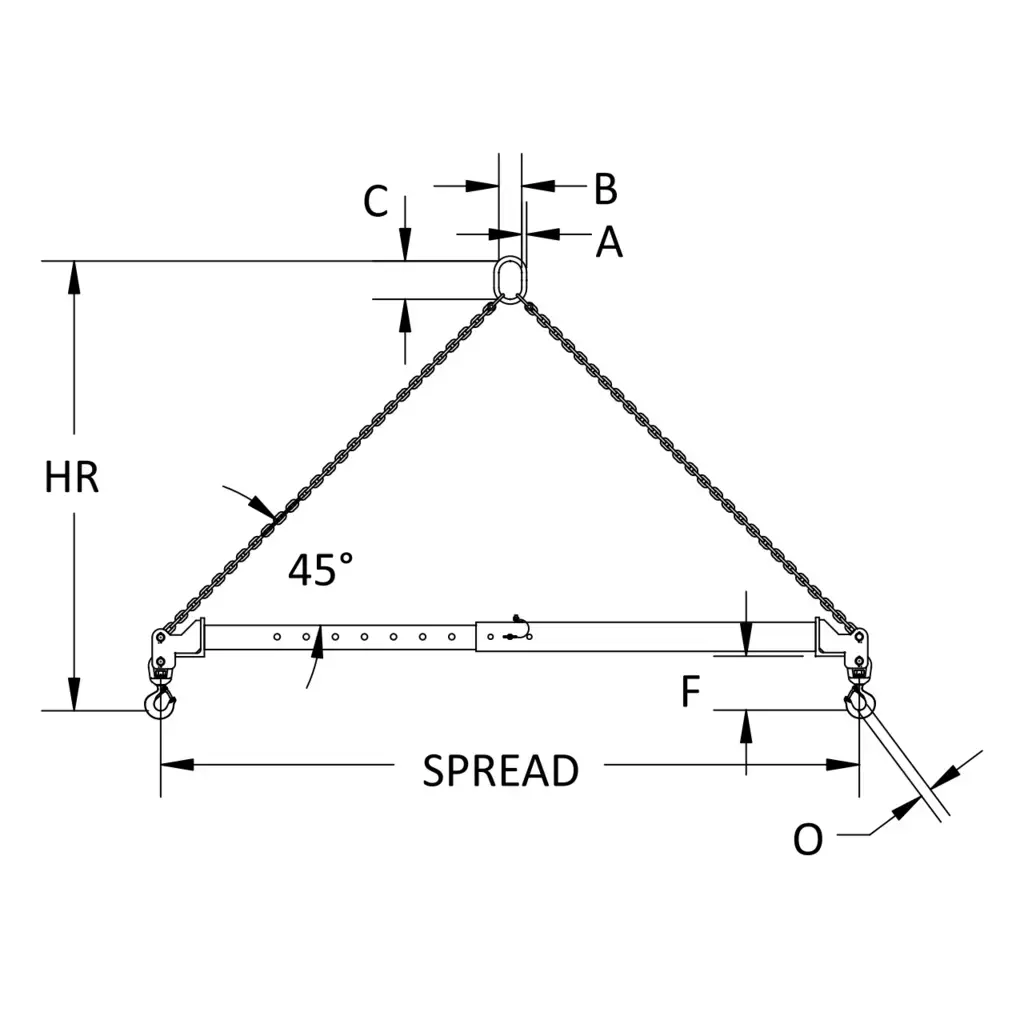

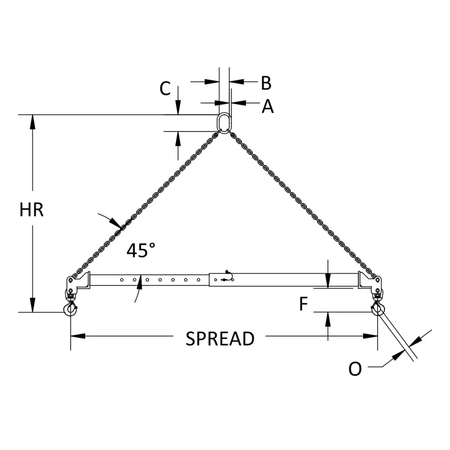

  • 20000 lbs Capacity
  • Bail Oblong Diameter: 1.25 in
  • Bail Opening Width: 5.71 in
  • Bail Opening Height: 10.83 in
  • Headroom Max: 69 in
  • Headroom Min: 60 in
  • Hook Clearance: 10.6 in
  • Hook Opening With Latch: 1.78 in
  • Max Spread: 6 ft
  • Min Spread: 4 ft
  • Complies with ASME standards

Spec Sheet (PDF)
