Manual Release Hook – 1 ton - Model RR – Caldwell

SKU: 65-01
$2,168.44
Estimated Lead Time:

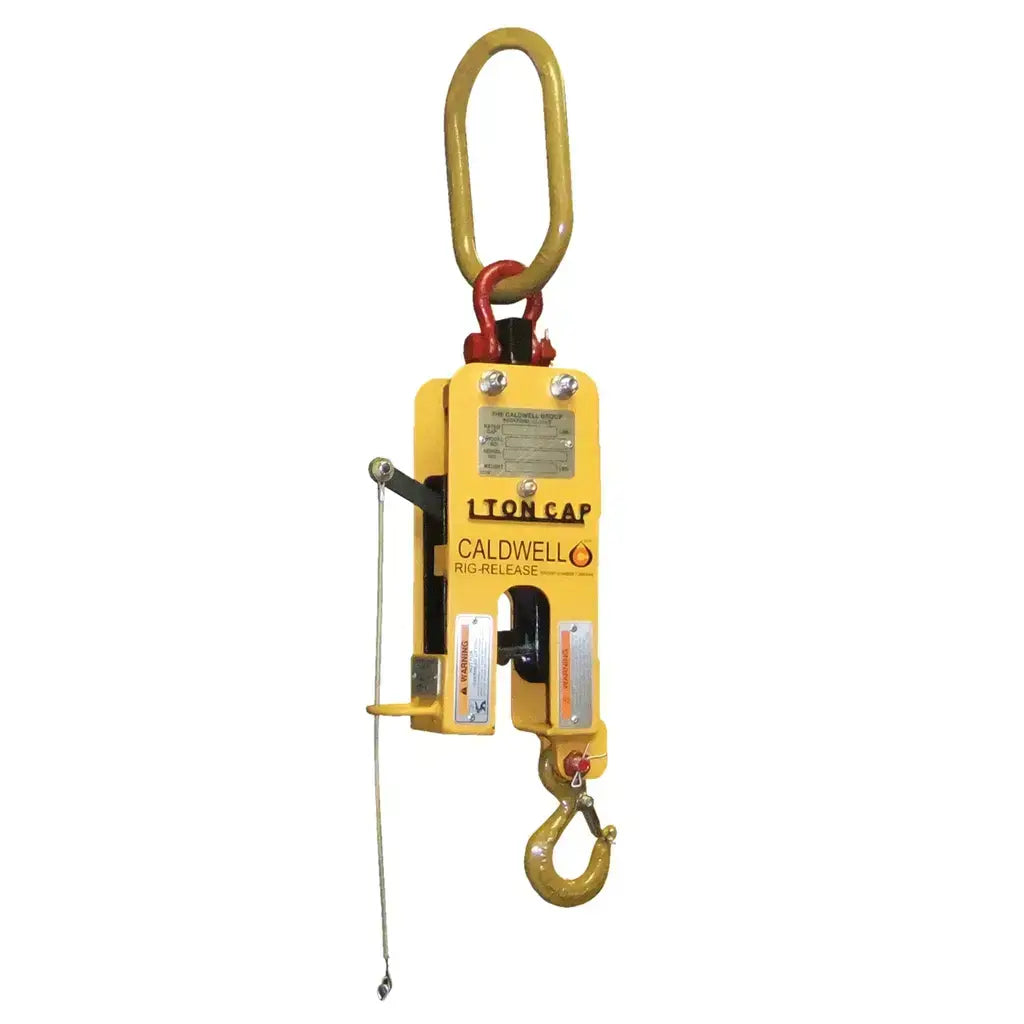

The Caldwell 1 Ton Manual Release Hook (Model RR-1) is a patented Rig-Release solution that allows operators to release rigging remotely, improving job site safety and efficiency. Designed so it cannot release rigging while under load when used according to instructions, the RR-1 attaches to a crane or spreader beam and accepts slings directly. Once the load is set and the crane line is slack, the hook is released by pulling the release rope manually or via remote control. Built for rugged outdoor use, the RR-1 features an oversized bail for easy mounting and a Lock & Capture mechanism that engages with minimal load. It is rated for both Lift Arm and lower Strip Sling hook use, and complies with ASME safety standards. Its compact, durable design makes it a cost-effective choice for safer and more efficient rigging release operations. Need a custom configuration? Call us to build a release hook tailored to your exact lifting needs.
  • Model Number: RR-1
  • Capacity: 1 ton
  • Max Allowable Rigging Weight – Basket: 14 lbs
  • Max Allowable Rigging Weight – Choker: 7 lbs
  • Bail Depth: 0.63 in
  • Bail Opening Width: 3 in
  • Bail Opening Height: 6 in
  • Bail Thickness: 0.63 in
  • Headroom: 19.75 in
  • Weight: 15 lbs
  • Max Jaw Opening: 0.89 in
  • Minimum Load – Choker: 30 lbs
  • Magnetic Weight: 15 lbs
  • Support Width: 0.38 ft
  • Latch Depth: 0.75 in
  • Rope Opening Max Height: 1.15 in
  • Rope Opening Max Width: 1.25 in
  • Unit Max Height with Bail: 23.1 in
  • Unit Max Thickness: 2.77 in
  • Unit Max Width with Bail: 4.25 in

Spec Sheet (PDF)
