1,500 Lb. Steel DC Powered Portable Hydraulic Drum Dumper – 48" Dump Height – HDD-48-15-P-DC – Vestil

SKU: HDD-48-15-P-DC
$5,394.61
Estimated Lead Time:6-8 Weeks

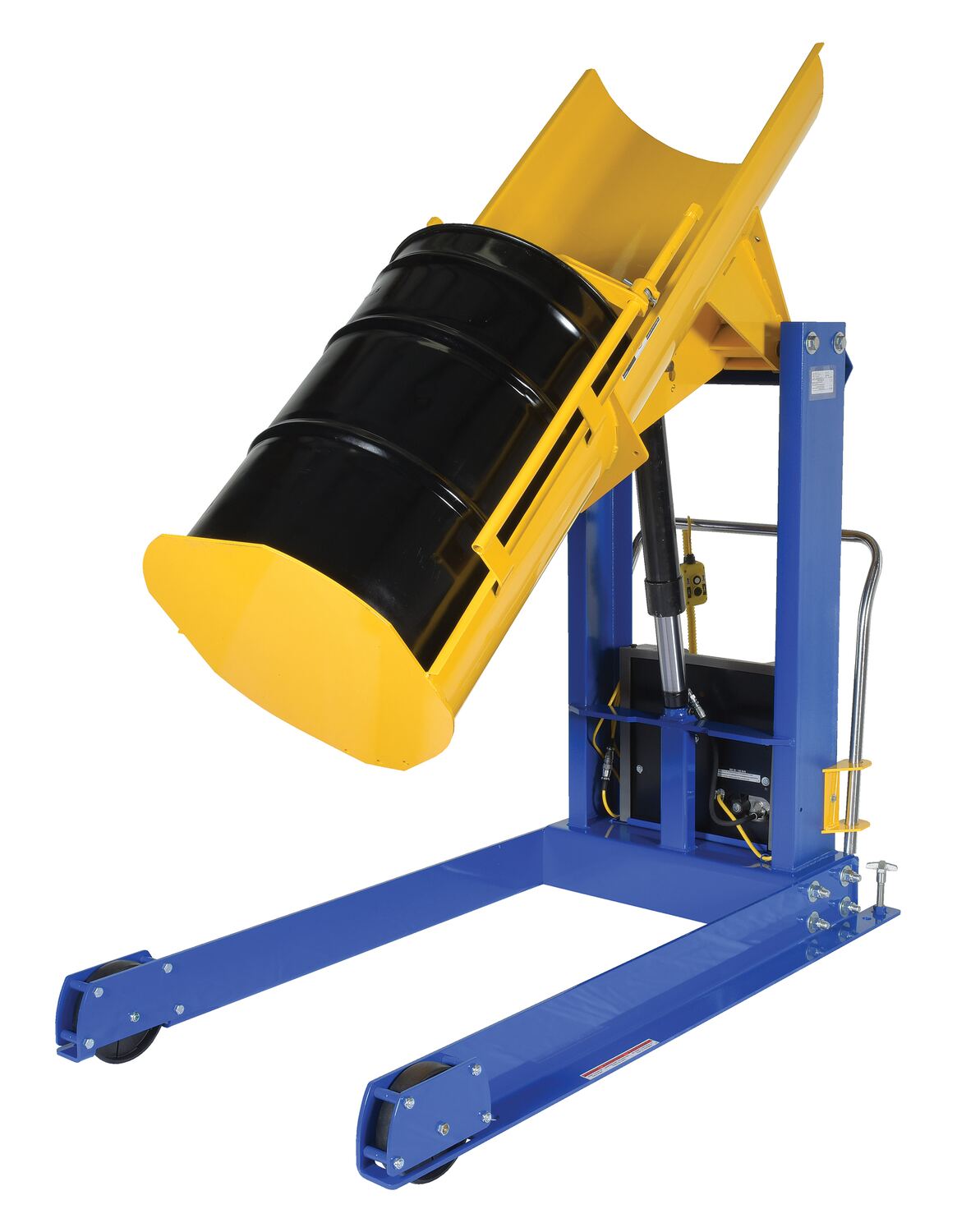

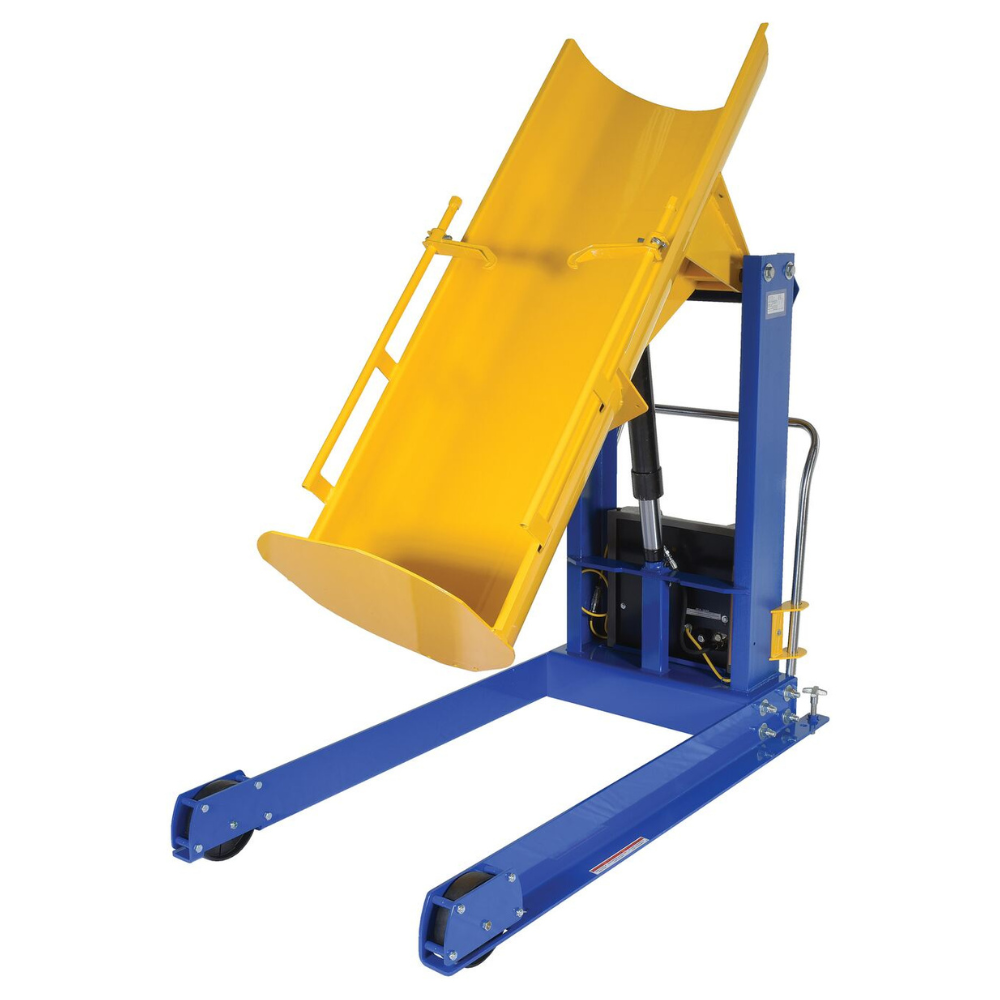

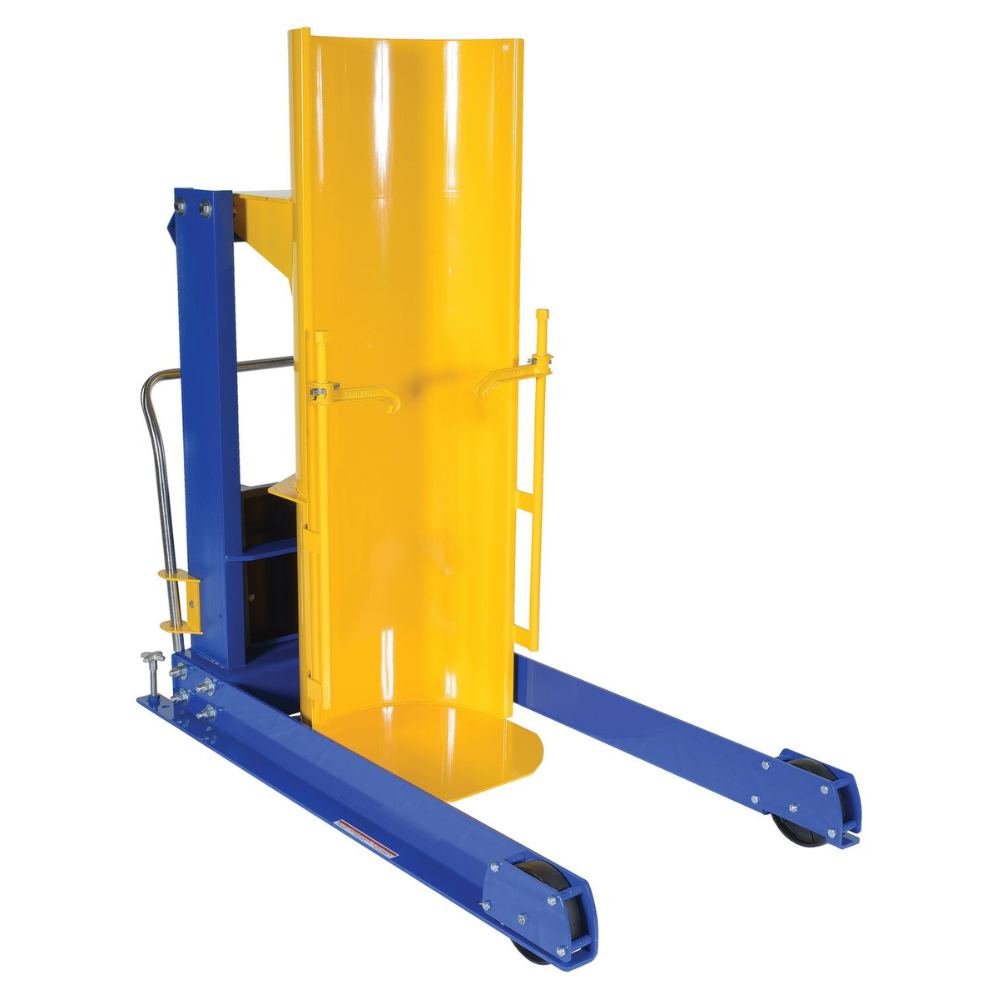

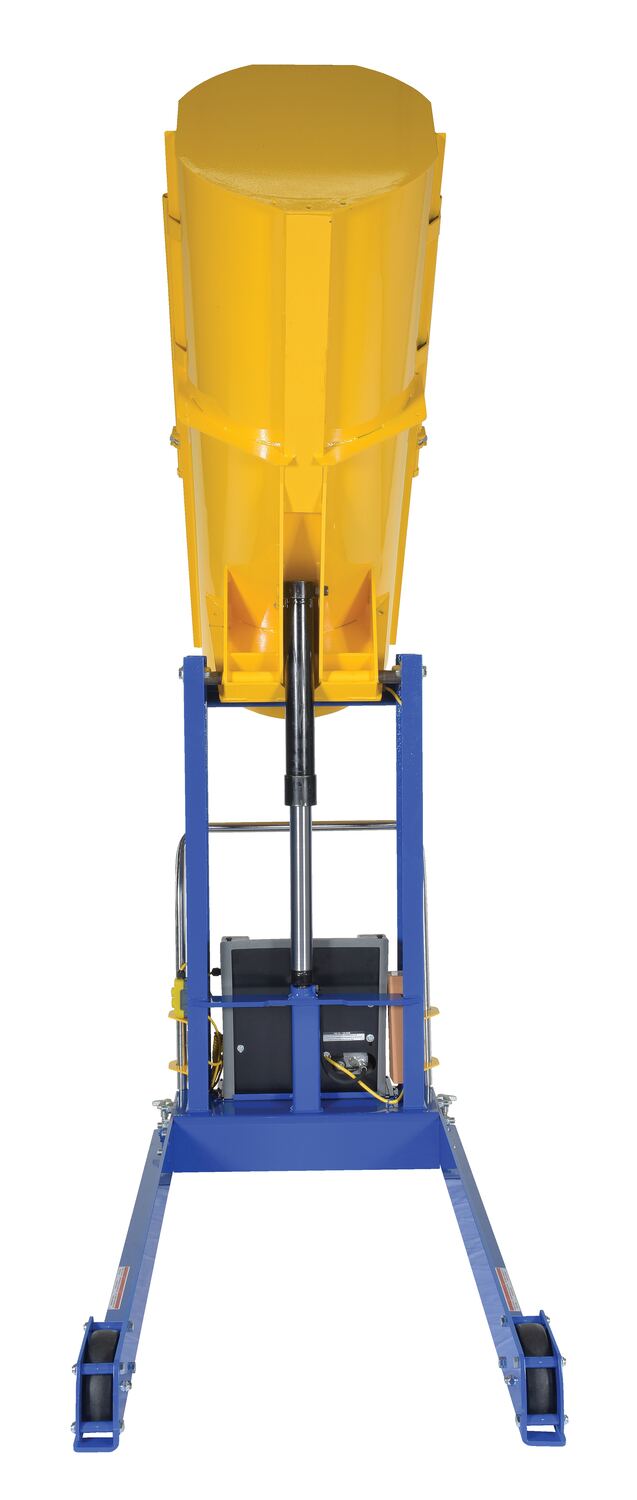

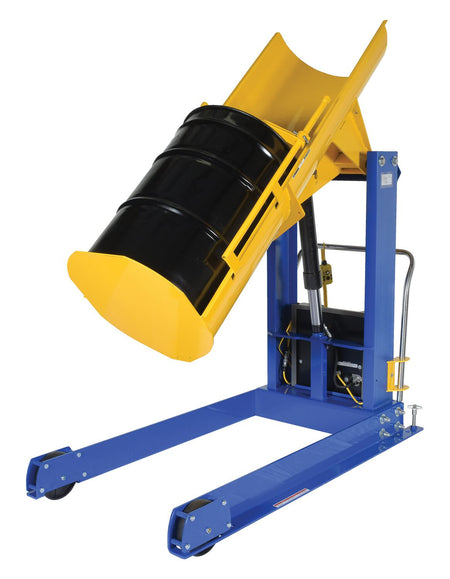

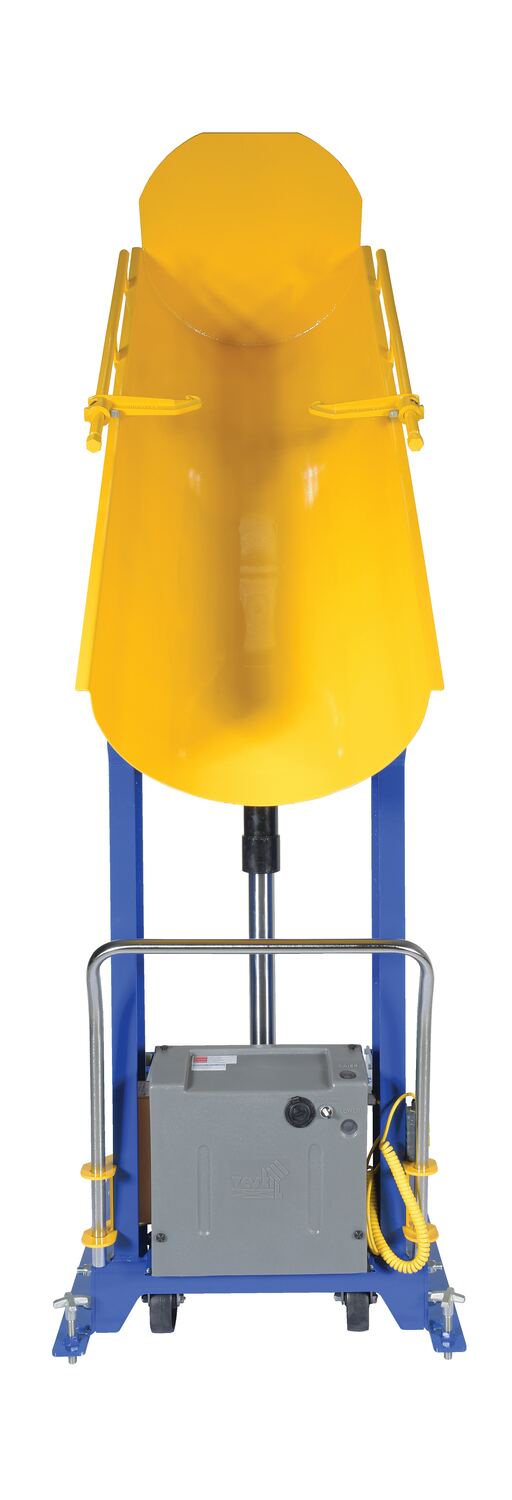

The Vestil Steel DC Powered Portable Hydraulic Drum Dumper provides an efficient and reliable way to dump heavy drums. Designed to handle plastic, steel, and fiber drums, it features a solid steel chute and rugged all-steel construction. Portability is enhanced with casters and floor lock screws, while safety features include an upper travel limit switch and an emergency brass safety velocity fuse.

This DC-powered unit operates on a 12V lead acid battery and includes adjustable vertical drum restraints for a secure hold. The drum rotation can be stopped at any point, offering operators full control during use.
  • Model Number: HDD-48-15-P-DC
  • Capacity: 1,500 lbs
  • Dump Height: 48 in
  • Overall Lowered Height: 72.5 in
  • Overall Raised Height: 116.75 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Diameter Range: 16.5 in – 23.5 in
  • Drum Height Range: 27.5 in – 39.5 in
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Handheld Control: 2-function, 18–90 in coil cord
  • Battery: 12V lead acid, 41 lbs
  • Casters: (2) 8 in × 2 in rigid, (2) 6 in × 2 in swivel – glass filled nylon
  • Assembled Dimensions: 71.5 in D × 36 in W × 72.5 in H, 759 lbs
  • Package Dimensions: 83 in D × 41 in W × 81 in H, 850 lbs
  • Material: Steel

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
