1,500 Lb. Steel DC Powered Portable Hydraulic Drum Dumper – 36" Dump Height – HDD-36-15-P-DC – Vestil

SKU: HDD-36-15-P-DC
$4,956.44
Estimated Lead Time:6-8 Weeks

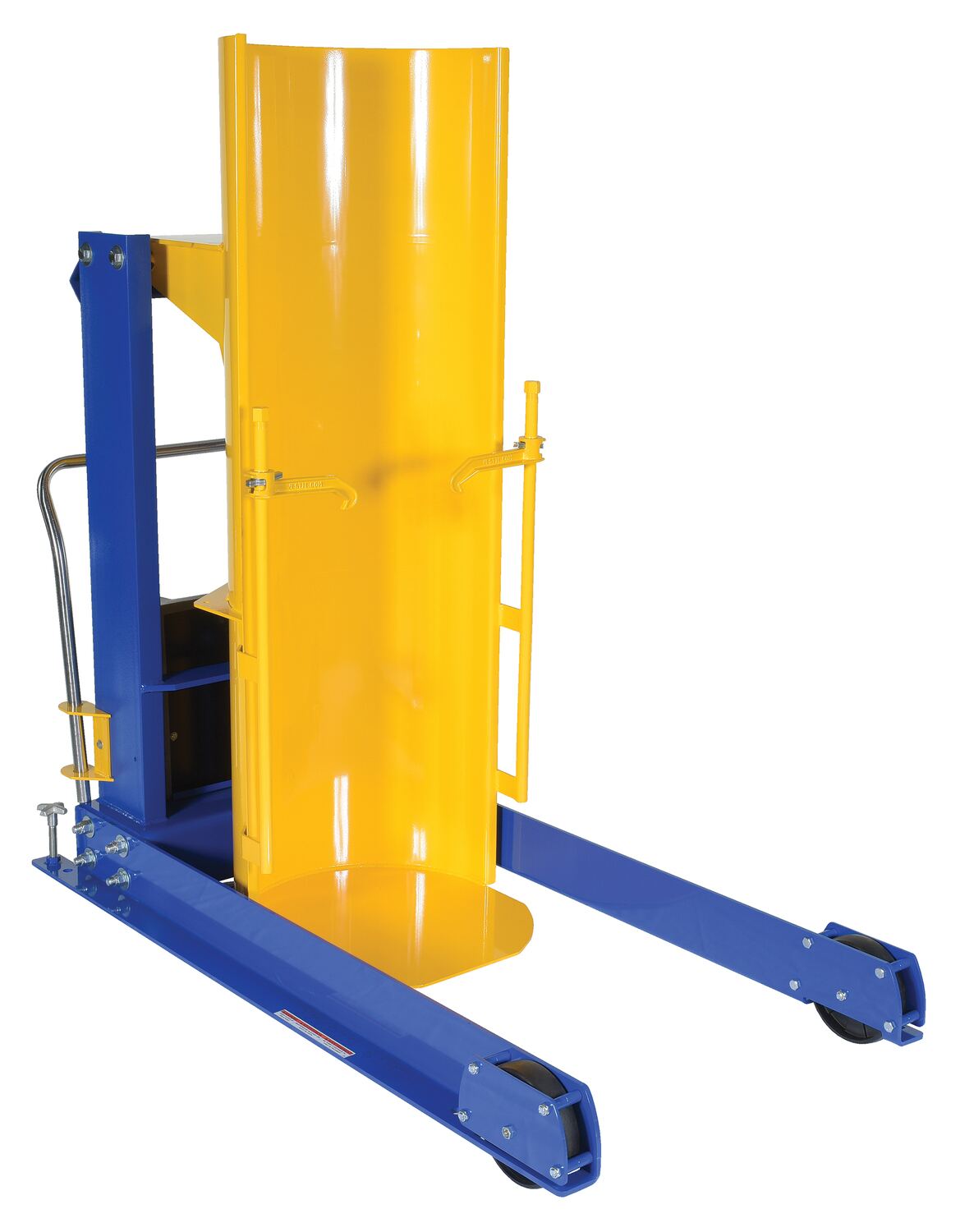

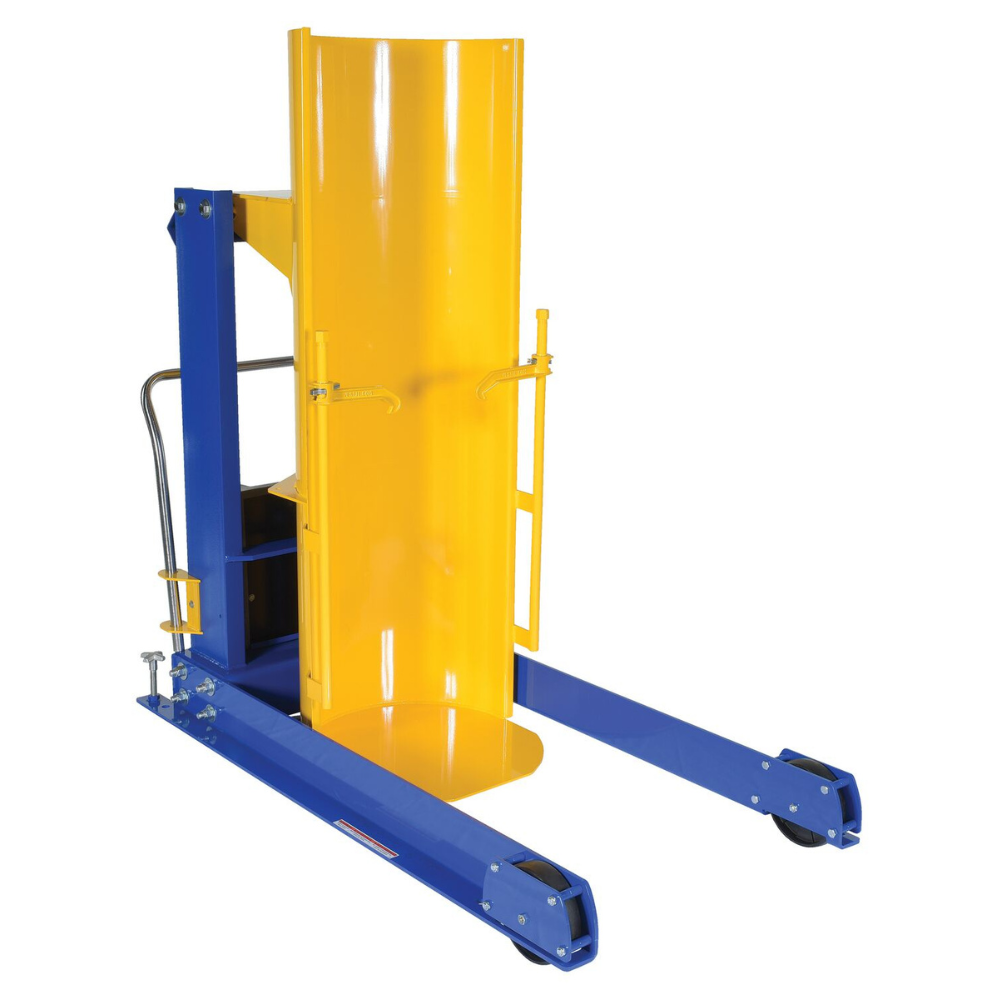

The Vestil Steel DC Powered Portable Hydraulic Drum Dumper is engineered for safe and efficient dumping of heavy drums. Designed for use with plastic, steel, and fiber drums, it features a solid steel chute and rugged frame construction. The portable design includes casters with floor lock screws for mobility and stability, while safety features such as an upper travel limit switch and an emergency brass safety velocity fuse are built in.

Powered by a 12V lead acid battery, this dumper also includes adjustable vertical drum restraints for secure handling. Drum rotation can be stopped at any point for maximum operator control.
  • Model Number: HDD-36-15-P-DC
  • Capacity: 1,500 lbs
  • Dump Height: 36 in
  • Overall Lowered Height: 63.75 in
  • Overall Raised Height: 96 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Diameter Range: 16.5 in – 23.5 in
  • Drum Height Range: 27.5 in – 39.5 in
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Handheld Control: 2-function, 18–90 in coil cord
  • Battery: 12V lead acid, 41 lbs
  • Casters: (2) 8 in × 2 in rigid, (2) 6 in × 2 in swivel – glass filled nylon
  • Assembled Dimensions: 61.5 in D × 36 in W × 63.75 in H, 699 lbs
  • Package Dimensions: 64 in D × 41 in W × 65 in H, 782 lbs
  • Material: Steel

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
