Pipe Pick – 1 1/2 ton - Model CPP – Caldwell

SKU: CPP-1.5
$935.63
Estimated Lead Time:

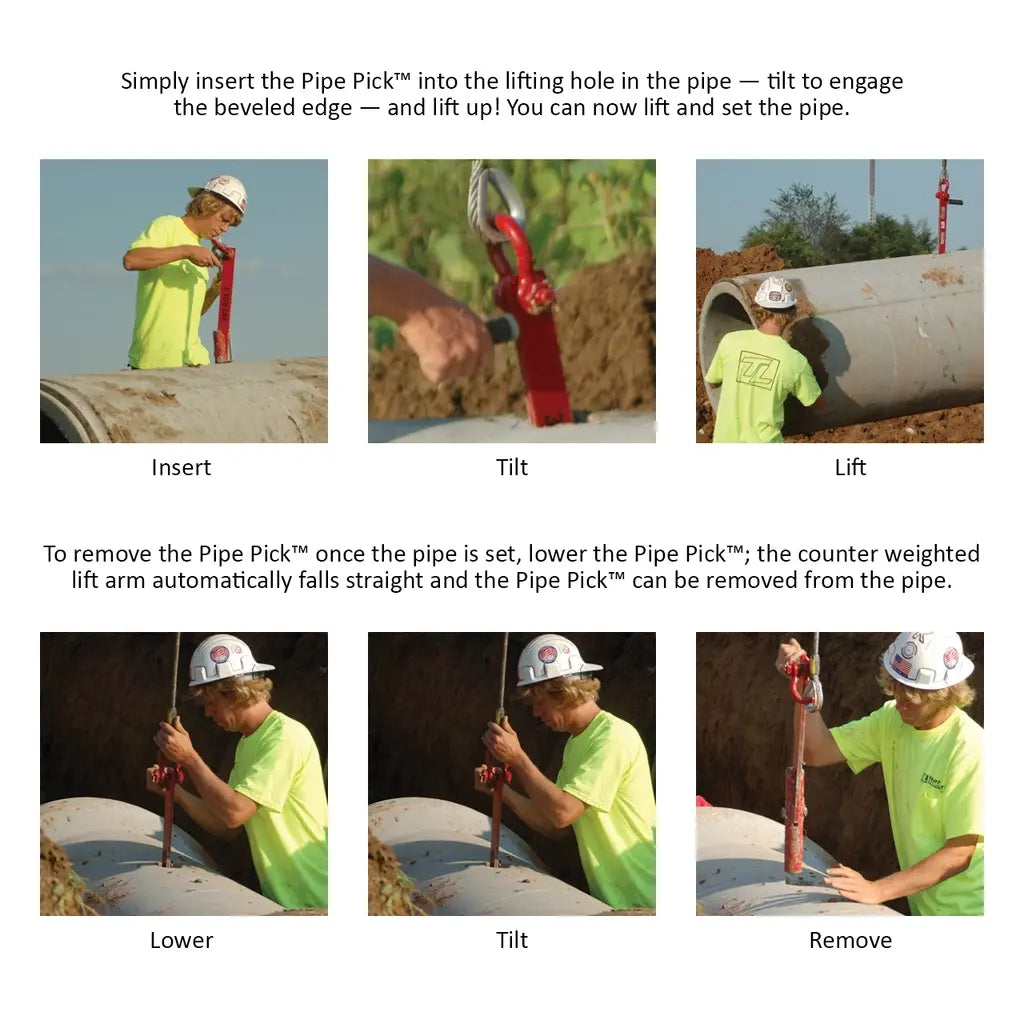

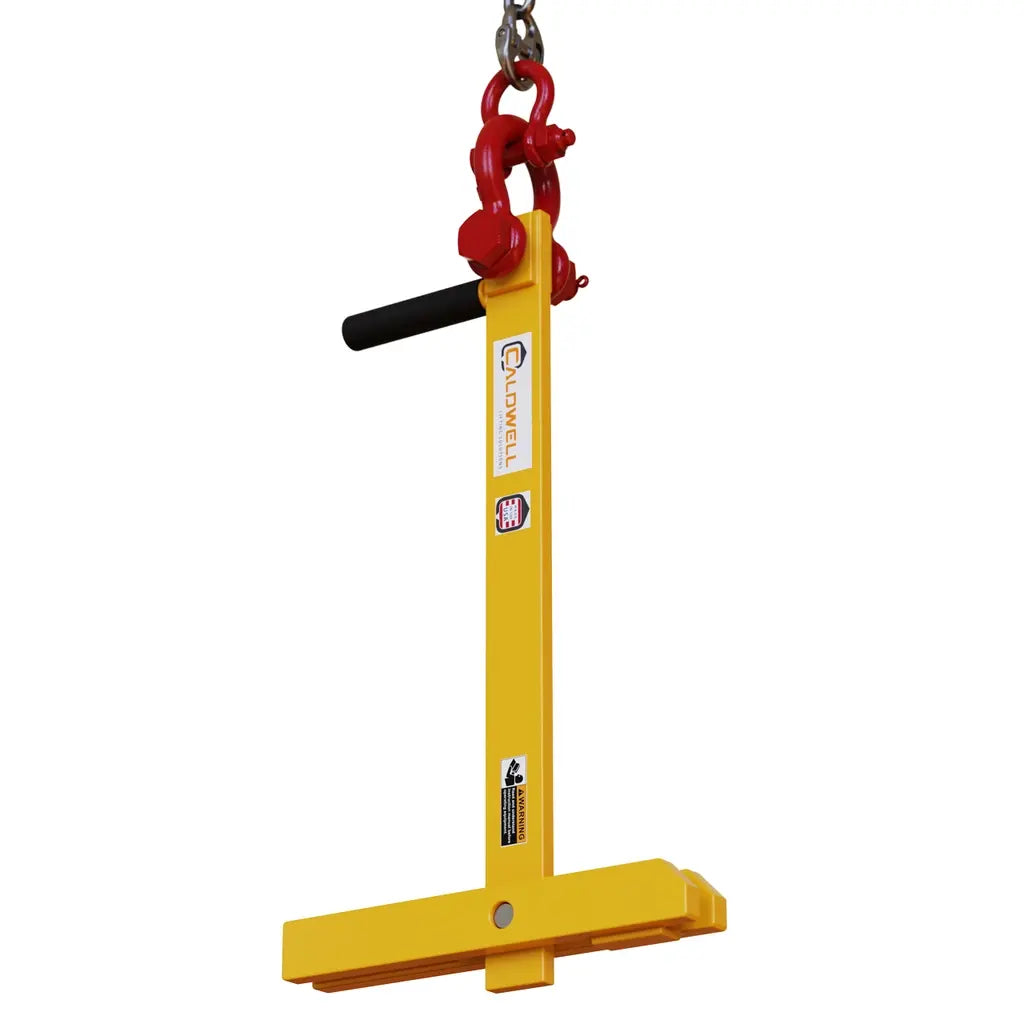

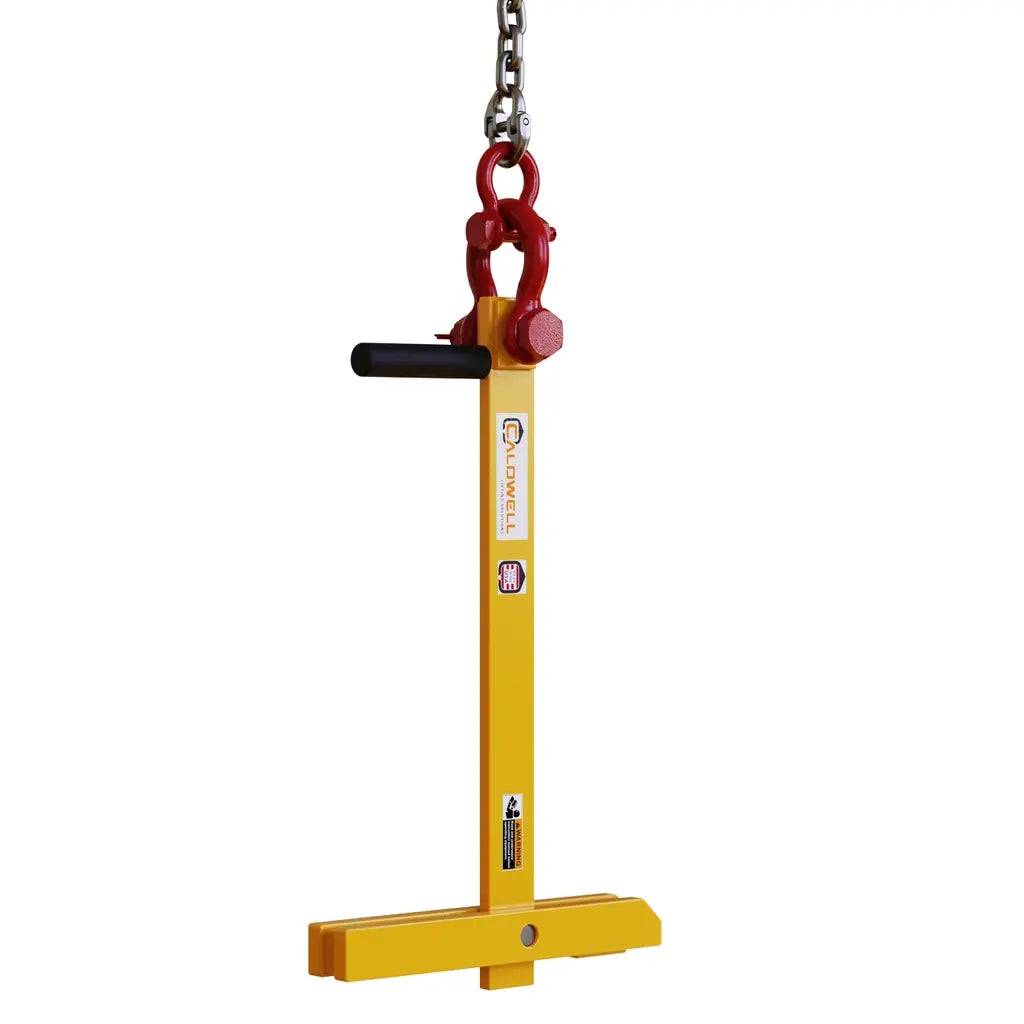

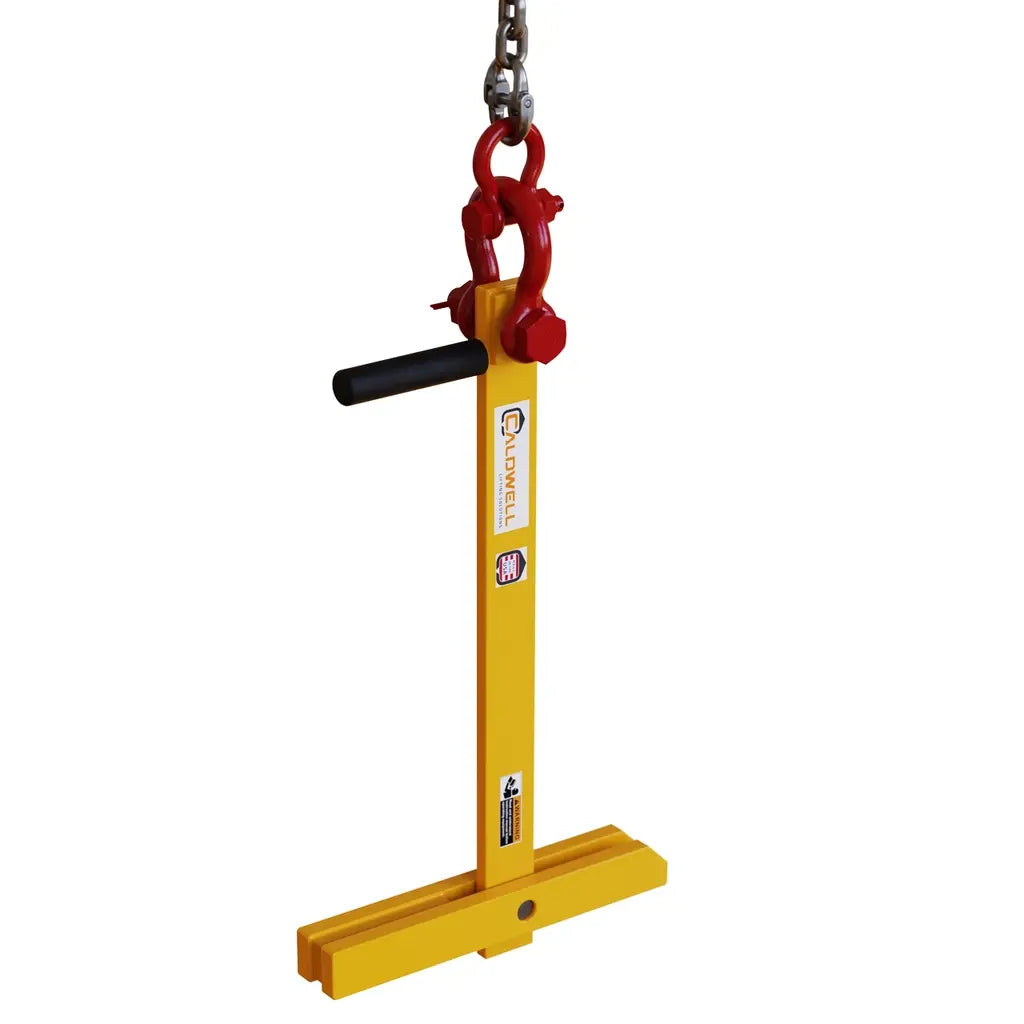

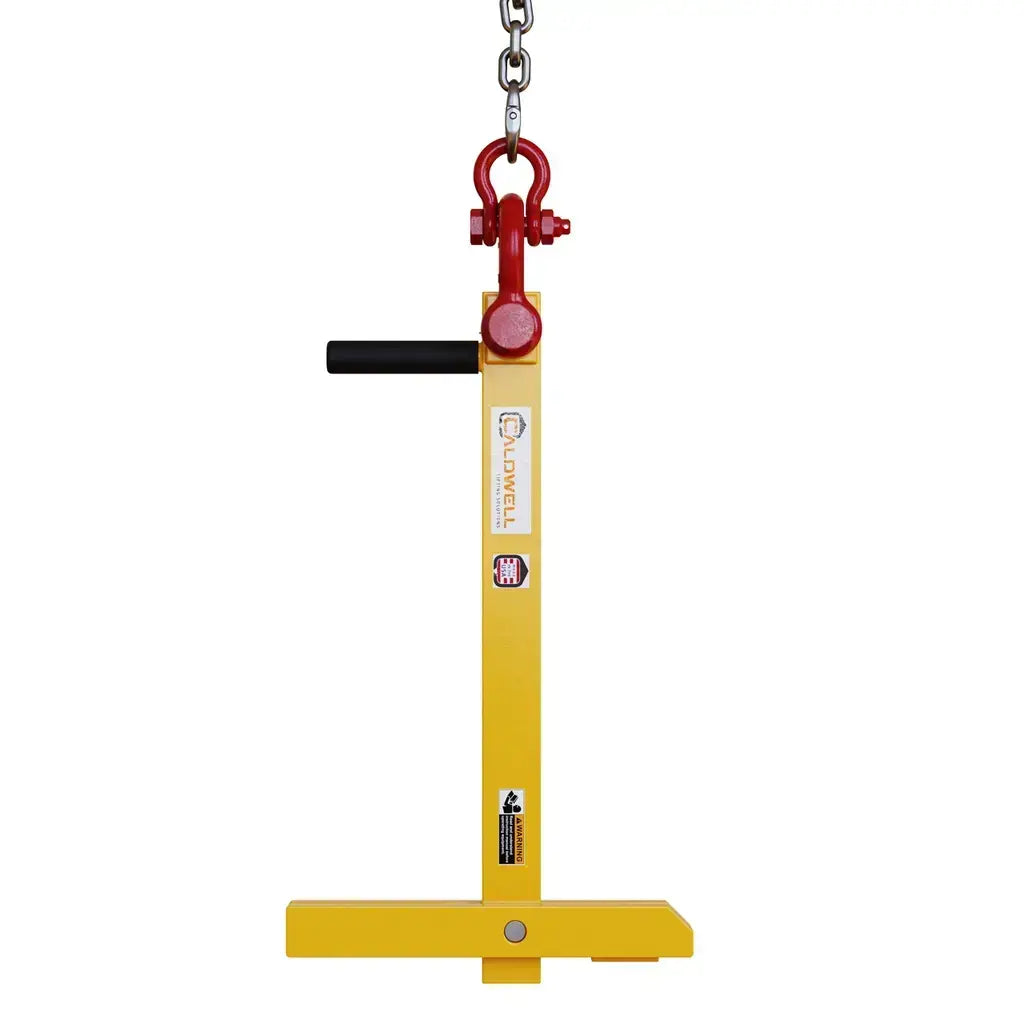

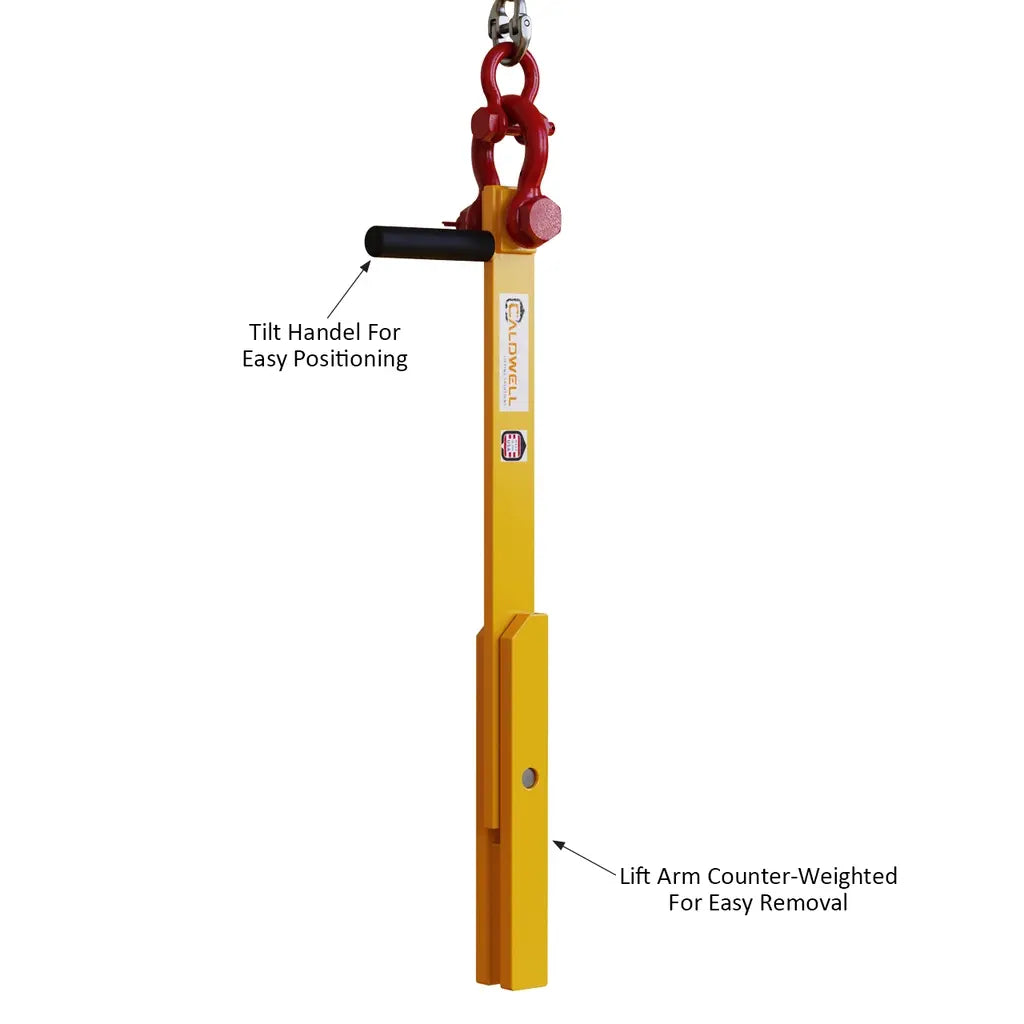

The Caldwell Model CPP Pipe Pick™ is a patented solution that provides a faster, safer, and cleaner method for handling precast concrete pipe. Designed to eliminate the need for workers to reach inside the pipe, this innovative lifter keeps operators above the pipe at all times, significantly improving safety on the job site. Engineered for simplicity and efficiency, the Pipe Pick is ideal for vertical lifting applications and ensures reliable, secure performance while reducing handling time. Built to Caldwell’s exacting standards, the CPP-1.5 is a lightweight yet durable tool for concrete pipe lifting. Need a custom configuration? Call us to build a pipe pick tailored to your exact lifting needs.

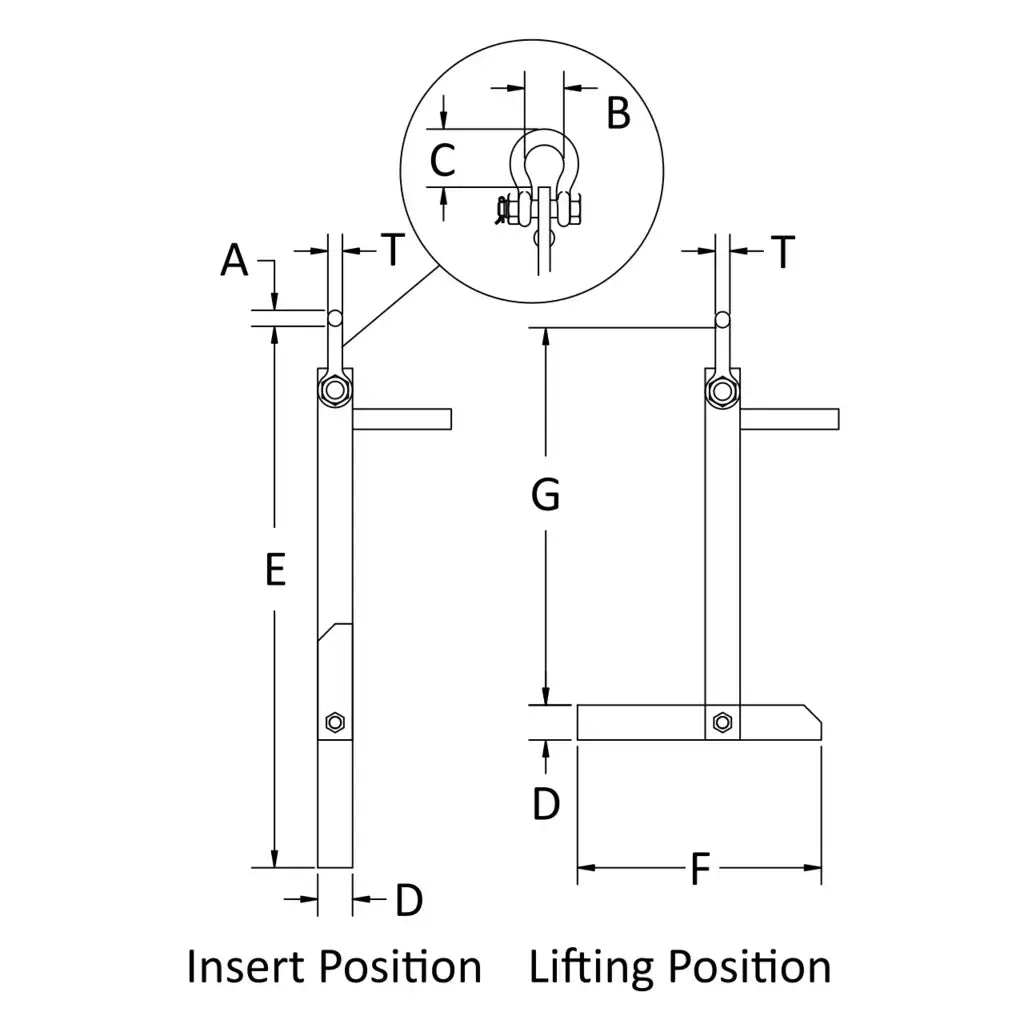

  • Model Number: CPP-1.5
  • Capacity: 1.5 tons
  • Lift Arm Height: 1.5 in
  • Lift Arm Length: 10.5 in
  • Min Hole Diameter: 2 in
  • Weight: 10 lbs
  • Shackle Size: 0.62 in
  • Min Pipe Inner Diameter: 12 in
  • Overall Height: 23 in
  • Shackle Opening Height: 2.37 in
  • Shackle Opening Width: 1.62 in
  • Headroom to Top of Load: 16.25 in
  • Shackle Thickness: 0.62 in

Spec Sheet (PDF)
