Leveling Pipe Lifter – 1 1/2 ton - Model CPL – Caldwell

SKU: CPL-1.5
$4,573.13
Estimated Lead Time:

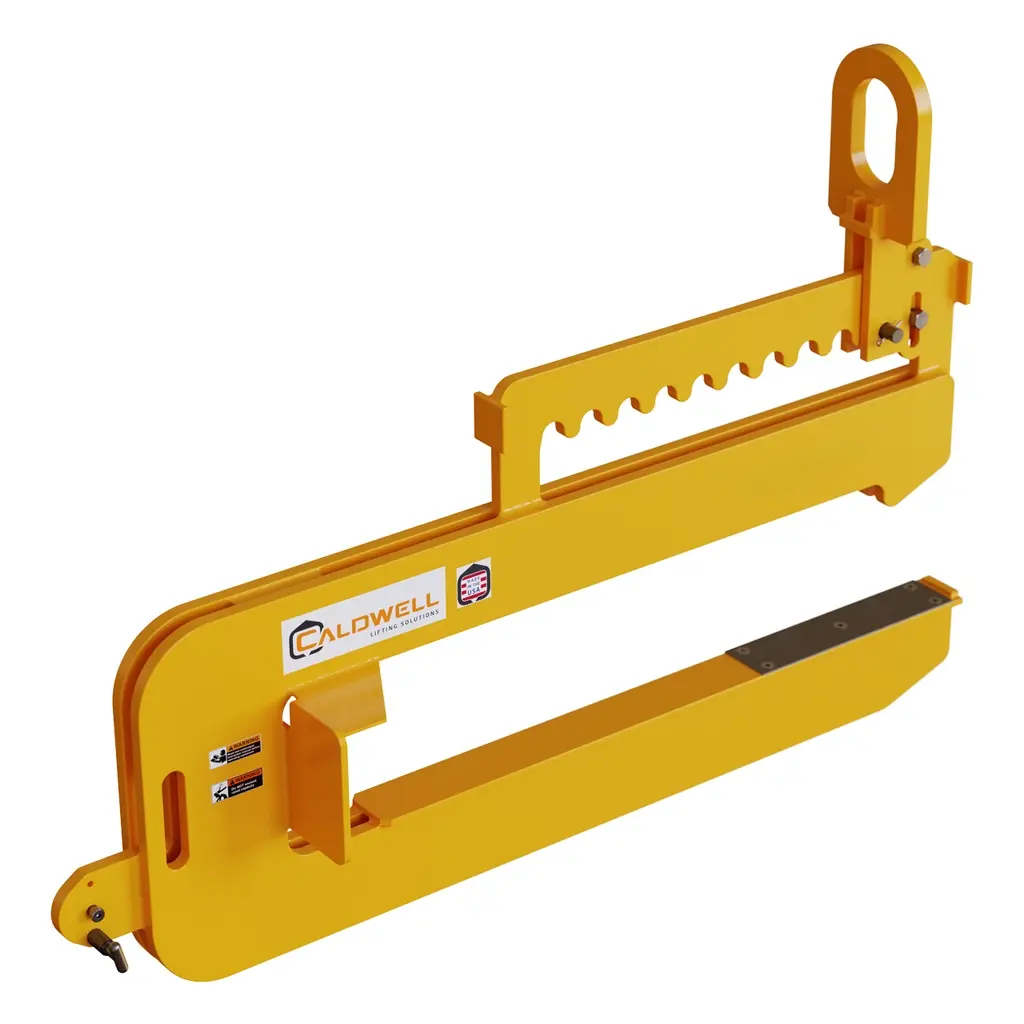

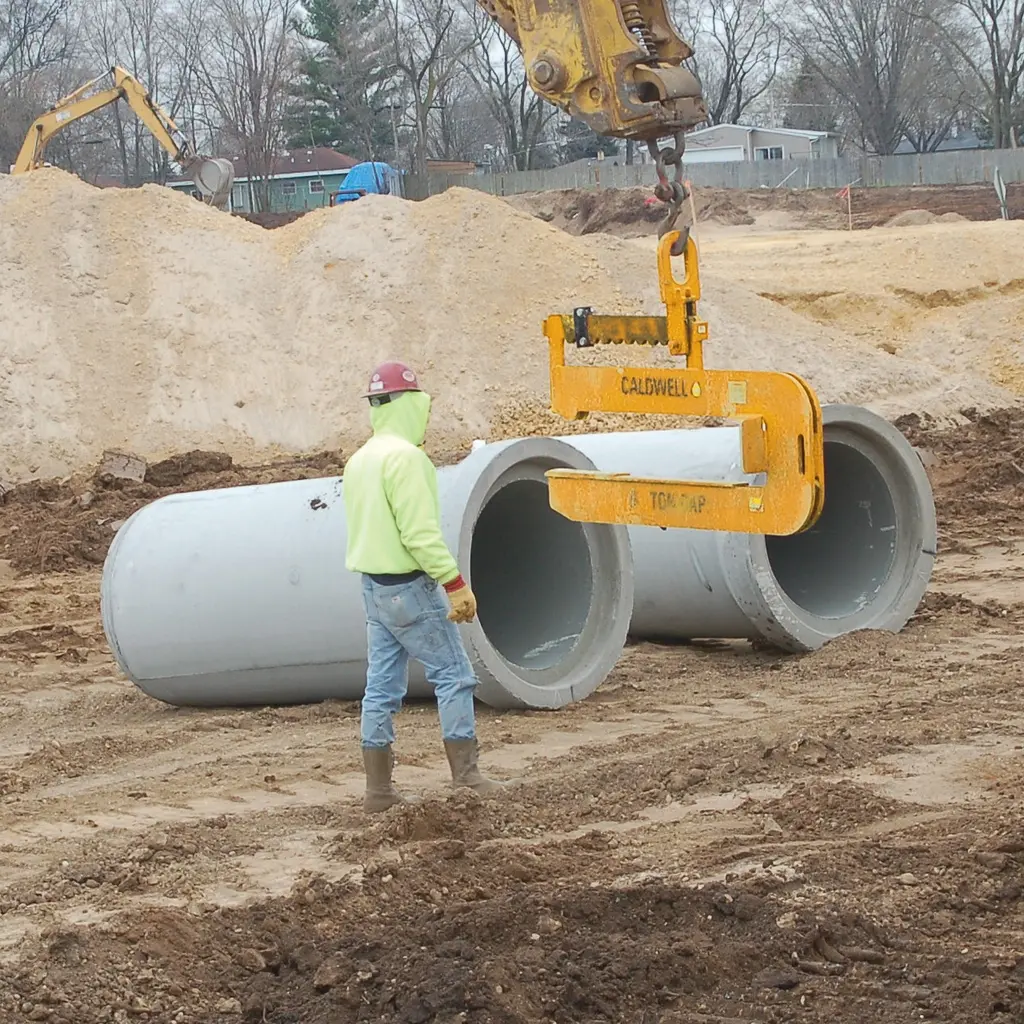

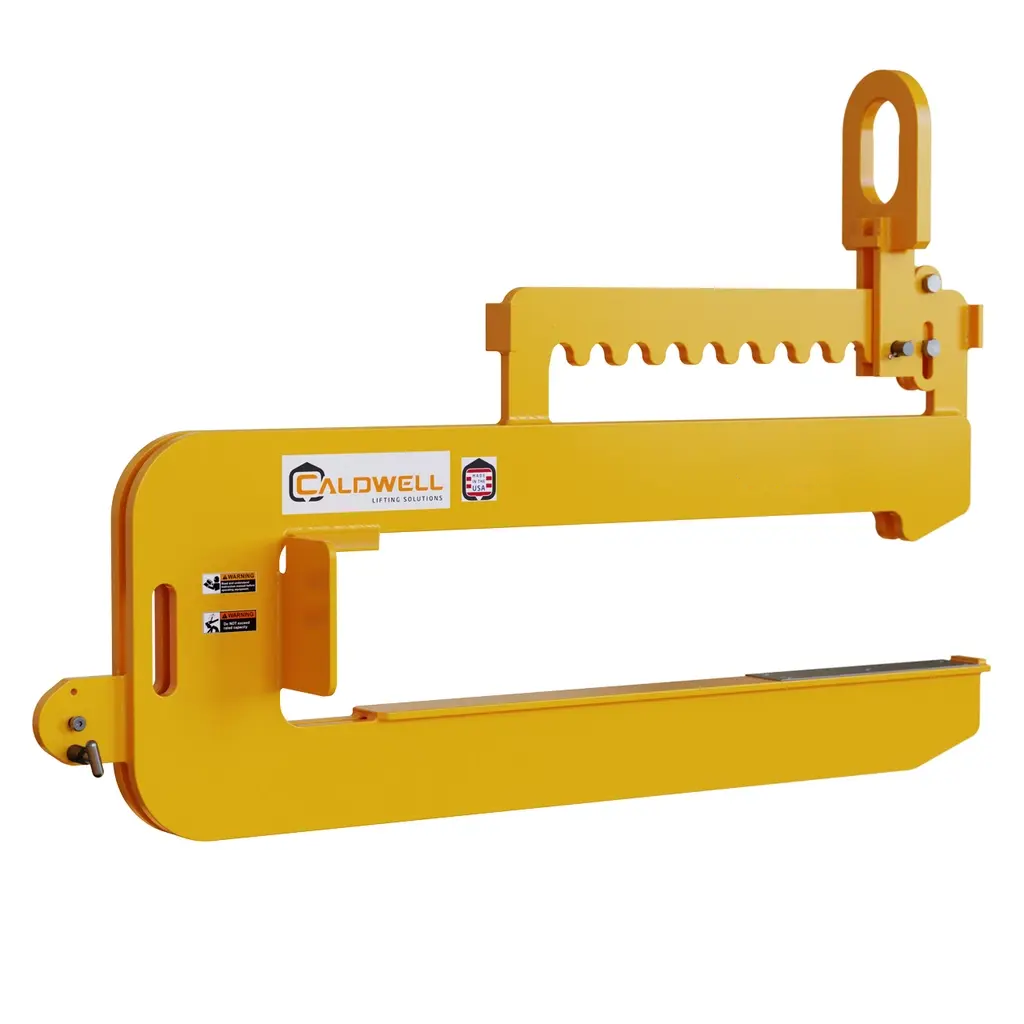

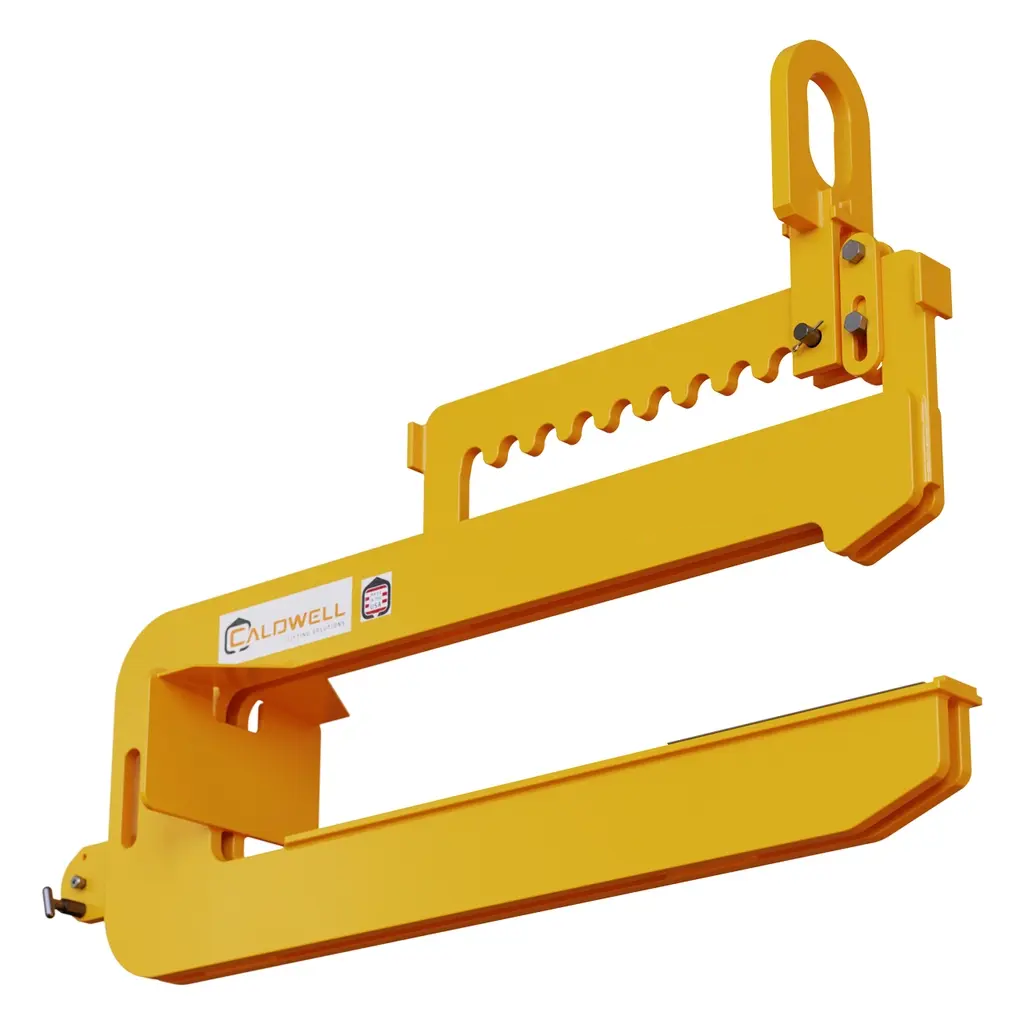

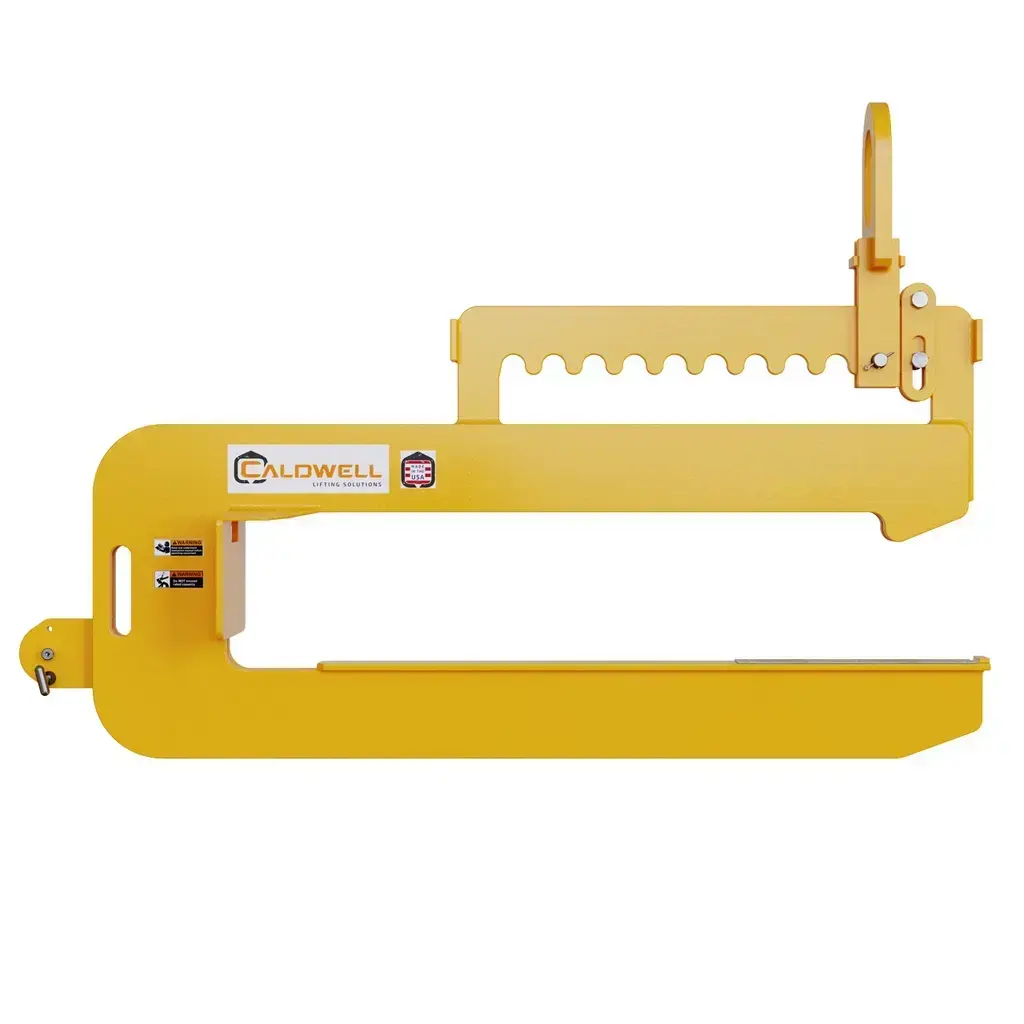

The Caldwell Model CPL Leveling Pipe Lifter is engineered to place and position concrete pipe up to 8 feet in length in a single operation. Its stand-up leveling bail adjusts easily for varying pipe lengths, while the adjustable bail stop makes repetitive lifts simple and consistent. Equipped with a pipe stop for driving pipe into position, the CPL also features a built-in laser target holder that allows the operator to set and laser position simultaneously. A positioning handle improves control during use. Built to comply with ASME standards, this lifter delivers efficient, safe, and reliable pipe handling performance. Need a custom configuration? Call us to build a pipe lifter tailored to your exact lifting needs.

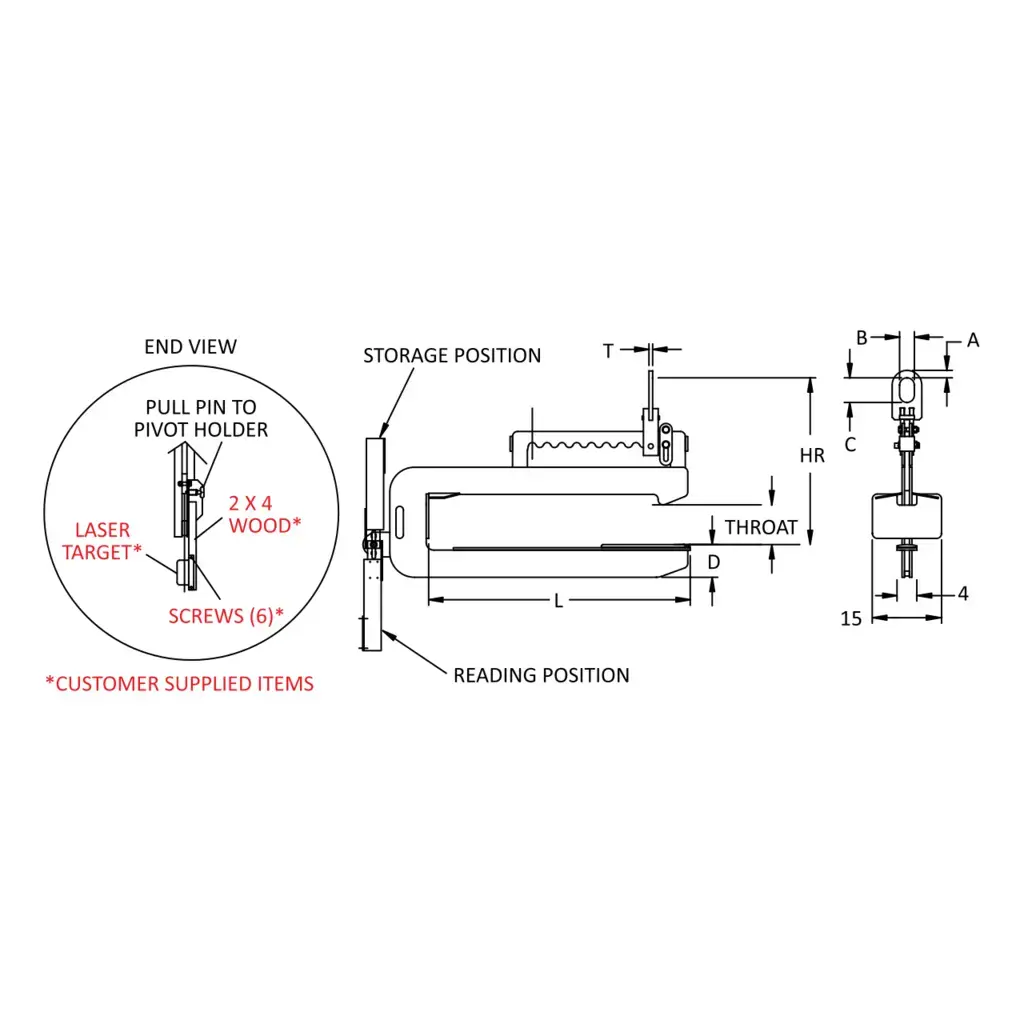

  • Model Number: CPL-1.5
  • Capacity: 1.5 tons
  • Arm Length: 53 in
  • Arm Width: 6.62 in
  • Bail Depth: 1.5 in
  • Bail Opening Width: 3 in
  • Bail Opening Height: 5 in
  • Bail Thickness: 0.75 in
  • Headroom: 33.8 in
  • Throat Opening: 8 in
  • Weight: 300 lbs
  • Pipe Outer Diameter: 8 in

Spec Sheet (PDF)
