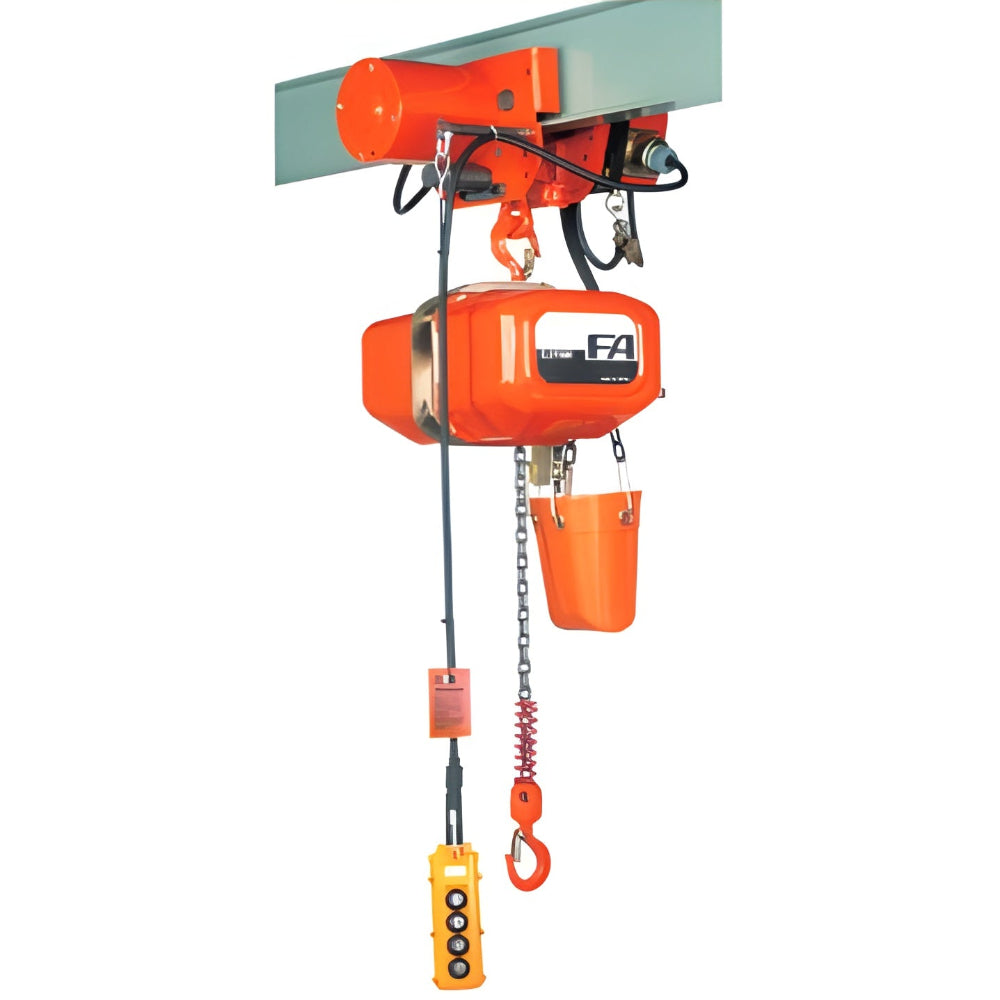

1/4 ton Electric Chain Hoist w/ Motorized Trolley - Elephant SAM - Single Speed 115v Single Phase

SKU: SAM-025-10
$6,637.16
Lift Length
Estimated Lead Time:1 to 2 Weeks

Elephant's Model SAM offers a unique design for low power consumption. The brake safety factor is more than 3 times of the rated load. Offers a highly durable load chain, totaly enclosed steel plate construction and durable bottom 360° swivel hooks. The SAM utilizes the MTS series motorized trolley, offering single phase, single speed movement.
    • 1/4 ton Capacity
    • 115V-Single Phase Voltage
    • Hoist - Single Speed - 27.5 fpm (feet per minute)
    • Trolley - Single Speed - 39 fpm (feet per minute)
    • Push-Button Included @ 2' Less than Lift Length
    • 16'-4" Power Supply Cord Included
    • Galvanized Load Chain
    • "Plug & Play" Quick Connect Wiring
    • Totally Enclosed Steel Plate Construction
    • IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
    • Chain Container (hard plastic) Included
