0.5 T USA Push Beam Trolley - OZ Lifting

SKU: OZ05PBTA
$476.50
Flange Width
Estimated Lead Time:3 to 5 Days

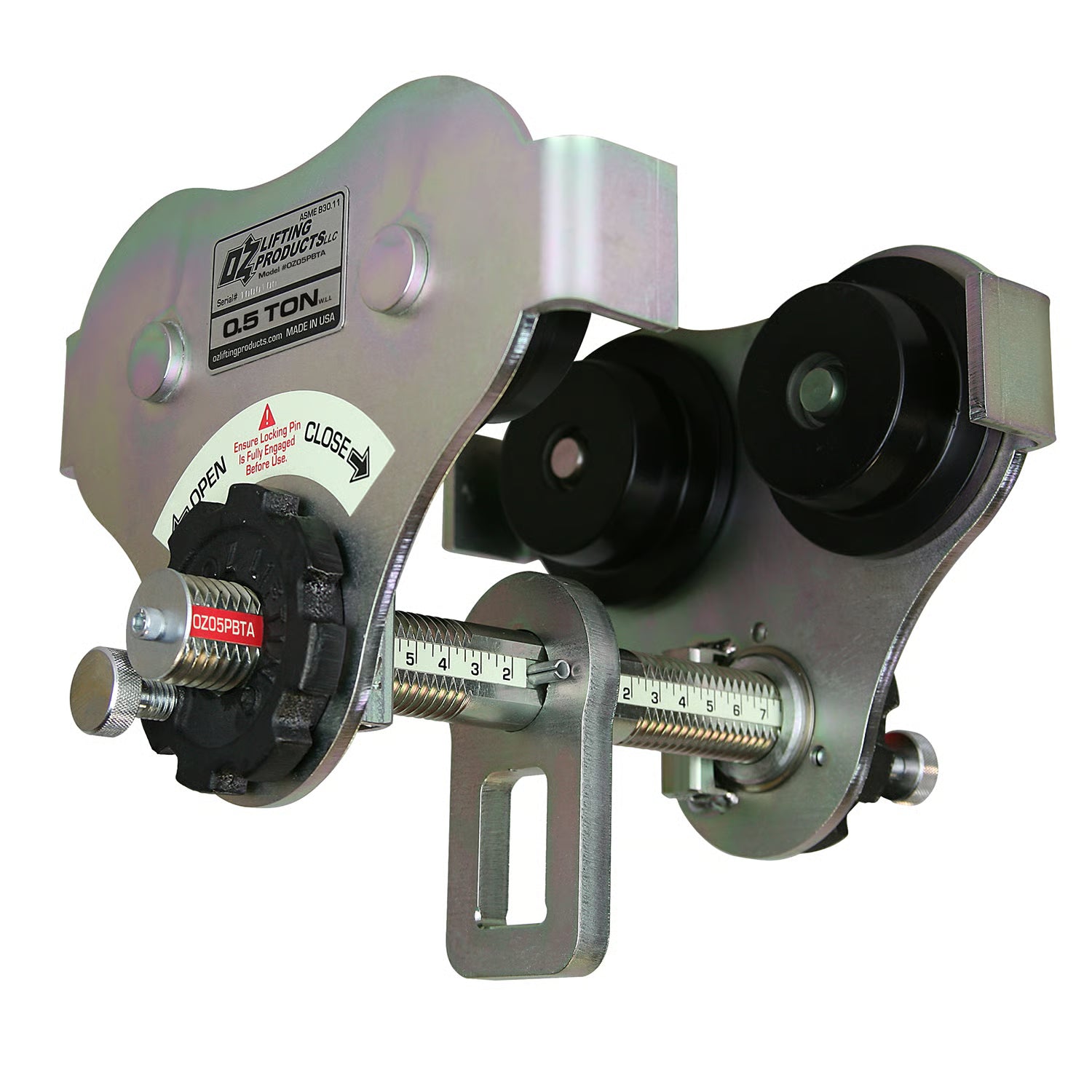

The OZ Lifting USA Push Beam Trolley has a 0.5 T (1,000 lbs) capacity and is available with maximum flange widths of 8", 12", and 16". Made and tested in the USA, this patented trolley features lightweight, robust construction and a tool-free adjustment system for quick installation on most I-, S-, and W-beams.

The trolley features precision ball bearing wheels with a double-baked enamel finish for added protection and smooth movement. Side plates protect the trolley wheels, while an anti-drop plate provides additional safety during load handling. A RoHS-compliant zinc-plated finish and glow-in-the-dark decals are also included.

Each trolley features a stainless steel identification tag and comes with an individual serial number and test certificate for traceability. The trolley meets ASME B30.11 and ASME B30.16 standards.

• Capacity: 0.5 T (1,000 lbs.)
• Product Type: Push Beam Trolley
• Maximum Flange Width: 16"
• Headroom: 5"
• Minimum Beam Radius: 2.75'
• Construction: Lightweight, robust
• Beam Compatibility: Fits most I-, S-, and W-beams
• Adjustment: Tool-free installation and adjustment
• Safety Features: Anti-drop plate
• Trolley Wheels: Precision ball bearings with double-baked enamel finish
• Wheel Protection: Side plates
• Finish: RoHS-compliant zinc plating
• Visibility Features: Glow-in-the-dark decals
• Identification Tag: Stainless steel
• Testing and Traceability: Individual serial number and test certificate
• Technology: Patented
• Country of Manufacture: USA
• Standards: ASME B30.11, ASME B30.16
