0.5 T Spark Resistant Push Beam Trolley - OZSR05PBT - OZ Lifting

SKU: OZSR05PBT
$580.51
Estimated Lead Time:3 to 5 Days

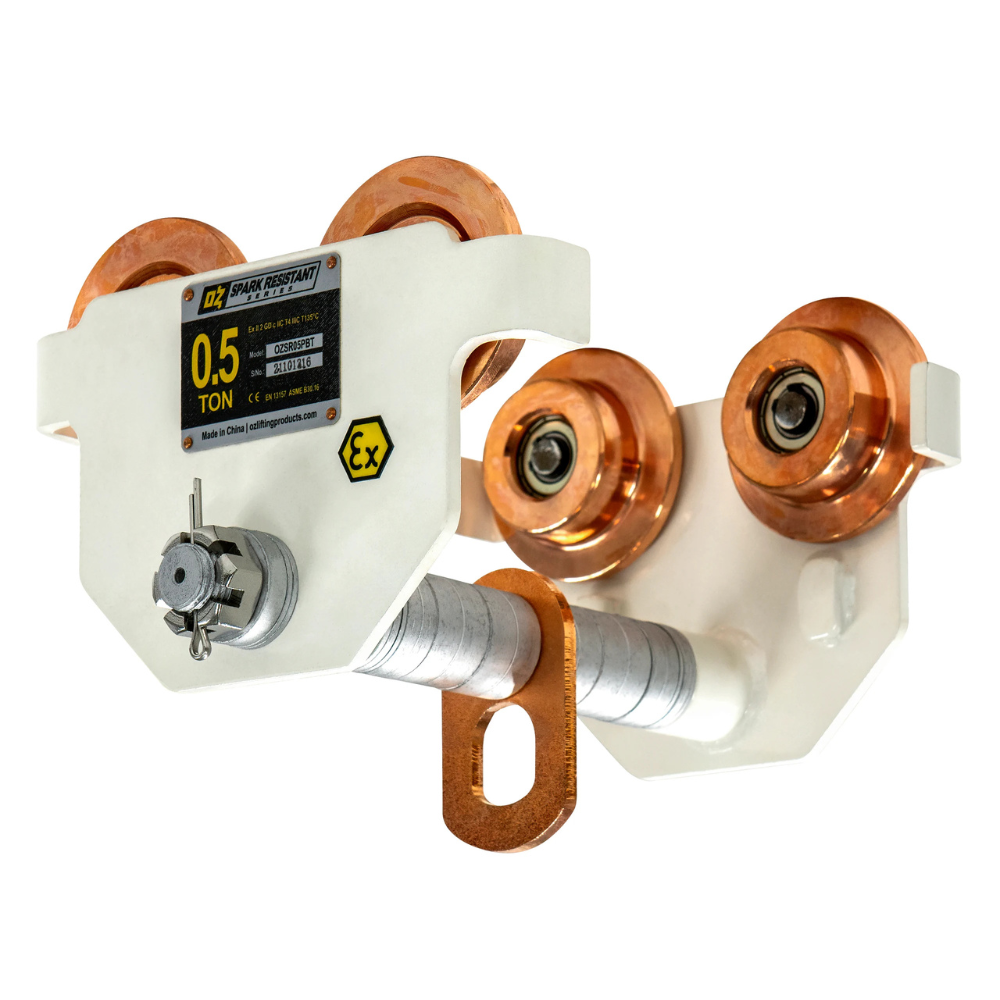

The OZ Lifting Spark Resistant Push Beam Trolley has a 0.5 T (1,000 lbs) capacity and is designed for material handling in potentially explosive environments, including Zone 1 and 2 gas areas and Zone 21 and 22 dust areas. The trolley is compatible with most I-, S-, and W-beams.

The trolley features an anti-spark coating, copper-plated wheels and bail, and copper-riveted identification tags. Precision ball bearing wheels support smooth movement, while an anti-drop plate provides additional safety during load handling.

Each trolley includes an individual serial number and test certificate for traceability. The trolley is specified to CE, ATEX 94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, and ASME B30.11 and B30.16 standards, and the Machinery Directive 2006/42/EC.

• Model: OZSR05PBT
• Capacity: 0.5 T (1,000 lbs)
• Product type: Spark resistant push beam trolley
• Application: Potentially explosive environments
• Hazardous area suitability: Zone 1 and 2 (gas), Zone 21 and 22 (dust)
• Beam compatibility: Most I-, S-, and W-beams
• Coating: Anti-spark
• Wheels and bail: Copper-plated
• Trolley wheels: Precision ball bearings
• Safety features: Anti-drop plate
• Identification tags: Copper-riveted
• Traceability: Individual serial number and test certificate
• ATEX classification: Ex II 2 GD c IIC T4 IIIC T135°C
• Standards: CE, ATEX 94/9/EC, AS1418.2, ASME B30.11, ASME B30.16
• Machinery directive: 2006/42/EC
