1,000 lb Steel Drum Truck Cradle with Mold-on-Rubber Wheels – 55 Gallon – RDBT-MR – Vestil

SKU: RDBT-MR
$560.69
Estimated Lead Time:1-3 Days

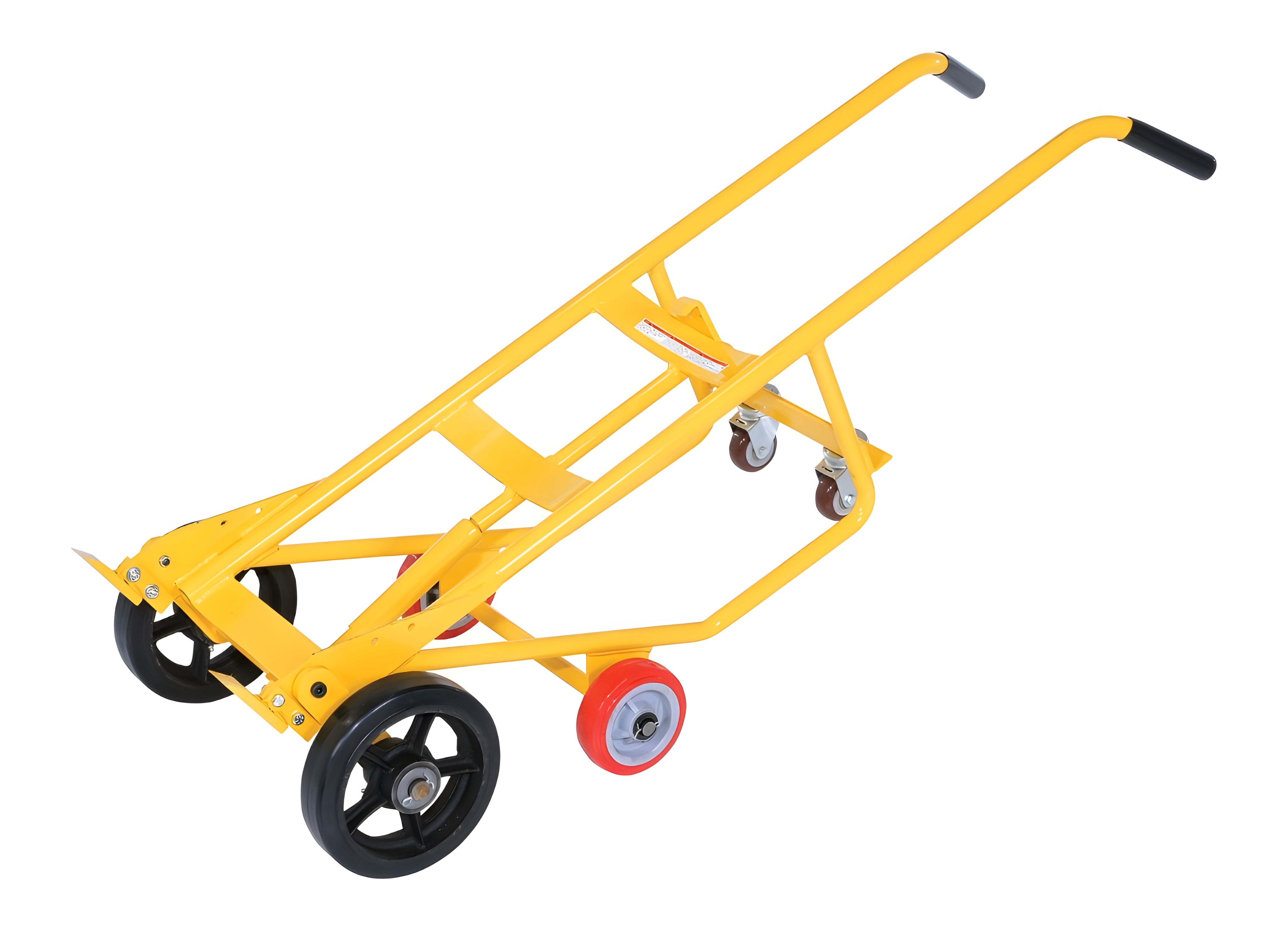

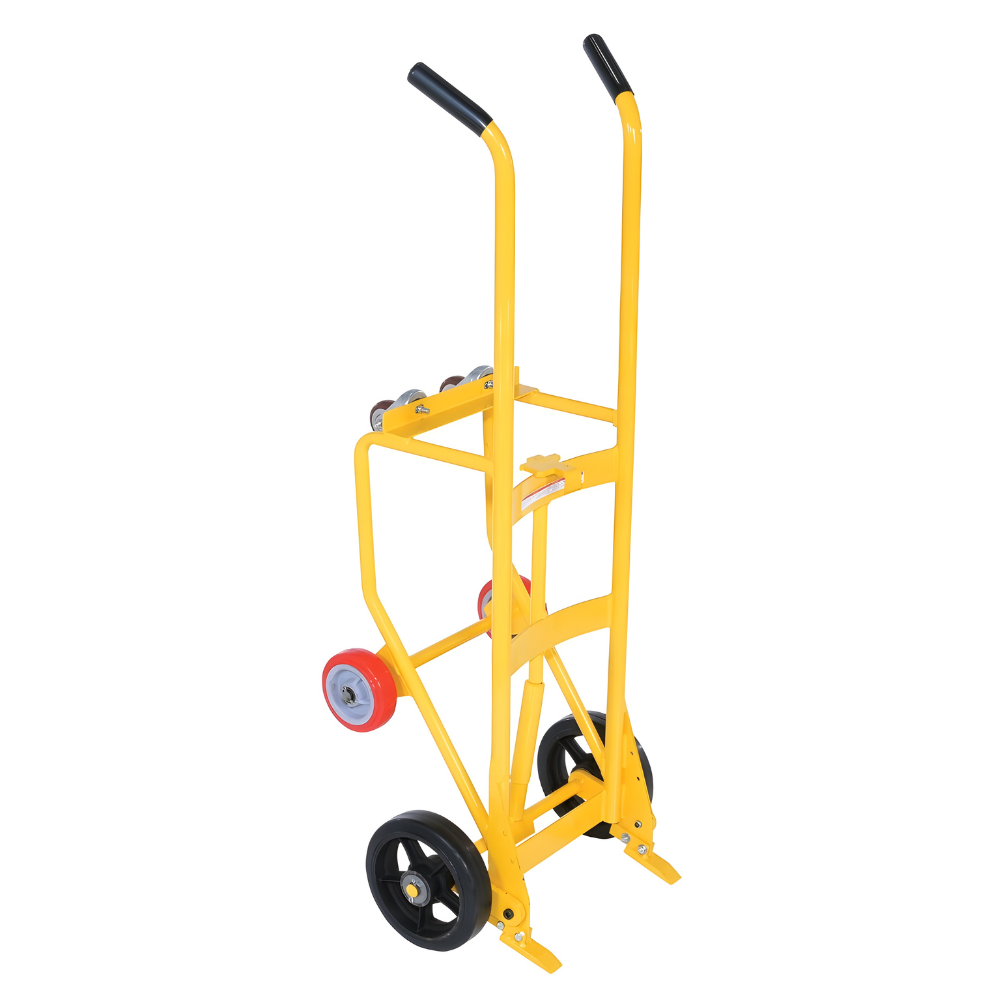

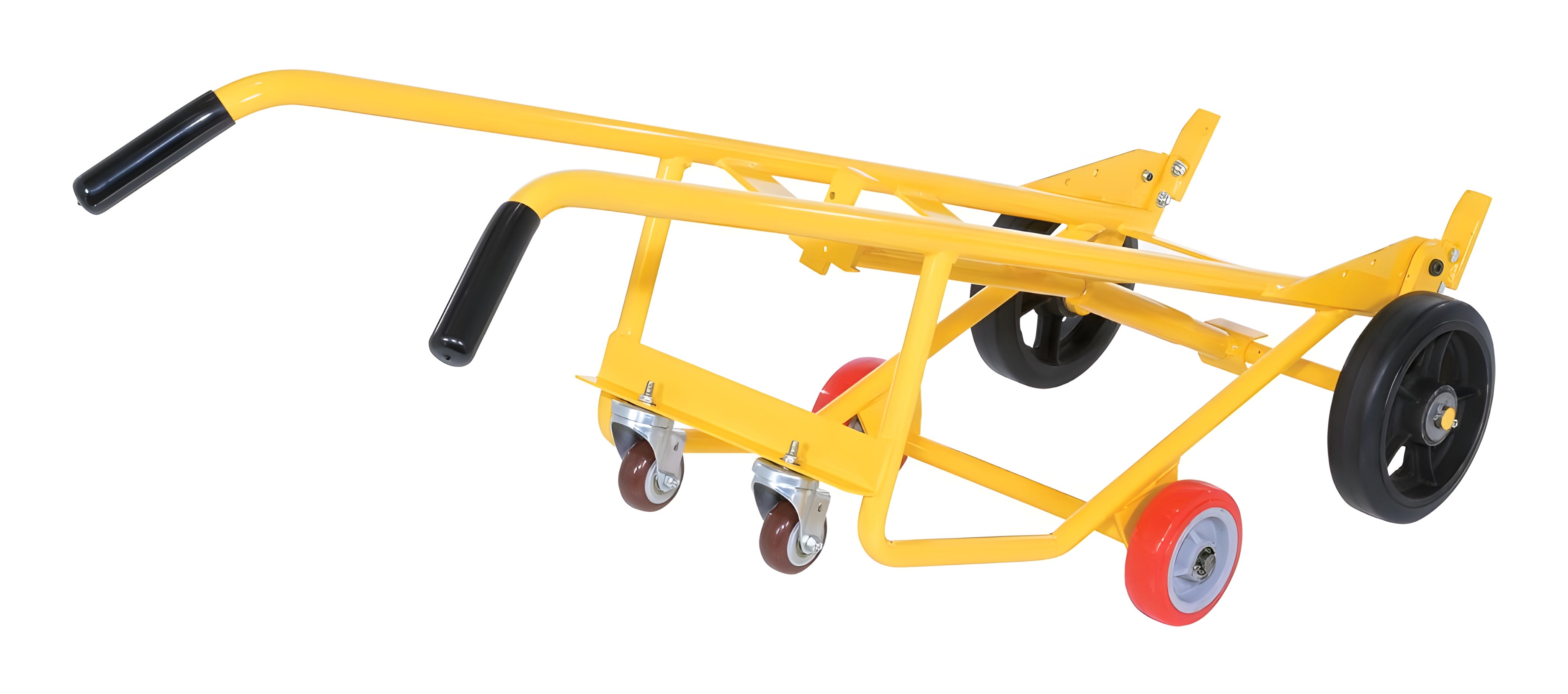

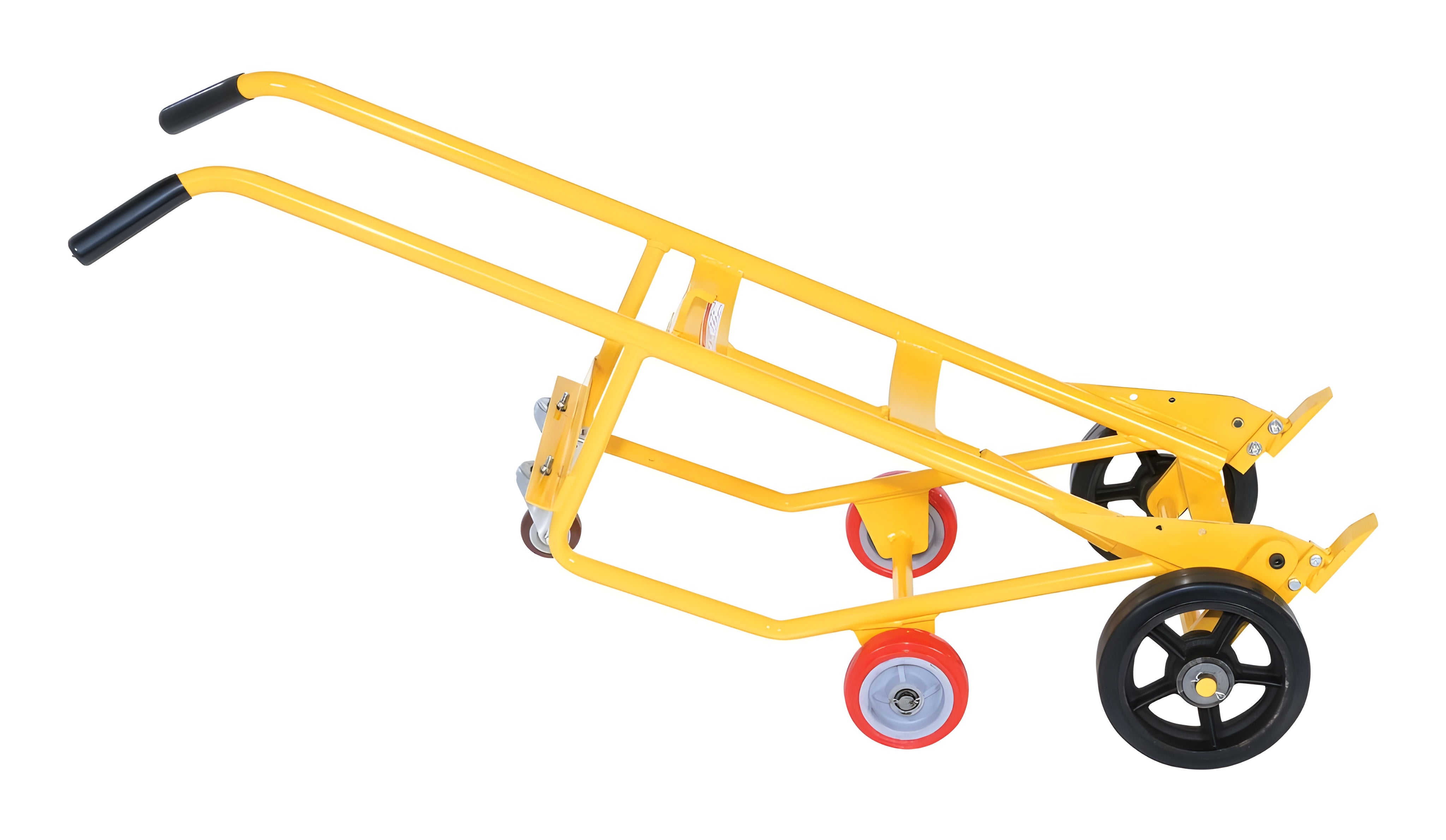

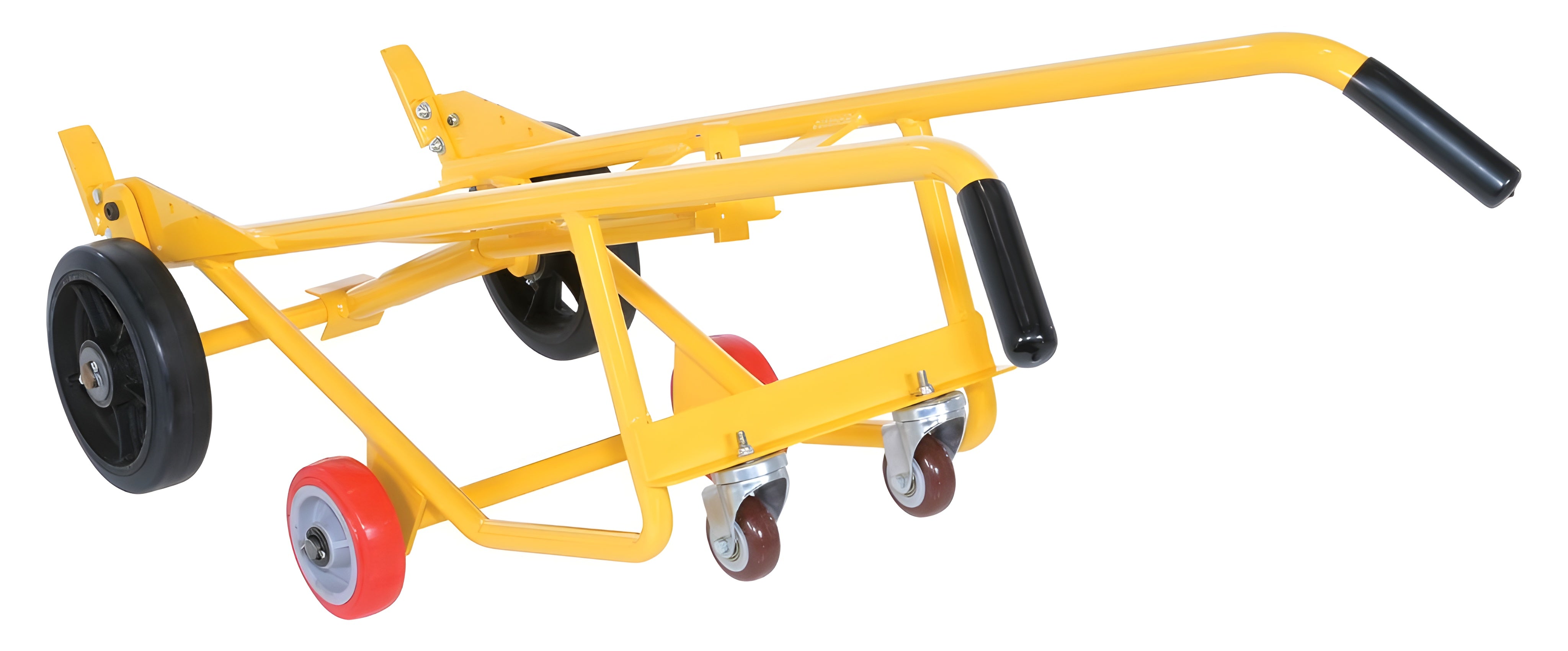

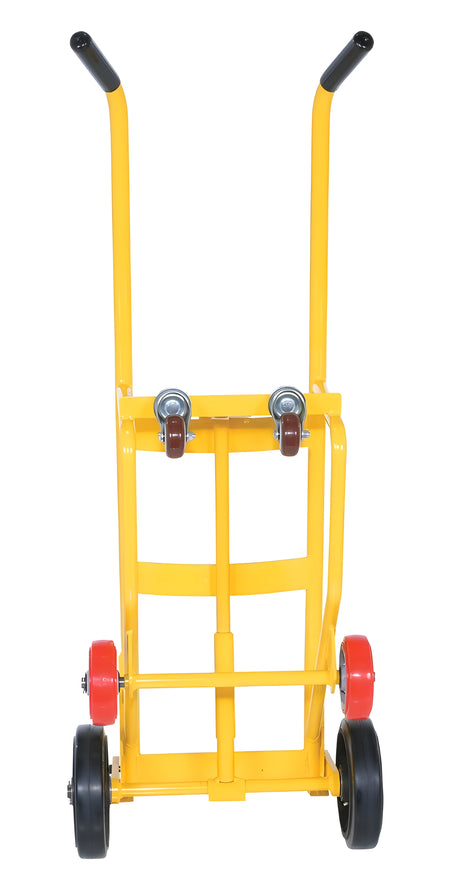

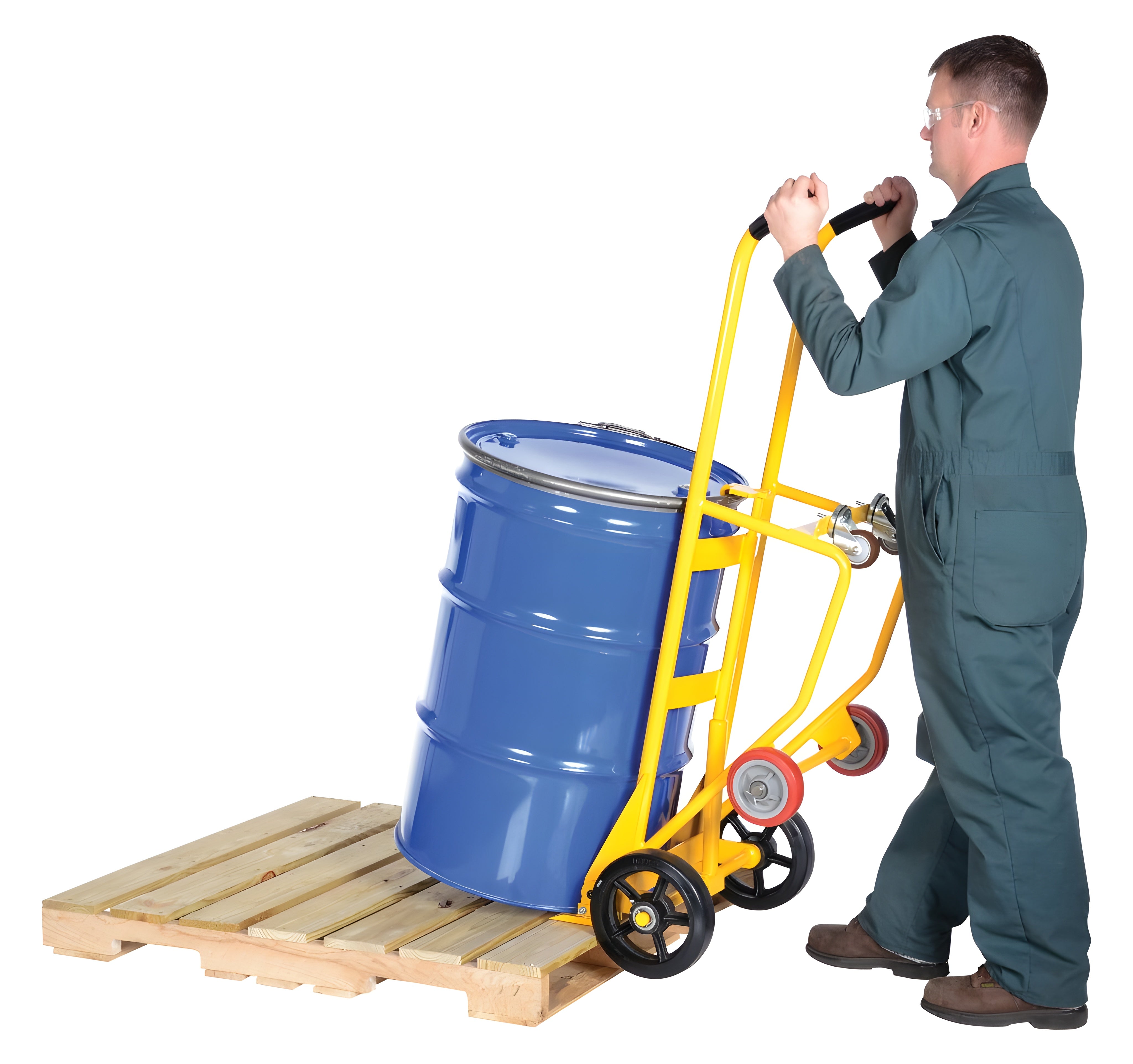

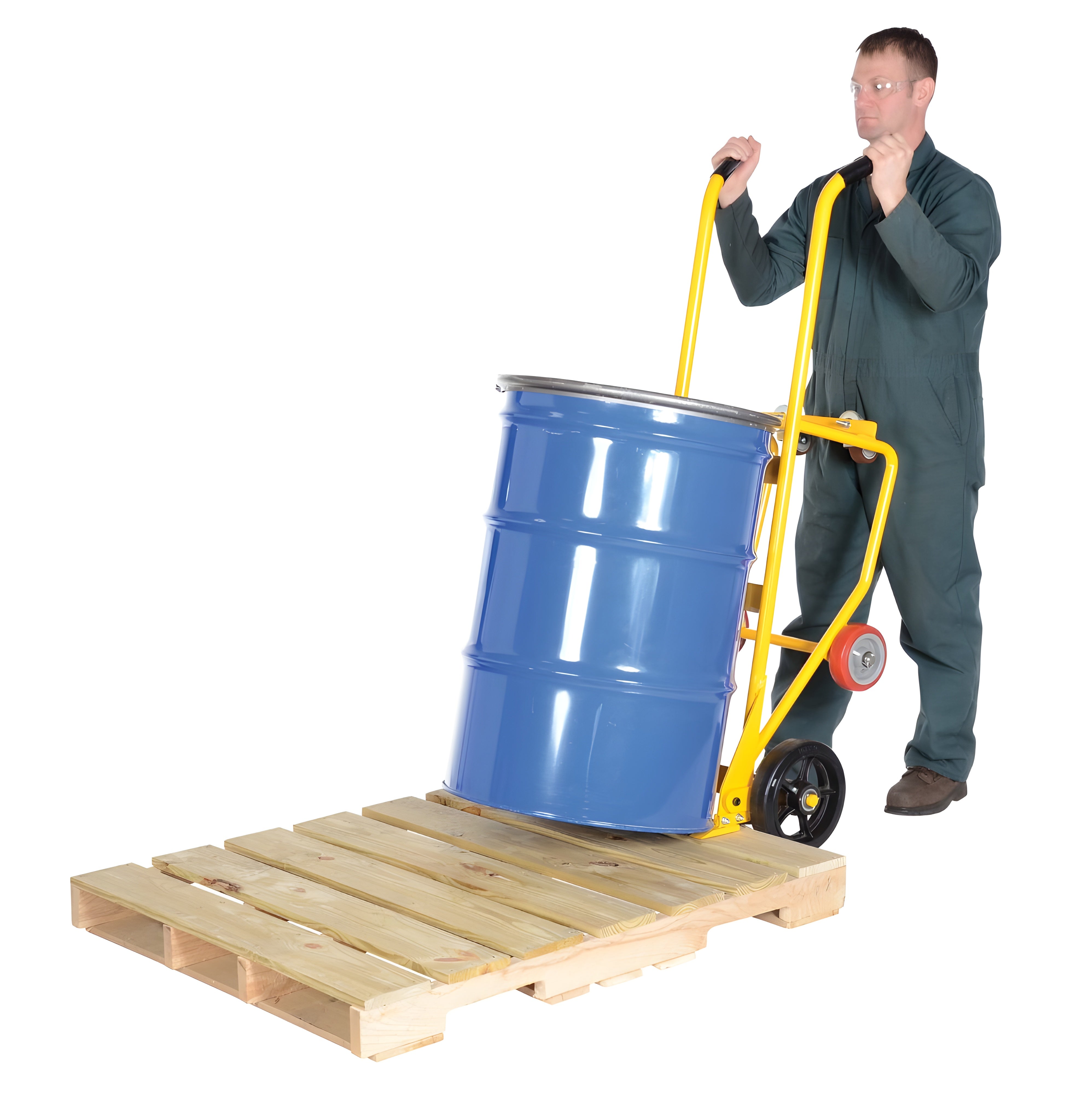

The Vestil RDBT-MR Steel Drum Truck Cradle is a versatile multi-purpose unit that functions as both a drum truck and a cradle. Operators can tip back the unit to transport drums ergonomically on four wheels, or position the drum horizontally for dispensing and storage. This design allows drums to be placed on or removed from pallets with ease. Equipped with a wheeled undercarriage, it ensures smooth repositioning for drainage or storage. A built-in self-storing bung wrench secures drums on the truck and provides convenient access for drum opening. Powder-coated for added durability, this truck is ideal for demanding industrial environments.
  • Model Number: RDBT-MR
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 55 gallon
  • Compatible Drum Material: Steel, Plastic & Fiber
  • Frame Material: Steel
  • Color / Finish: Yellow
  • Nose Plate Depth: 4 in
  • Nose Plate Width: 1.5 in
  • Nose Plate Thickness: 0.5 in
  • Number of Vertical Supports: 2
  • Usable Width: 17.0625 in
  • Drain Height: 12.8125 in
  • Tip Angle: 3°

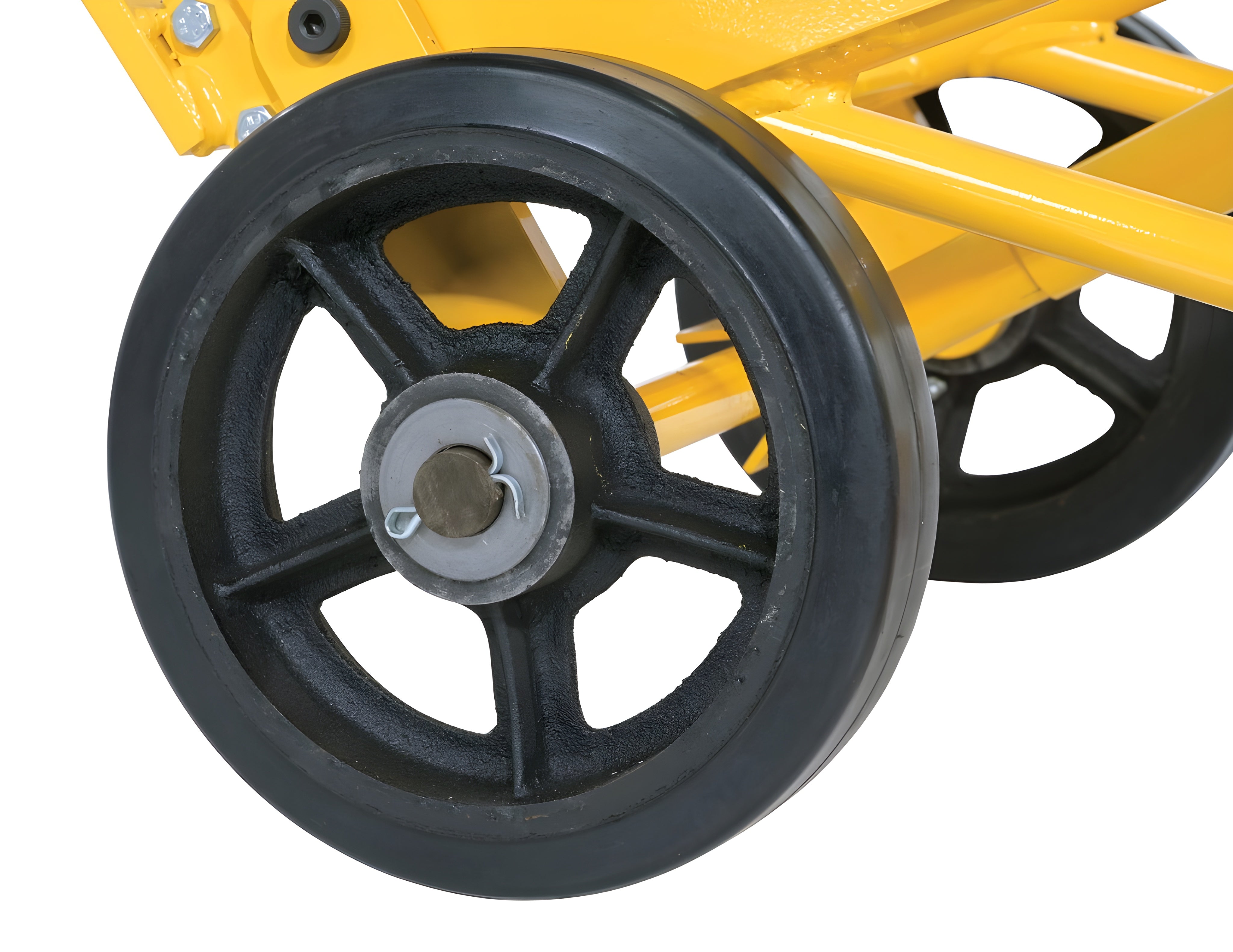

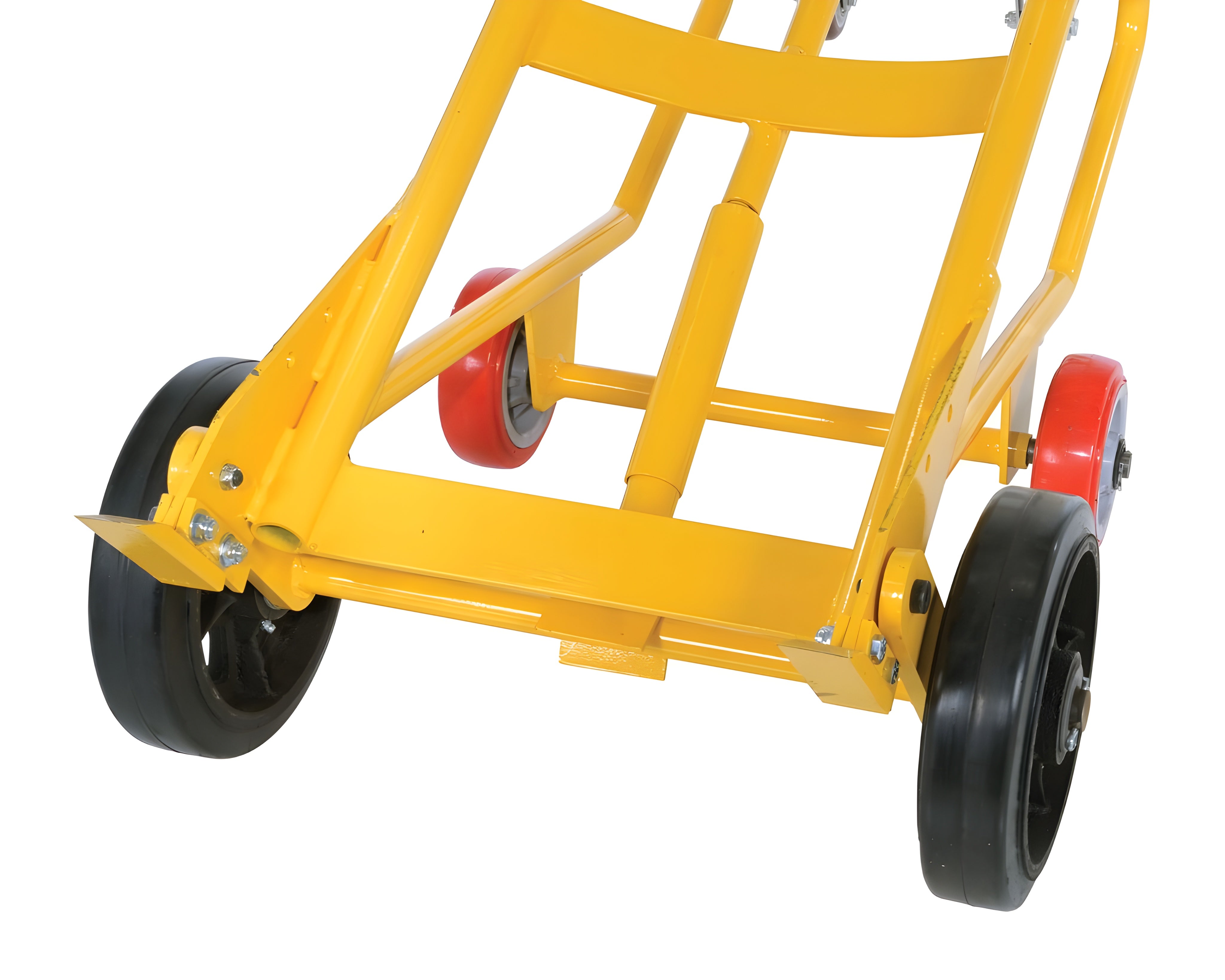

  • Rear Wheel Type: Mold-on-Rubber (2) 10 in × 2.5 in
  • Support Wheel Type: Poly-on-Poly (2) 6 in × 2 in
  • Swivel Caster Type: Poly-on-Poly (2) 3 in × 1.25 in
  • Assembled Dimensions: 20.0625 in L × 23.6875 in W × 60.625 in H, 119 lbs
  • Package Dimensions: 65 in L × 40 in W × 24 in H, 124 lbs

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
