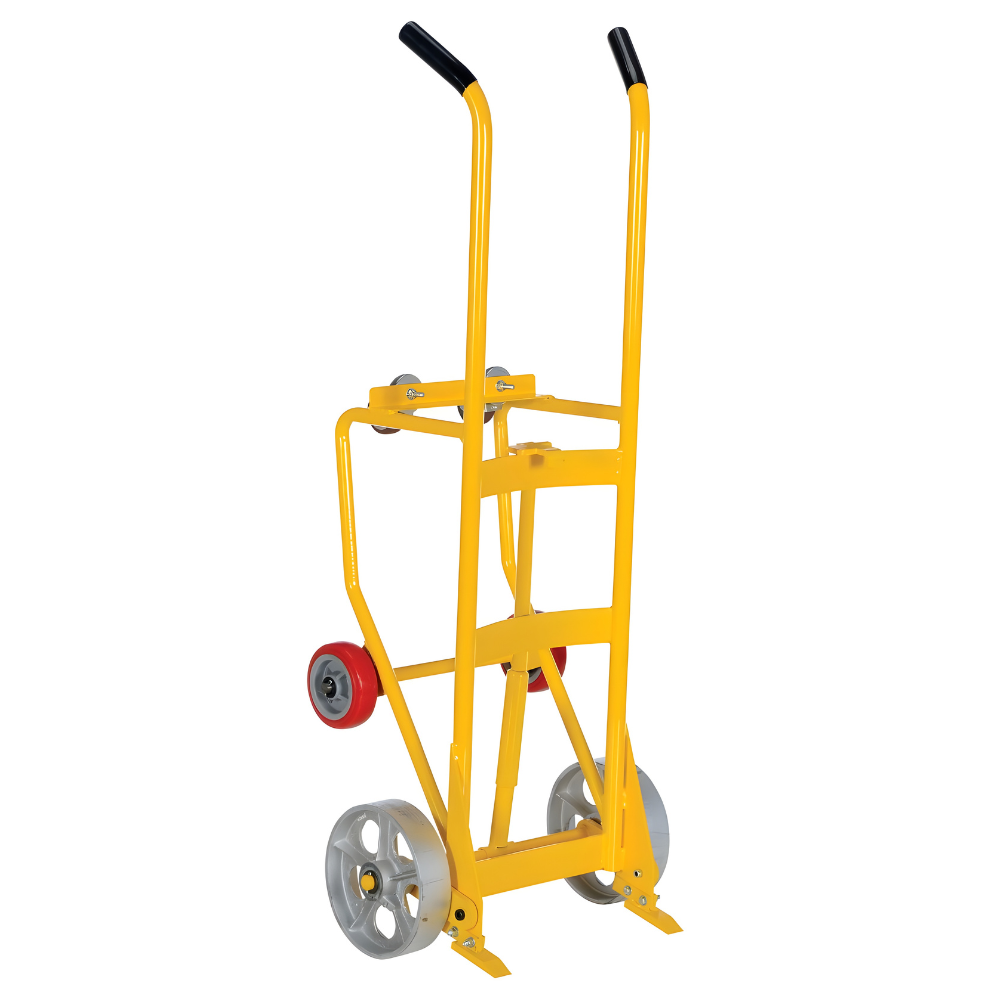

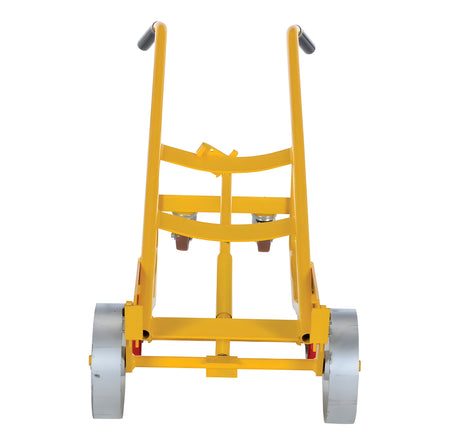

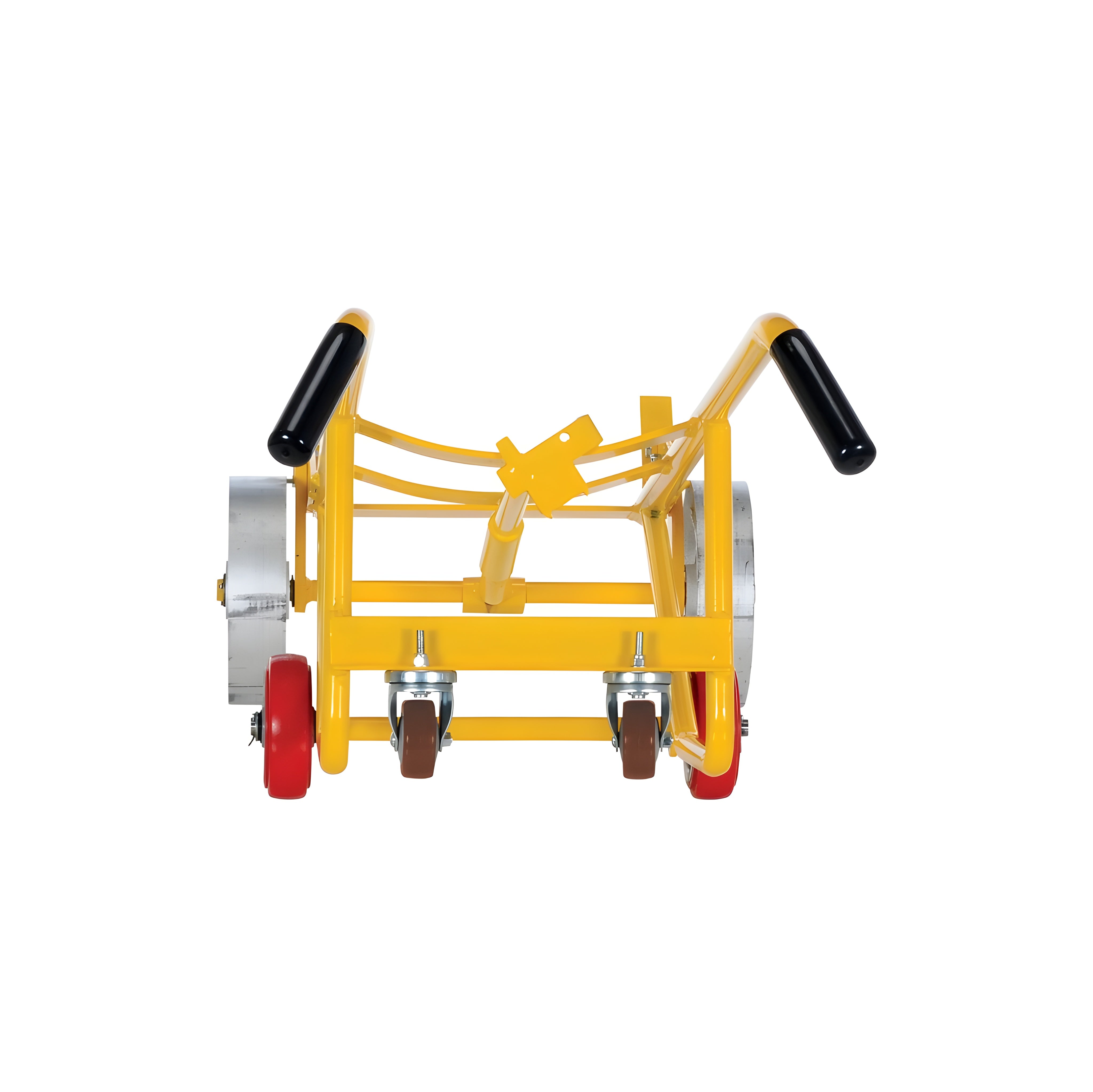

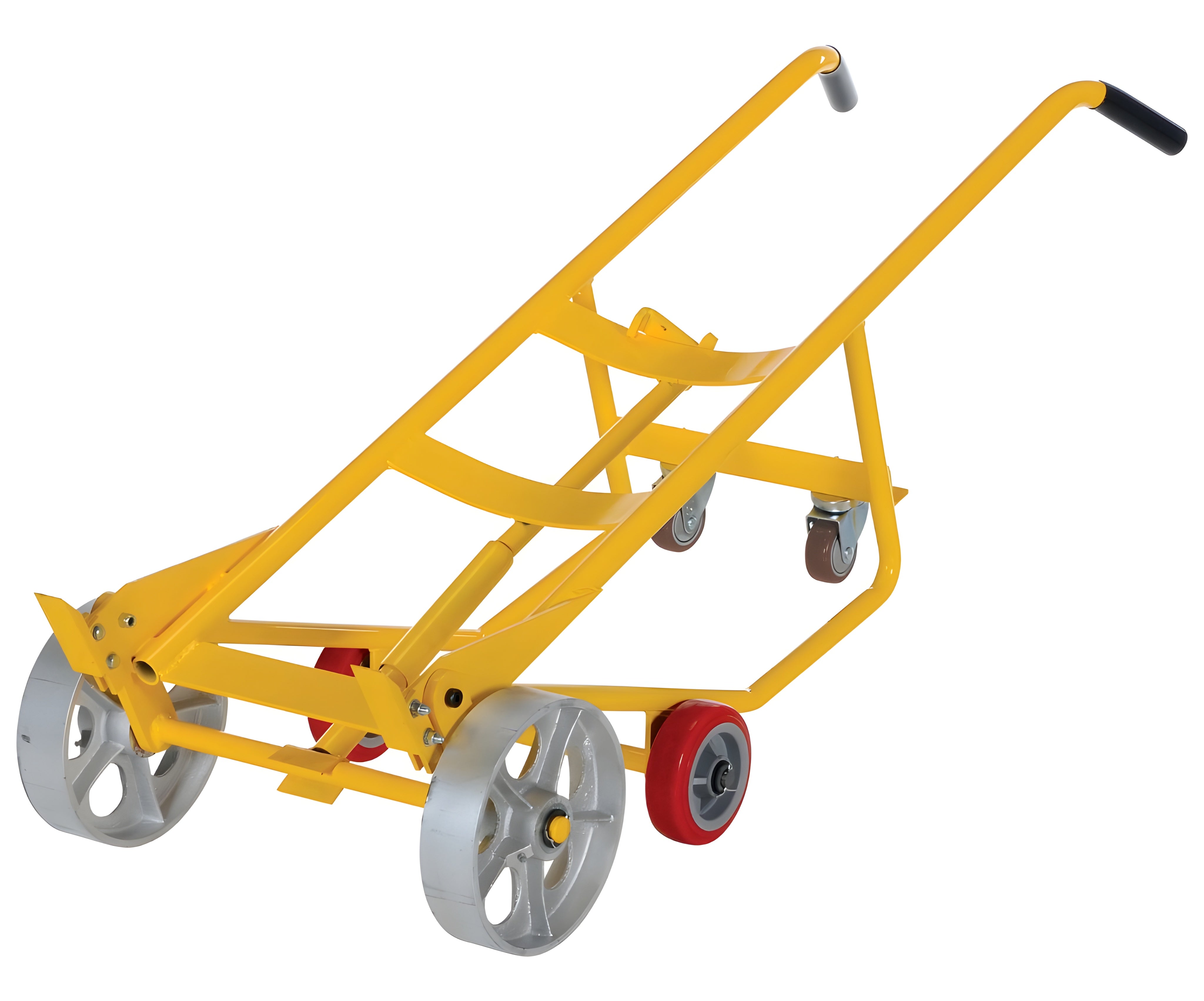

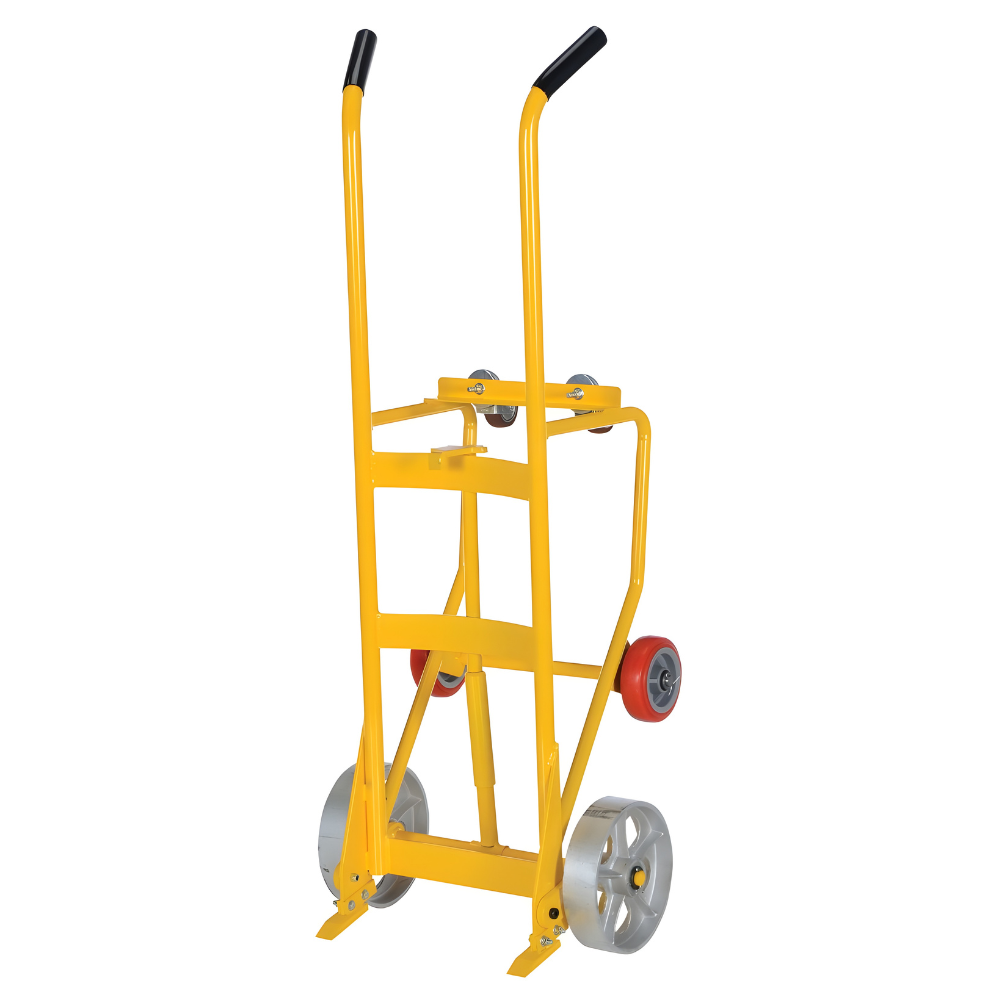

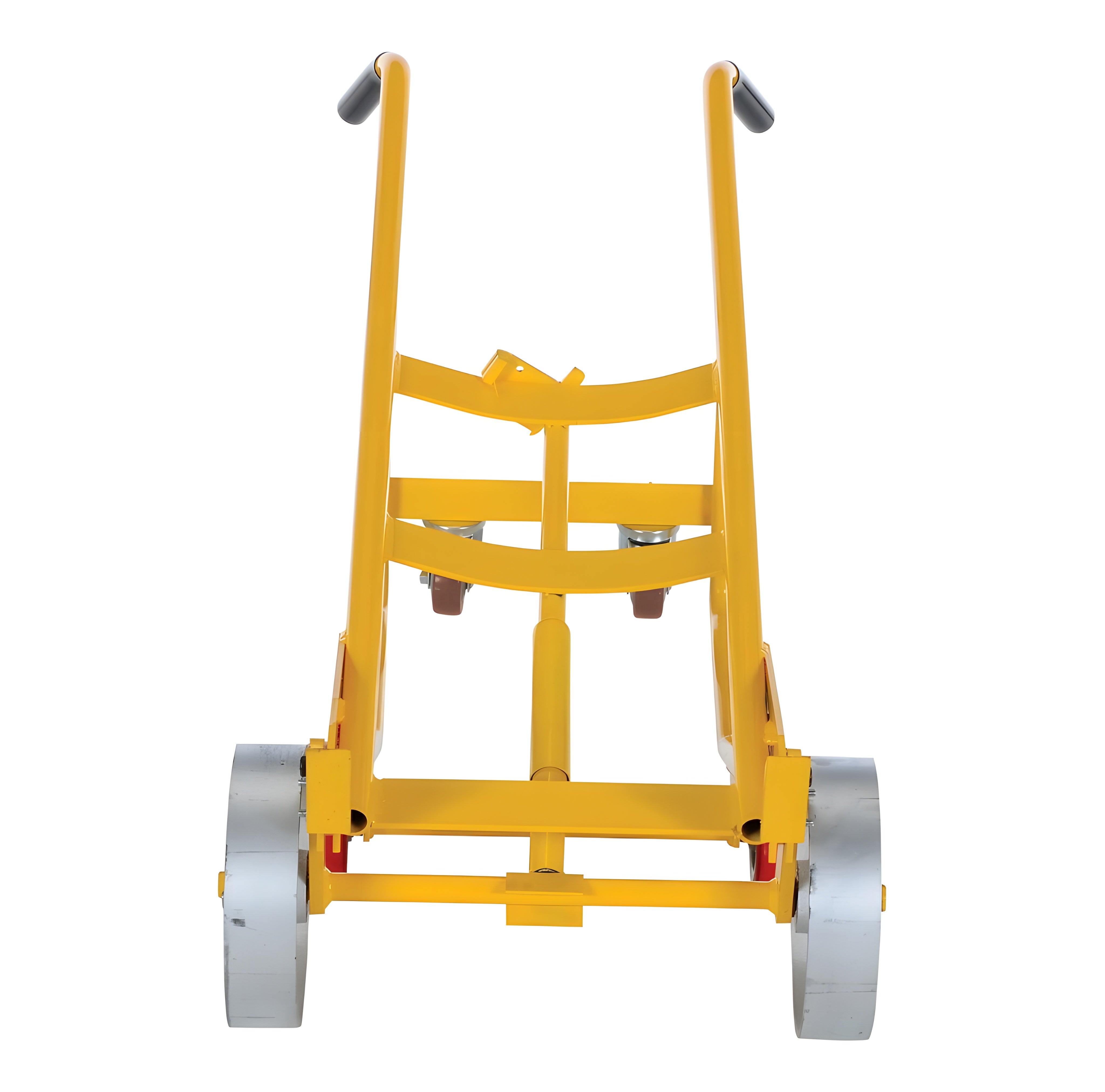

1,000 lb Steel Drum Truck Cradle – Semi-Steel Wheels – RDBT-SS – Vestil

SKU: RDBT-SS
$621.44
Estimated Lead Time:1-3 Days

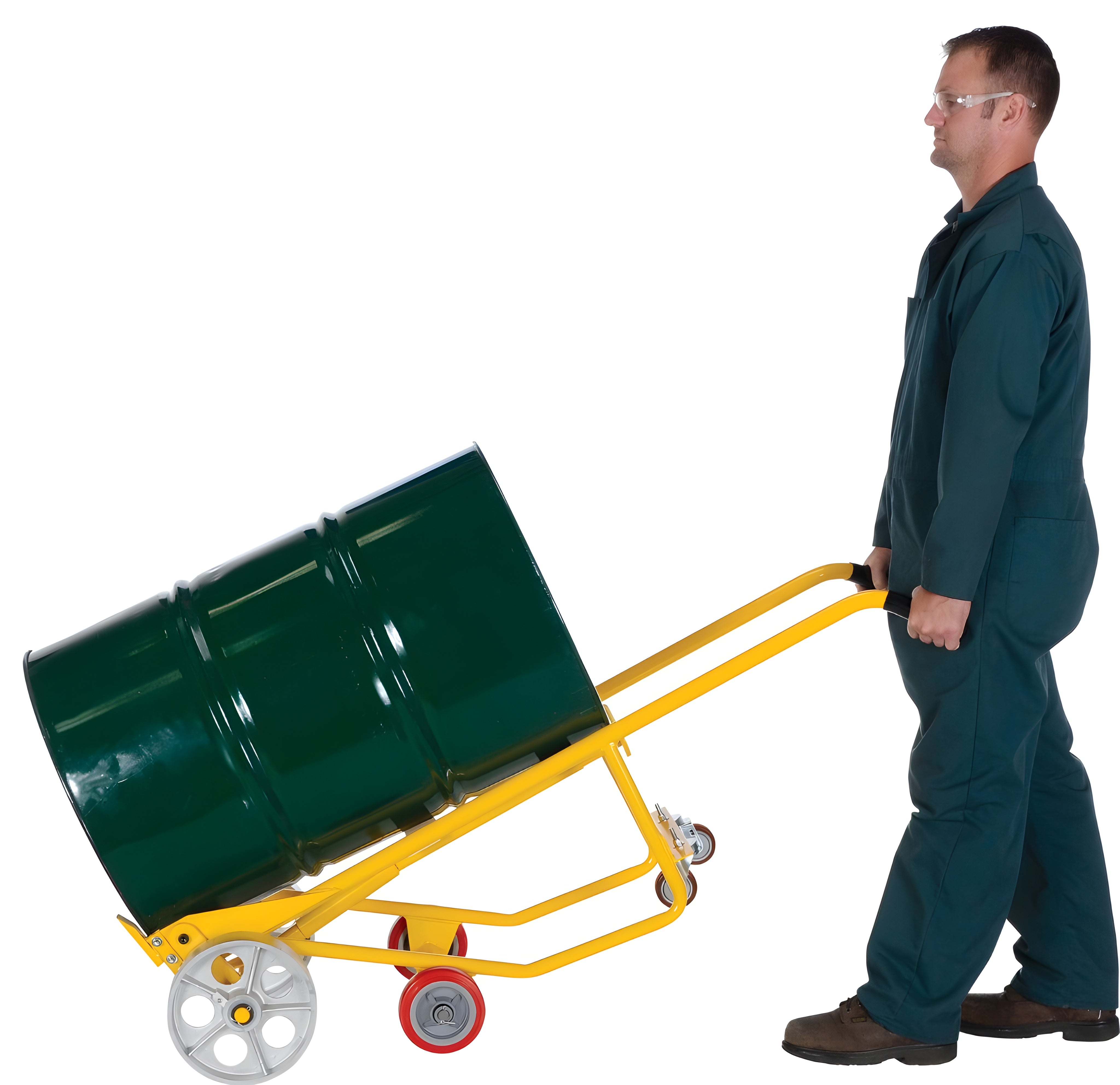

The Vestil Steel Drum Truck Cradle is one of the most versatile drum handling solutions available. This multi-purpose unit allows operators to tip back drums for ergonomic transport on four wheels, while also functioning as a drum cradle for horizontal storage or dispensing.

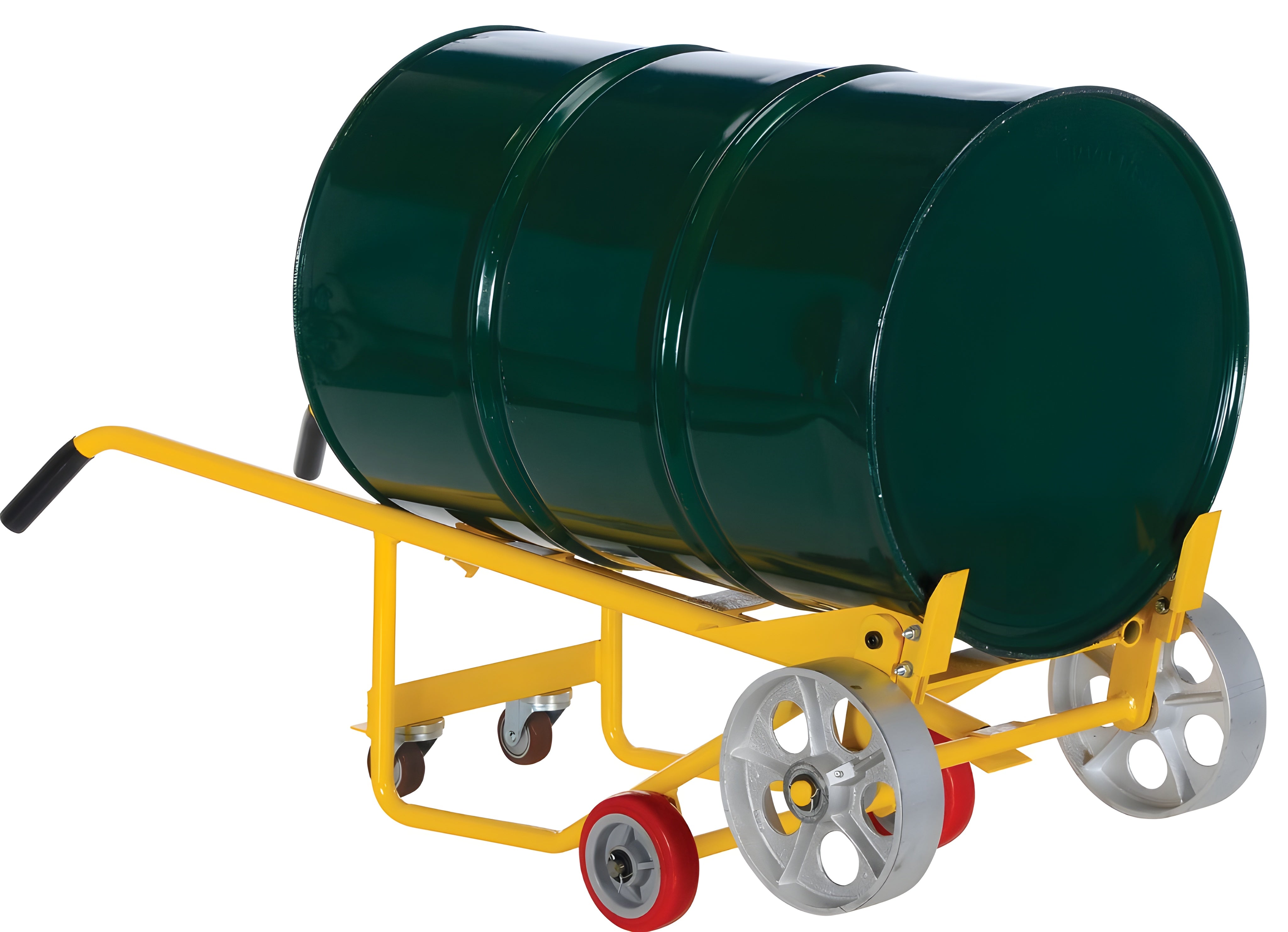

Its innovative design enables the operator to place or retrieve drums directly from pallets. A wheeled undercarriage keeps drums secure in a horizontal position for drainage, while an integral self-storing bung wrench both opens drums and helps keep them snug on the truck. Powder-coated steel construction ensures durability and long service life.
  • Model Number: RDBT-SS
  • Capacity: 1,000 lbs
  • Compatible Drum Size: 55-gallon
  • Compatible Drum Material: Steel, Plastic & Fiber
  • Material: Steel
  • Drain Height: 12.8125 in
  • Tip Angle: 3°
  • Nose Plate Depth: 4 in
  • Nose Plate Width: 1.5 in
  • Nose Plate Thickness: 0.5 in
  • Vertical Supports: 2
  • Usable Width: 17.0625 in
  • Wheel Type: Semi-Steel (2 wheels), Poly-on-Poly (4 wheels)
  • Rear Wheel Diameter: 10 in
  • Rear Wheel Width: 2.5 in
  • Mid Wheel Diameter: 6 in
  • Mid Wheel Width: 2 in
  • Swivel Caster Diameter: 3 in
  • Swivel Caster Width: 1.25 in
  • Assembled Dimensions: 20.0625 in L × 23.6875 in W × 60.625 in H, 128 lbs
  • Package Dimensions: 64 in L × 40 in W × 26 in H, 134 lbs

Warranty (PDF)

Manufacturer Warranty: 90 Days Limited – Parts
