1,000 Lb. Steel DC Powered Portable Hydraulic Drum Dumper – 48" Dump Height – HDD-48-10-P-DC – Vestil

SKU: HDD-48-10-P-DC
$4,735.19
Estimated Lead Time:6-8 Weeks

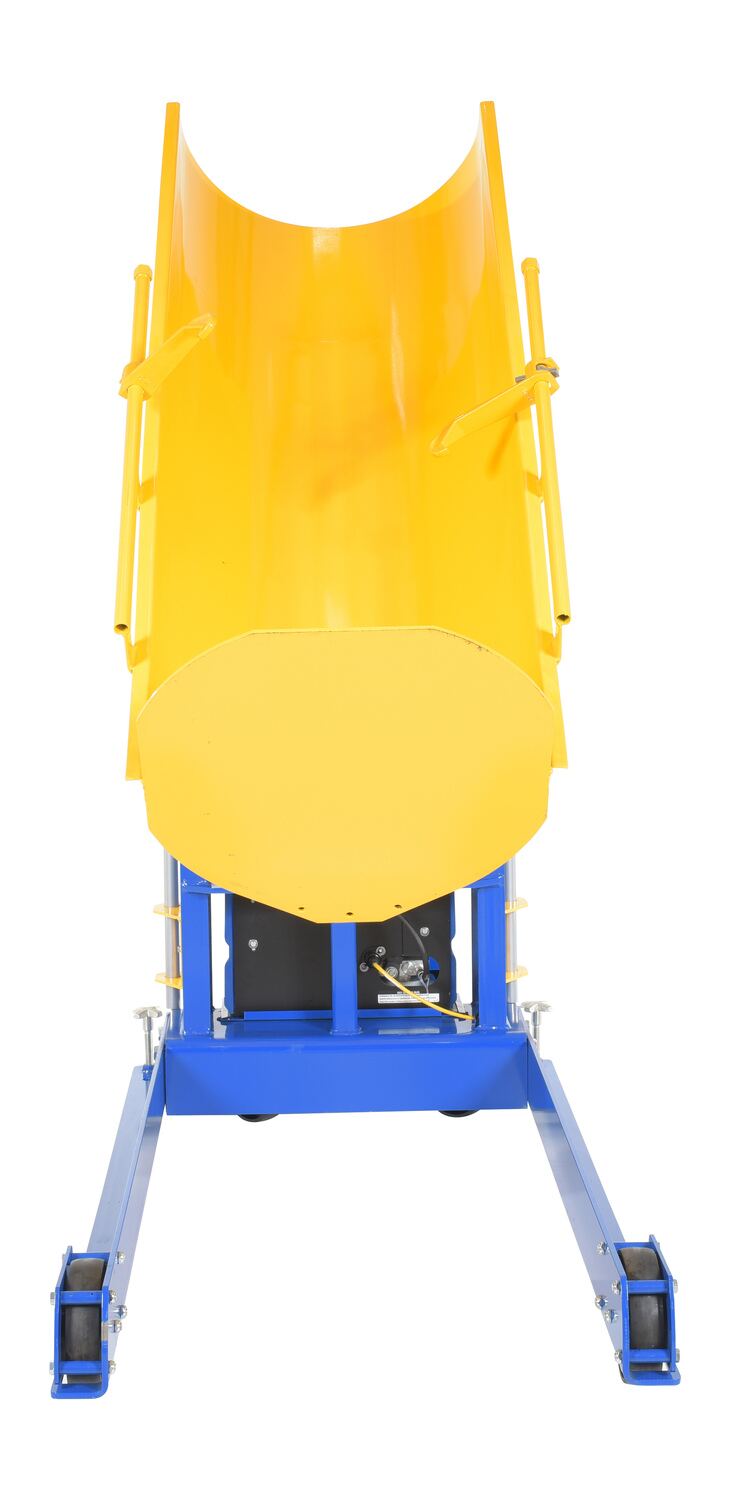

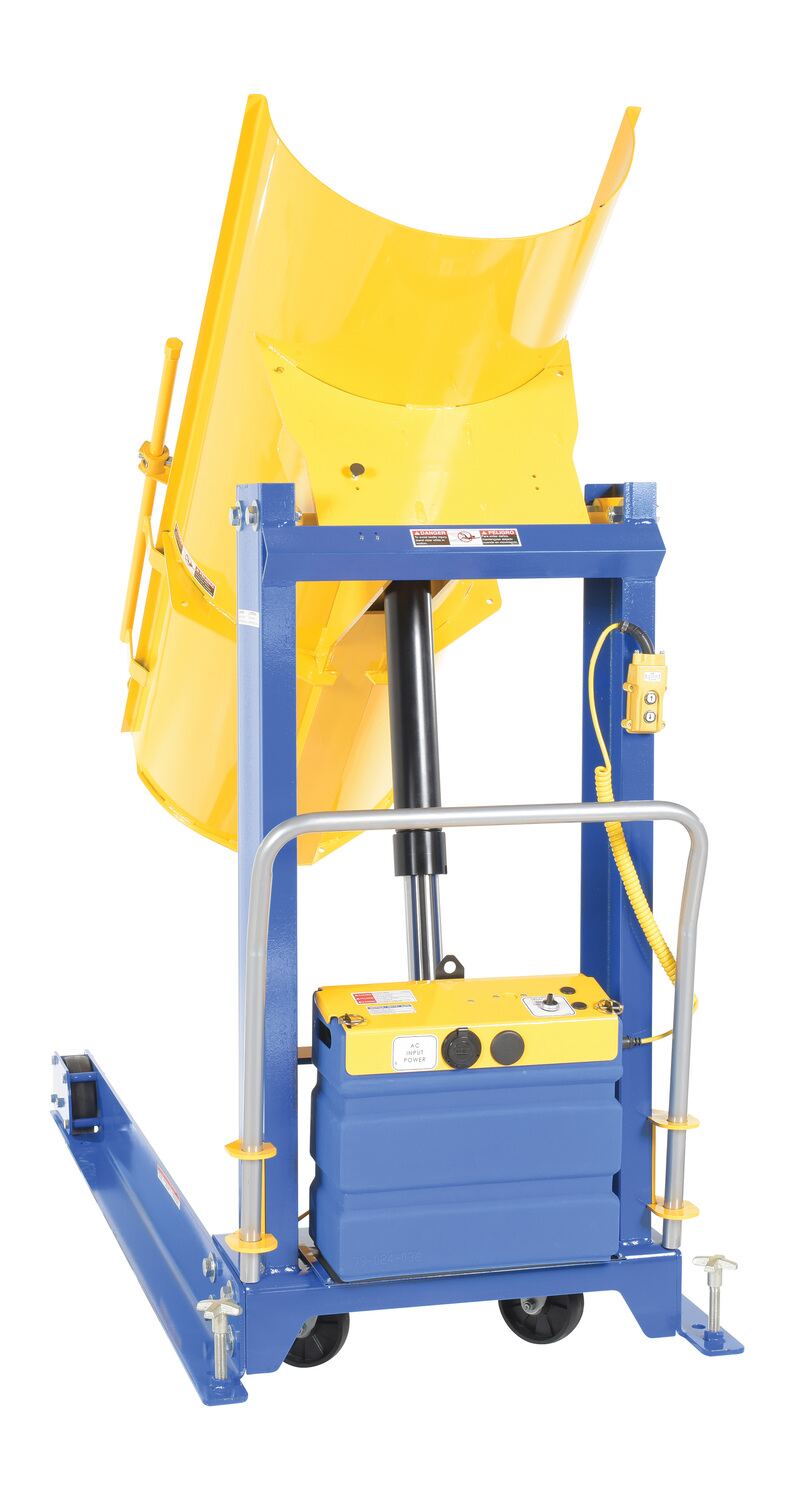

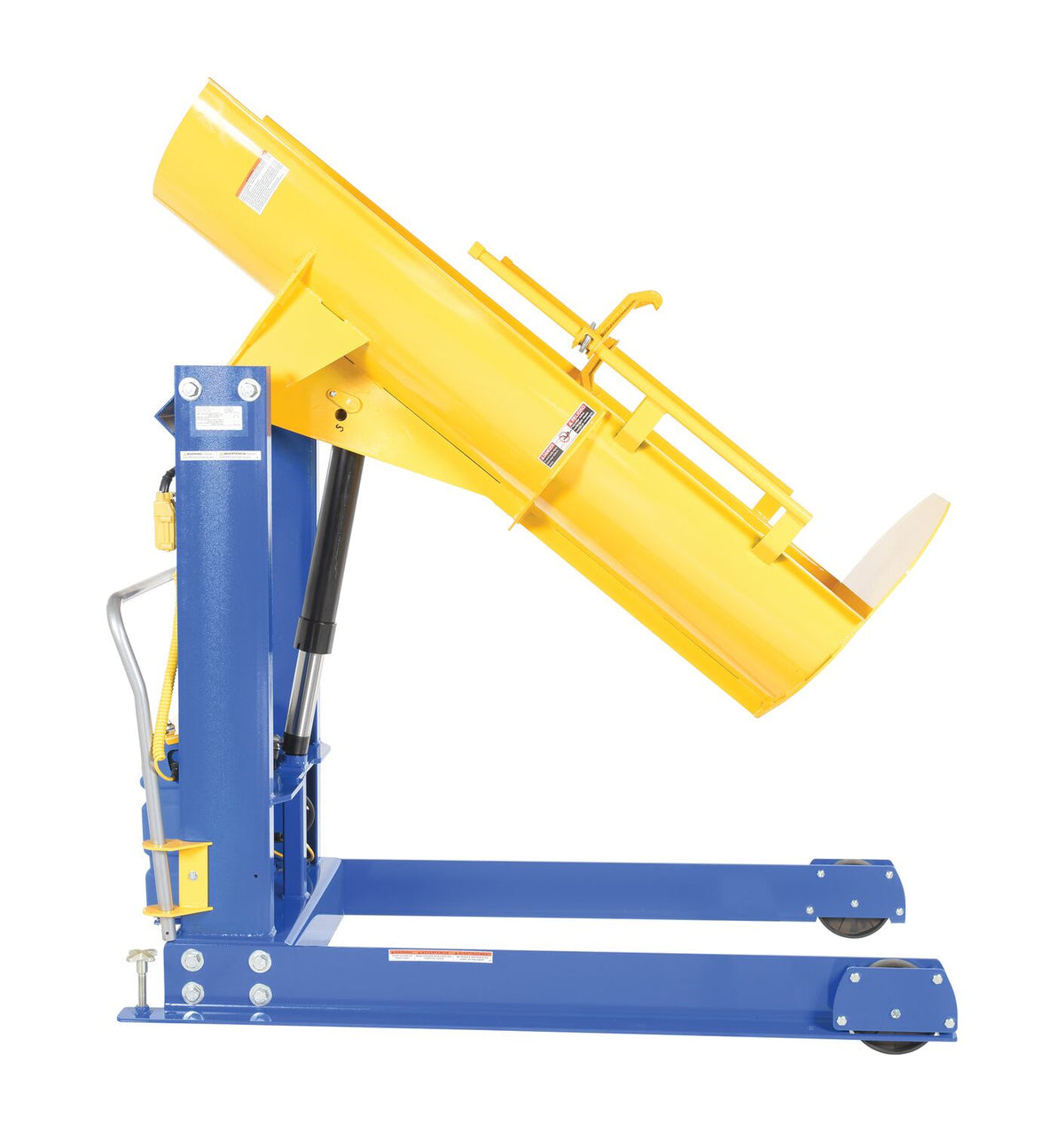

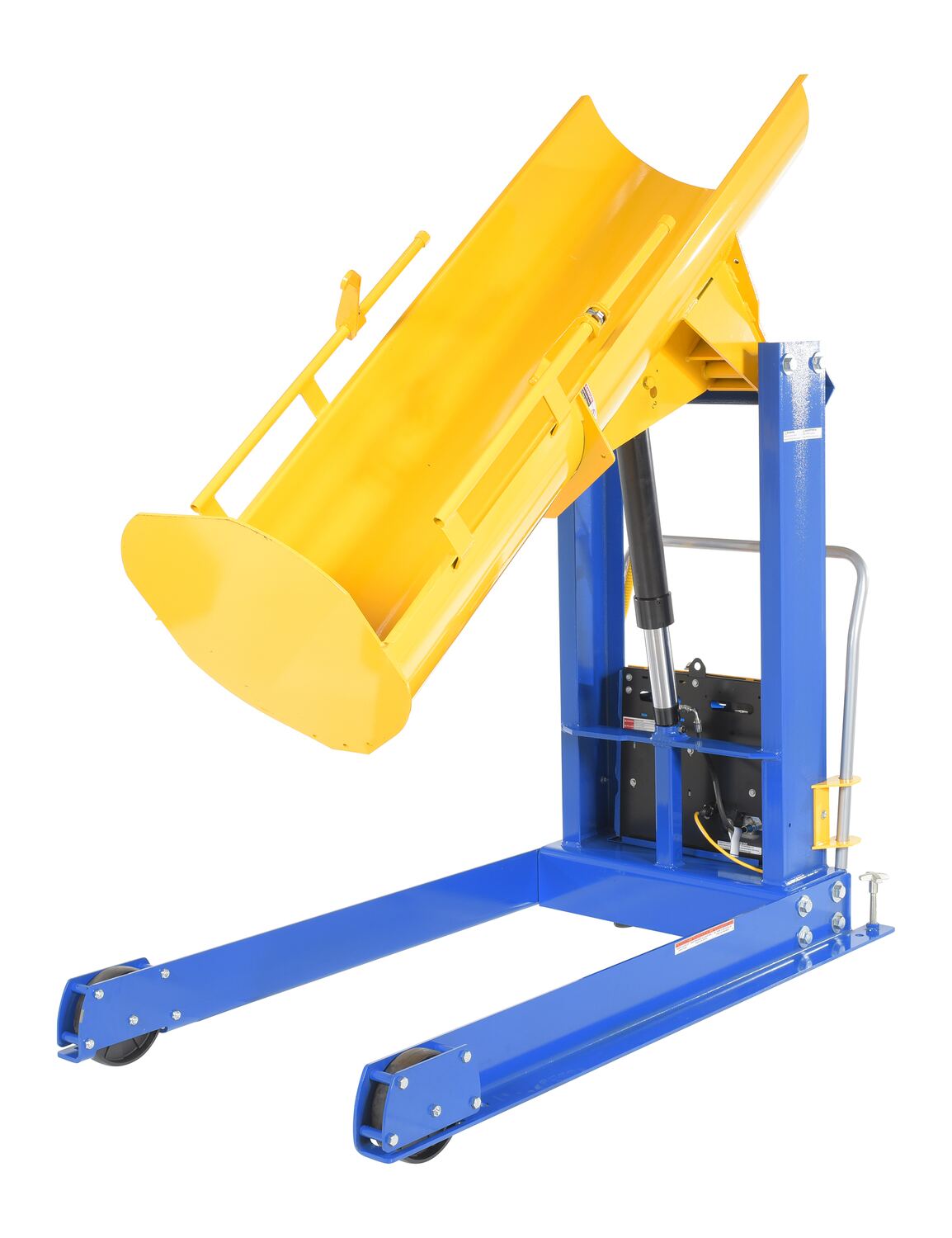

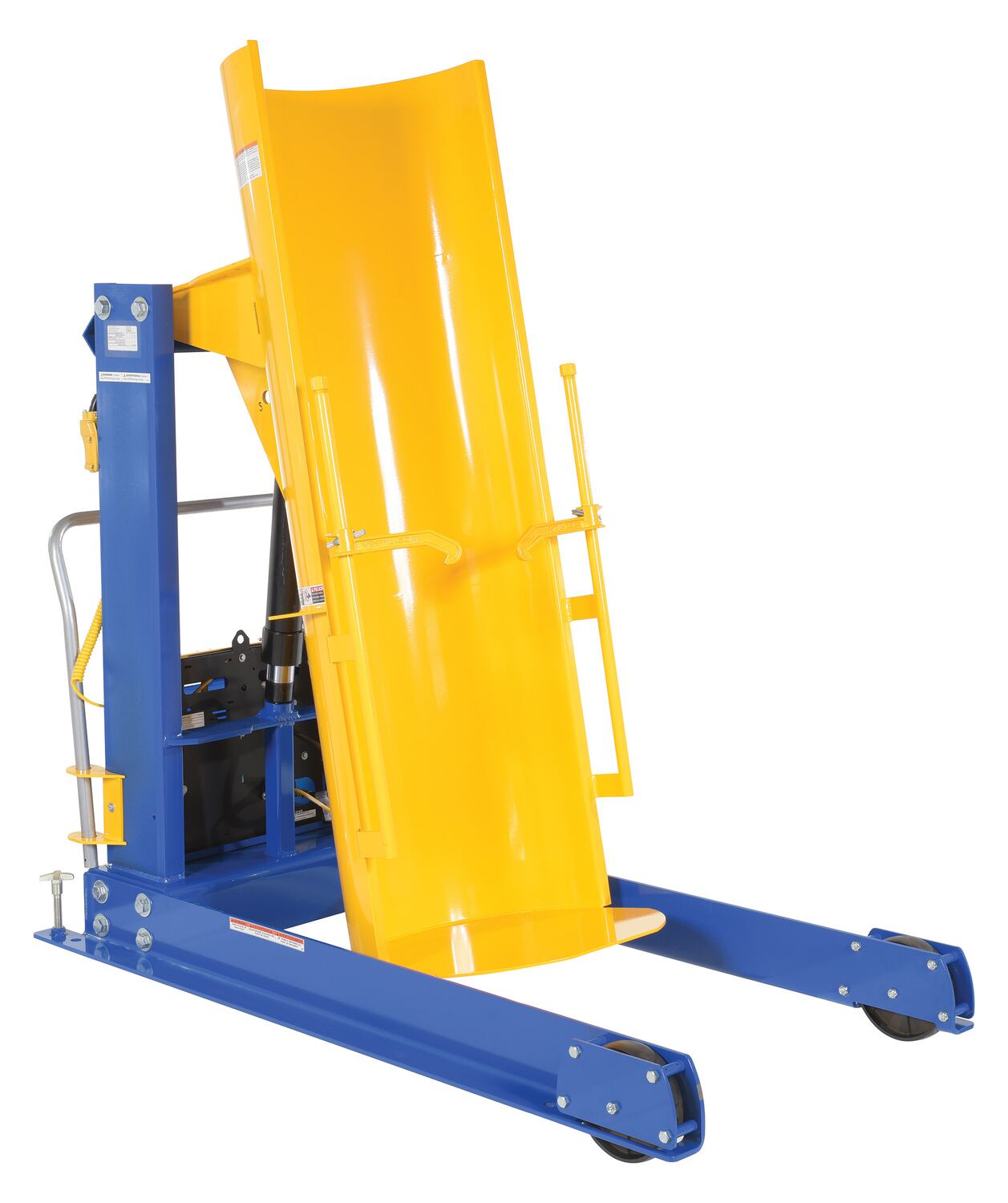

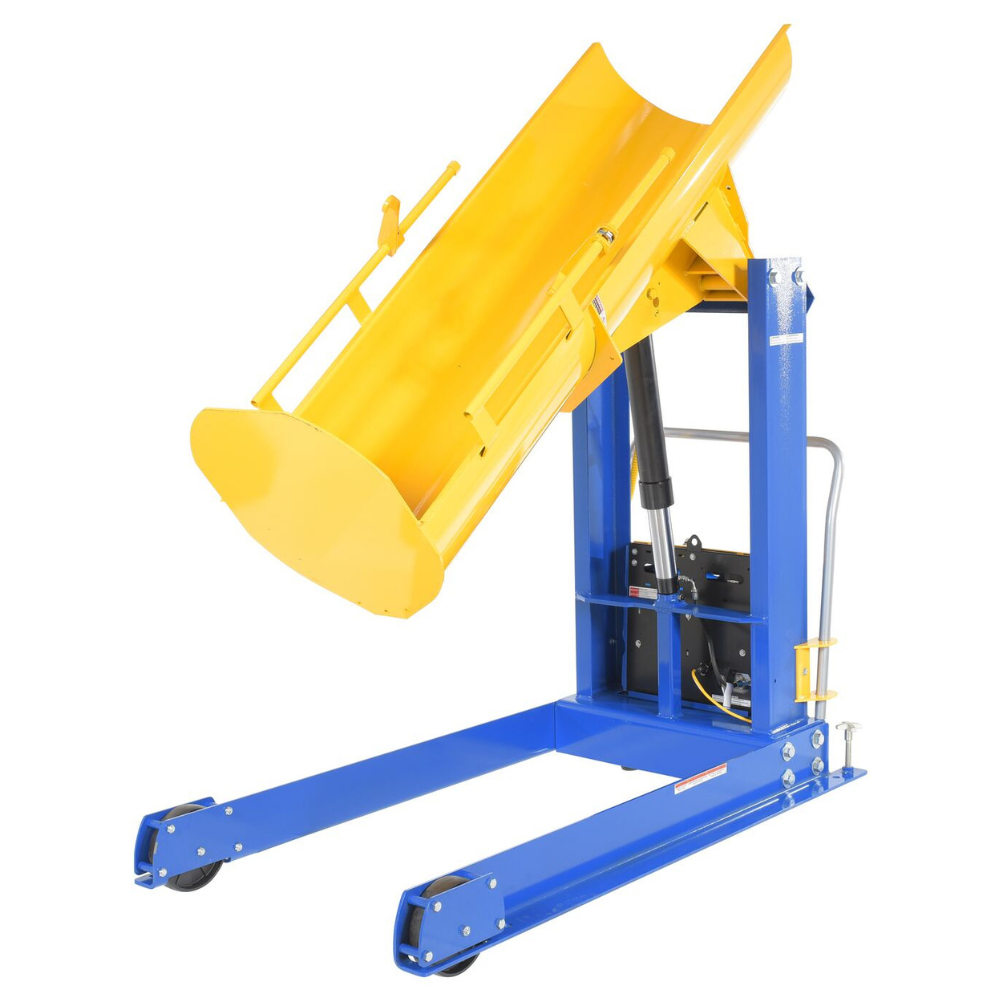

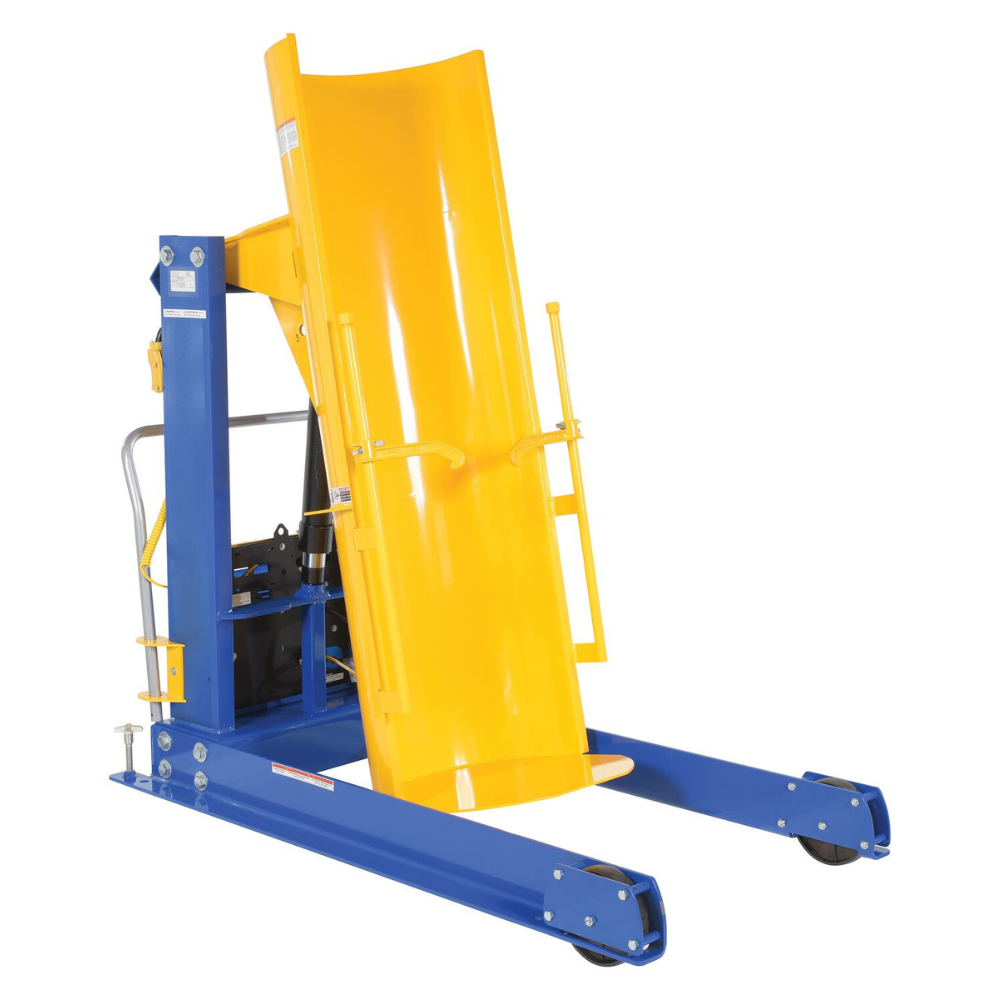

The Vestil Steel DC Powered Portable Hydraulic Drum Dumper provides a safe and efficient way to dump heavy plastic, steel, and fiber drums. Built with a solid steel chute and all-steel construction, this portable dumper features casters with floor lock screws for mobility and stability.

It is powered by a 12V DC lead acid battery and includes adjustable drum restraints, an upper travel limit switch, and an emergency brass safety velocity fuse. Drum rotation can be stopped at any point, and the hand-held control provides flexible operation.
  • Model Number: HDD-48-10-P-DC
  • Capacity: 1,000 lbs
  • Dump Height: 48 in
  • Overall Lowered Height: 72.5 in
  • Overall Raised Height: 116.75 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Diameter Range: 16.5 in – 23.5 in
  • Drum Height Range: 27.5 in – 39.5 in
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Handheld Control: 2-function, 18–90 in coil cord
  • Battery: 12V lead acid, 41 lbs
  • Casters: (2) 8 in × 2 in rigid, (2) 6 in × 2 in swivel – glass filled nylon
  • Assembled Dimensions: 71.5 in D × 36 in W × 72.5 in H, 759 lbs
  • Package Dimensions: 83 in D × 41 in W × 81 in H, 850 lbs
  • Material: Steel

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
