1,000 Lb. Steel DC Powered Portable Hydraulic Drum Dumper – 36" Dump Height – HDD-36-10-P-DC – Vestil

SKU: HDD-36-10-P-DC
$4,452.13
Estimated Lead Time:4-6 Weeks

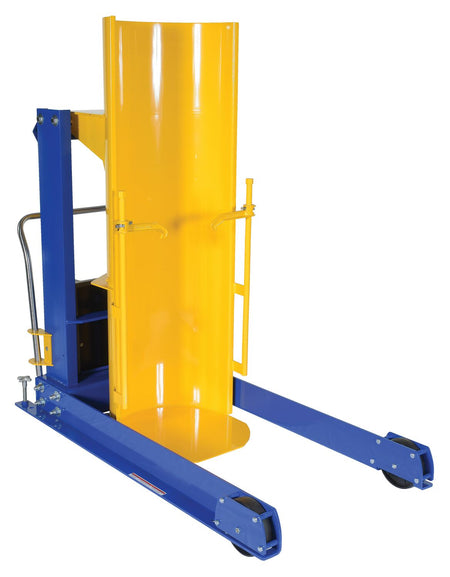

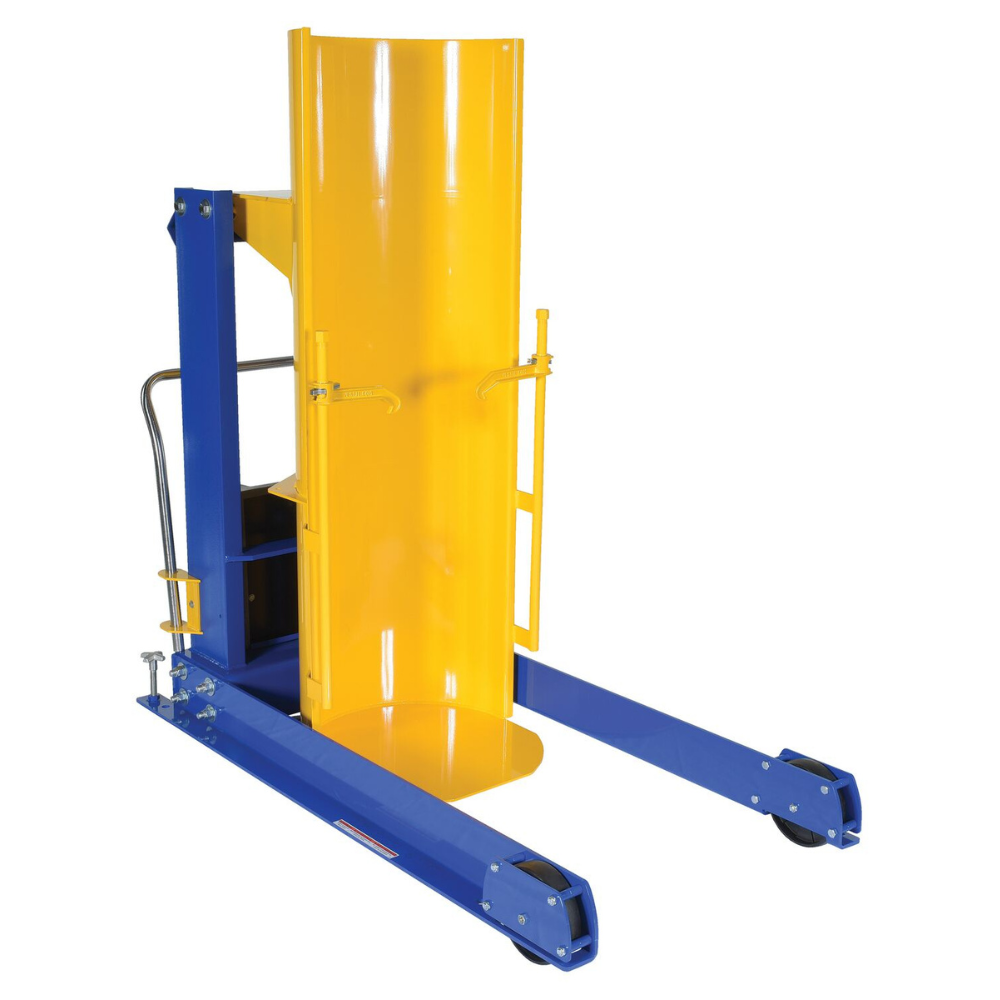

The Vestil Steel DC Powered Portable Hydraulic Drum Dumper is designed for safely and efficiently dumping heavy drums. Built from all-steel construction with a solid steel chute, this unit works with plastic, steel, and fiber drums. The portable design features casters with floor lock screws for mobility and stability, while built-in safety features include an upper travel limit switch and an emergency brass safety velocity fuse.

Powered by a 12V lead acid battery, the dumper includes adjustable vertical drum restraints and a 2-function handheld control. Drum rotation can be stopped at any point for added operator control.
  • Model Number: HDD-36-10-P-DC
  • Capacity: 1,000 lbs
  • Dump Height: 36 in
  • Overall Lowered Height: 63.75 in
  • Overall Raised Height: 96 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Diameter Range: 16.5 in – 23.5 in
  • Drum Height Range: 27.5 in – 39.5 in
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Handheld Control: 2-function, 18–90 in coil cord
  • Battery: 12V lead acid, 41 lbs
  • Casters: (2) 8 in × 2 in rigid, (2) 6 in × 2 in swivel – glass filled nylon
  • Assembled Dimensions: 61.5 in D × 36 in W × 63.75 in H, 699 lbs
  • Package Dimensions: 64 in D × 41 in W × 65 in H, 782 lbs
  • Material: Steel

User Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
