1,000 Lb. Stainless Steel Stationary Hydraulic Drum Dumper – 48" Dump Height – HDD-48-10-S-SSC – Vestil

SKU: HDD-48-10-S-SSC
$6,899.01
Estimated Lead Time:7-9 Weeks

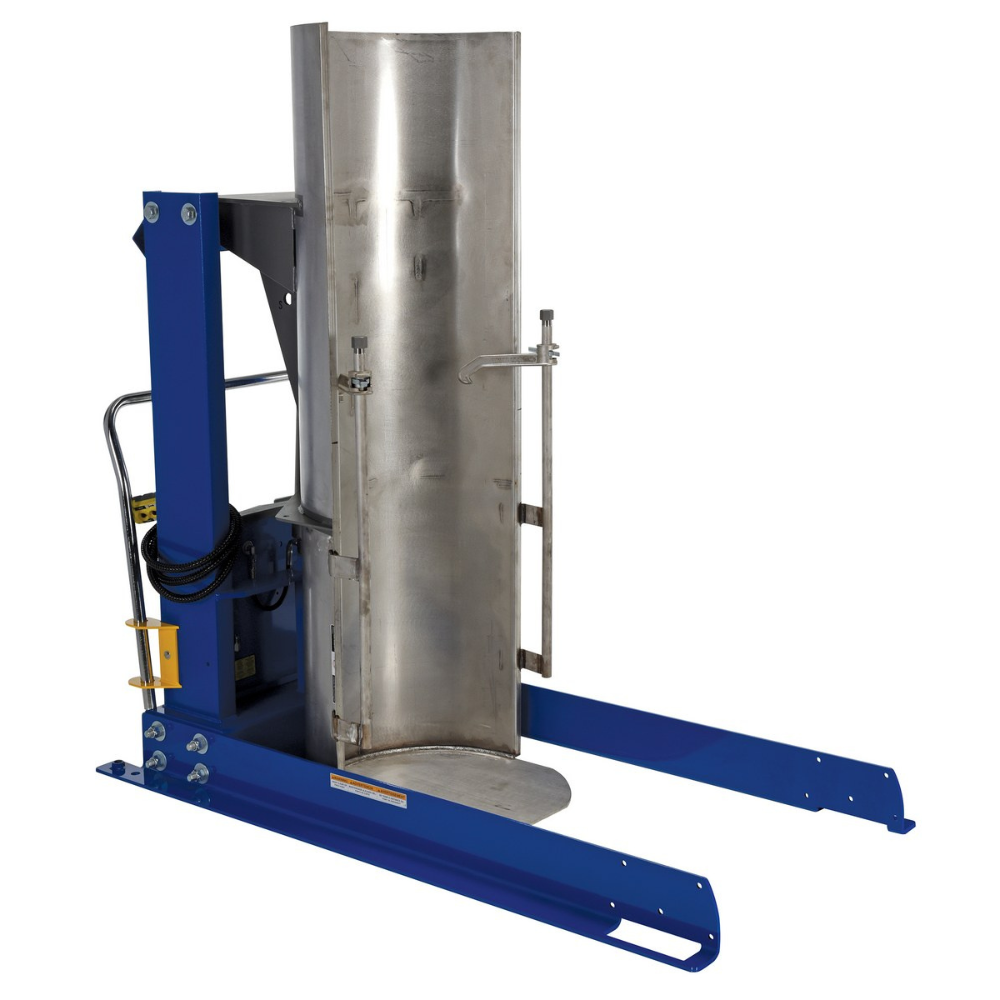

The Vestil Stainless Steel Stationary Hydraulic Drum Dumper is designed for safely and efficiently dumping heavy plastic, steel, and fiber drums. Its solid steel chute and all-steel construction provide long-lasting durability. The unit features adjustable drum restraints, an upper travel limit switch, an emergency brass safety velocity fuse in the cylinder, and a vertical adjustment system for secure handling of 30- and 55-gallon drums.

Equipped with a heavy-duty pre-wired electric motor, this drum dumper allows operators to dump drums with ease using a hand-held control on an 8 ft. coil cord. Drum rotation can be stopped at any point, offering full control during operation.
  • Model Number: HDD-48-10-S-SSC
  • Capacity: 1,000 lbs
  • Dump Height: 48 in
  • Overall Lowered Height: 72 in
  • Overall Raised Height: 116 in
  • Drum Compatibility: 30 & 55 gallon – steel, plastic, and fiber
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Raise Time: 42 seconds
  • Motor: 3/4 hp, 115V, Single Phase, 60 Hz, 56 Frame
  • Control Cord Length: 8 ft
  • Power Cord Length: 8 ft
  • Cylinder: 2.5 in diameter × 18 in length
  • Assembled Dimensions: 71.5 in D × 36 in W × 72 in H, 676 lbs
  • Package Dimensions: 65 in D × 38 in W × 77 in H, 792 lbs
  • Material: Stainless Steel

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
