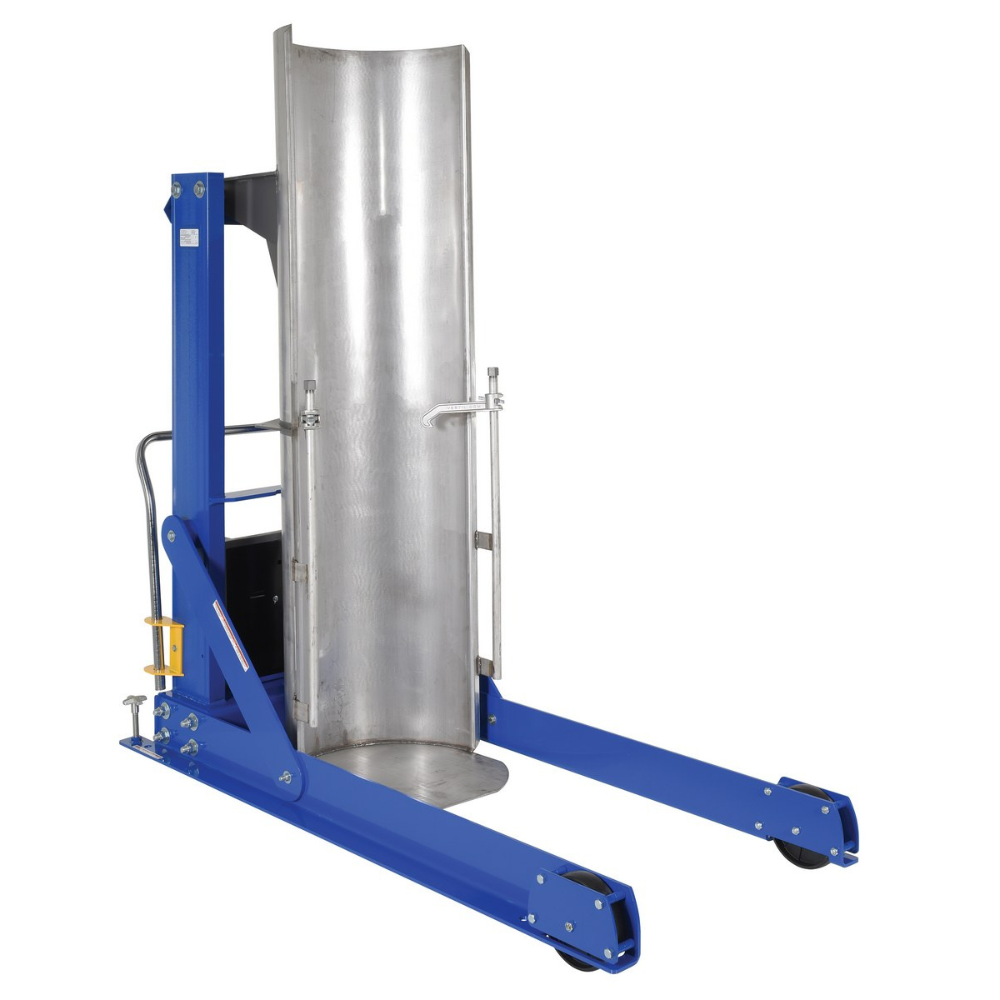

1,000 Lb. Stainless Steel Portable Hydraulic Drum Dumper – 48" Dump Height – HDD-48-10-P-SSC – Vestil

SKU: HDD-48-10-P-SSC
$7,218.81
Estimated Lead Time:7-9 Weeks

The Vestil Stainless Steel Portable Hydraulic Drum Dumper is designed for efficiently lifting and dumping heavy 30- and 55-gallon drums made of steel, plastic, or fiber. Built with a solid stainless steel chute and equipped with casters and floor lock screws, this portable unit provides stability and maneuverability.

The dumper operates with a pre-wired heavy-duty electric motor and a hand-held control, allowing operators to stop drum rotation at any point. Safety features include an upper travel limit switch, emergency velocity fuse in the cylinder, and adjustable drum restraints. Rugged all-steel construction ensures long-term reliability.
  • Model Number: HDD-48-10-P-SSC
  • Capacity: 1,000 lbs
  • Dump Height: 48 in
  • Overall Lowered Height: 72.5 in
  • Overall Raised Height: 116.75 in
  • Drum Compatibility: 30 & 55 gallon drums (steel, plastic, fiber)
  • Drum Rotation: 135°
  • Dump Angle: 45°
  • Chute Diameter: 24 in
  • Chute Reach: 14 in
  • Raise Time: 42 seconds
  • Motor: 0.75 hp, 115V, 60 Hz, Single Phase
  • Cylinder: 2.5 in diameter × 18 in length
  • Hand Held Control Cord Length: 8 ft
  • Power Cord Length: 8 ft
  • Rear Wheels: (2) 6 in × 2 in, Glass-Filled Nylon
  • Front Wheels: (2) 8 in × 2 in, Glass-Filled Nylon
  • Assembled Dimensions: 71.5 in × 36 in × 72.5 in, 738 lbs
  • Package Dimensions: 65 in × 40 in × 77 in, 862 lbs
  • Material: Stainless Steel (Frame & Chute)

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
