Concrete Pressure Tong with Urethane Pads – 1100 lbs - Model 172 – Caldwell

SKU: 67-2001
$1,773.75
Estimated Lead Time:

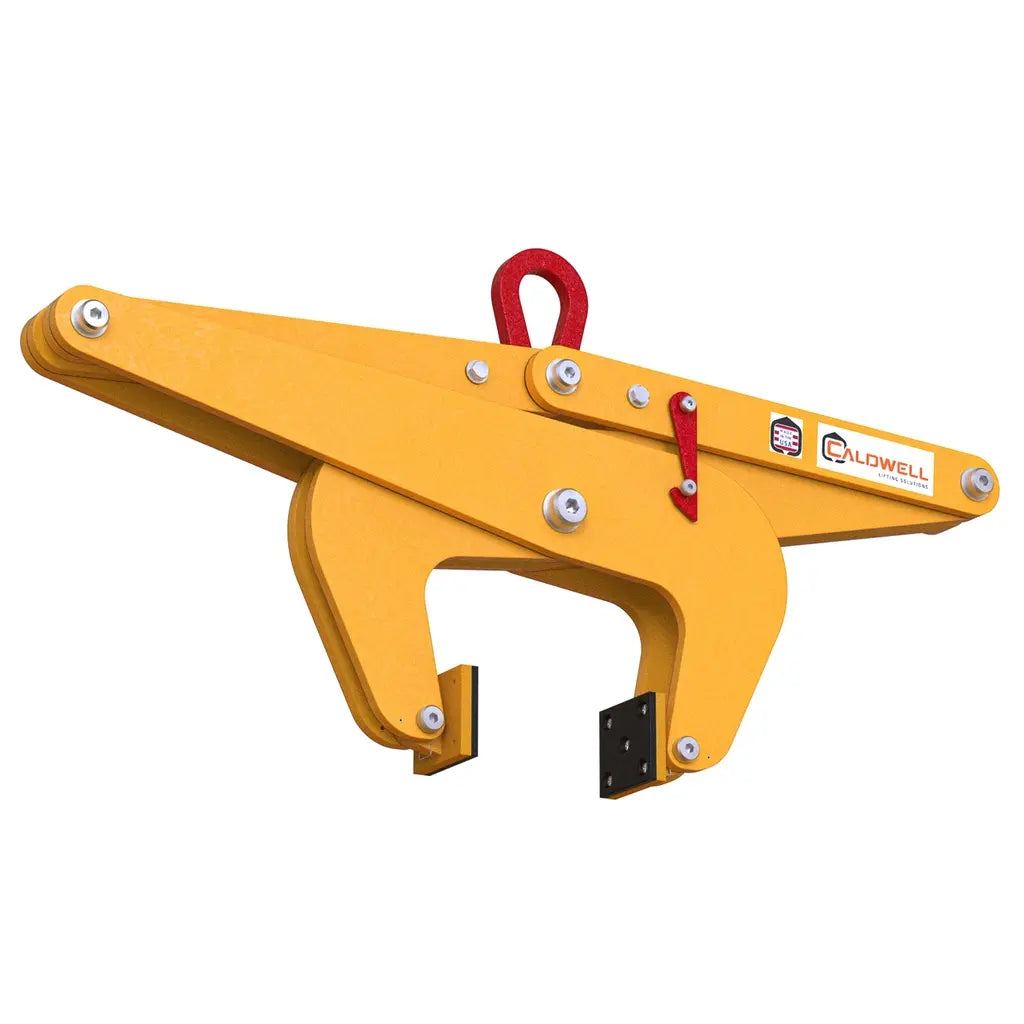

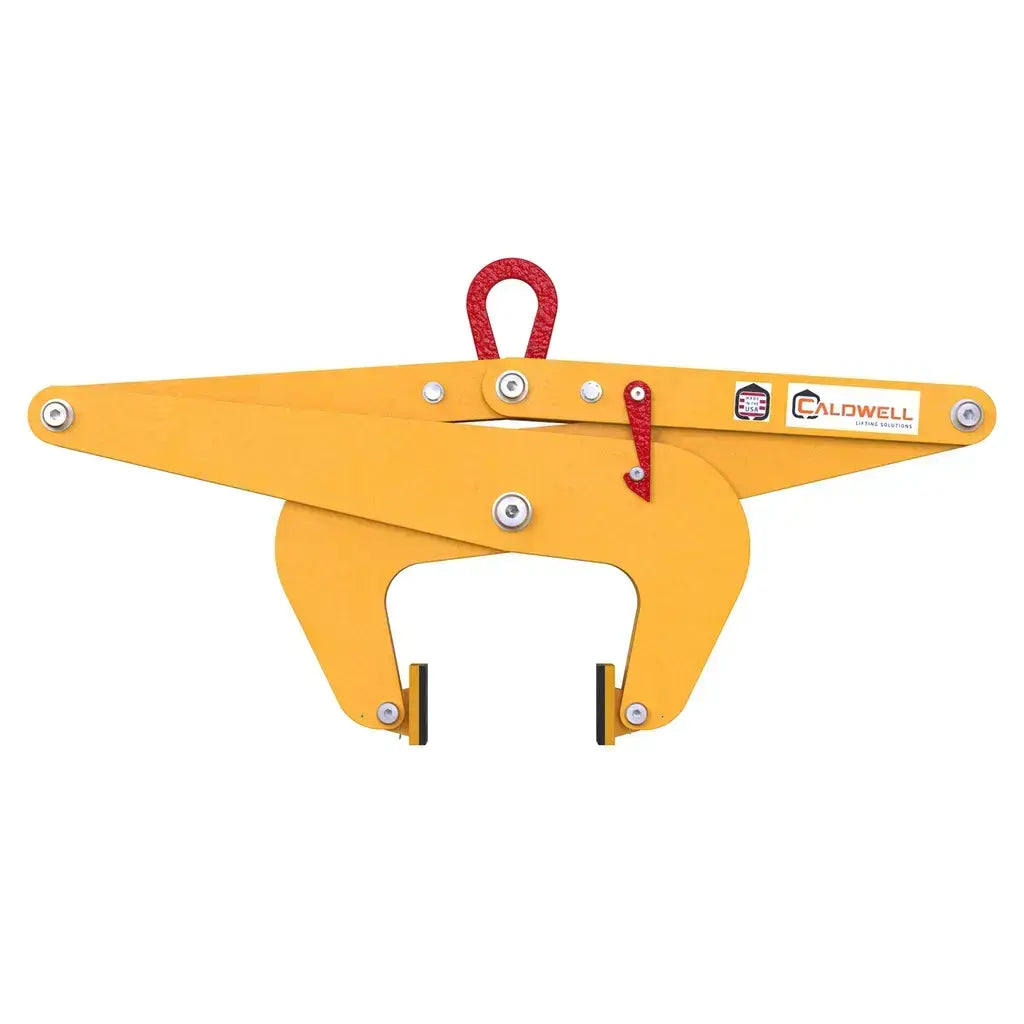

The Caldwell Model 172 Concrete Pressure Tong is purpose-built for safely handling cured concrete products without damaging their surface. Fitted with pivoting urethane pads, it automatically adjusts to load size and provides a secure grip without scratching or marring the concrete. The tong features a manual release latch for easy unloading and is designed to maintain proper contact with the load. Engineered to comply with ASME standards, the Model 172 is ideal for concrete handling operations where surface protection is essential. Need a custom configuration? Call us to build a pressure tong tailored to your exact lifting needs.
  • Model Number: 172-1/2
  • Capacity: 0.55 tons

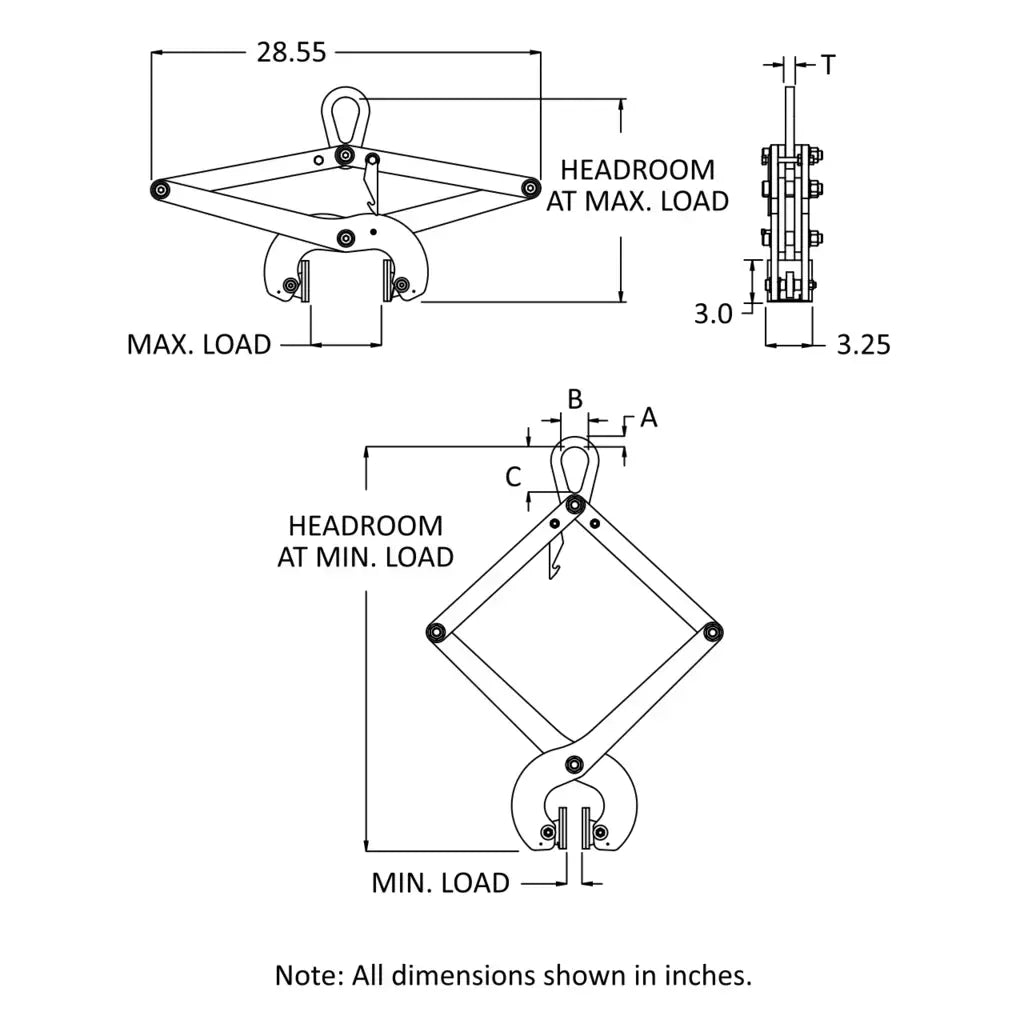

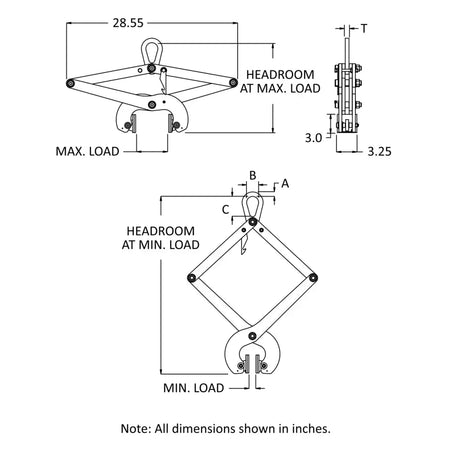

  • Max Load Width: 5.5 in
  • Min Load Width: 1.19 in
  • Max Width: 28.8 in
  • Bail Depth: 0.75 in
  • Bail Opening Width: 2 in
  • Bail Opening Height: 3.38 in
  • Bail Thickness: 0.62 in
  • Headroom Max: 29.5 in
  • Headroom Min: 13.5 in
  • Weight: 45 lbs
