Concrete Pressure Tong with Urethane Pads – 550 lbs -Model 172 – Caldwell

SKU: 67-2000
Regular price $1,334.06
Estimated Lead Time:

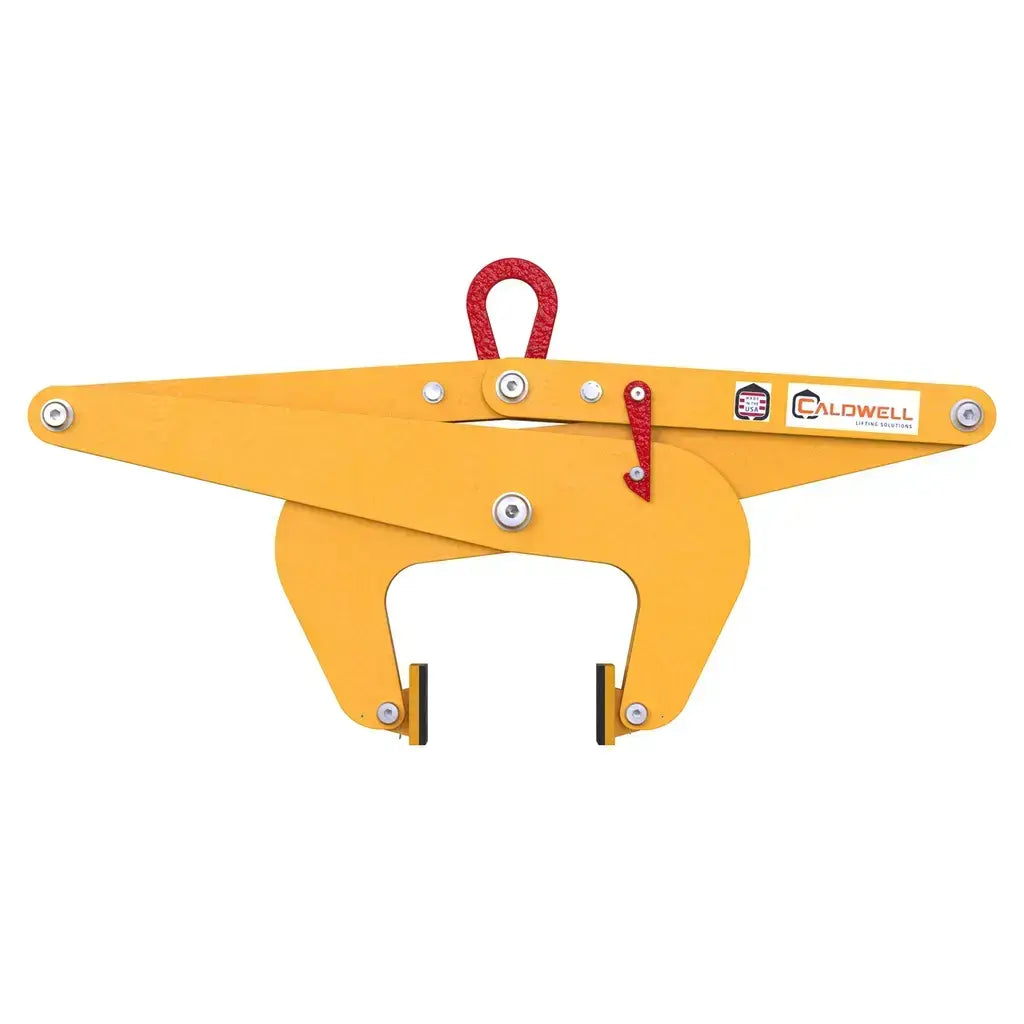

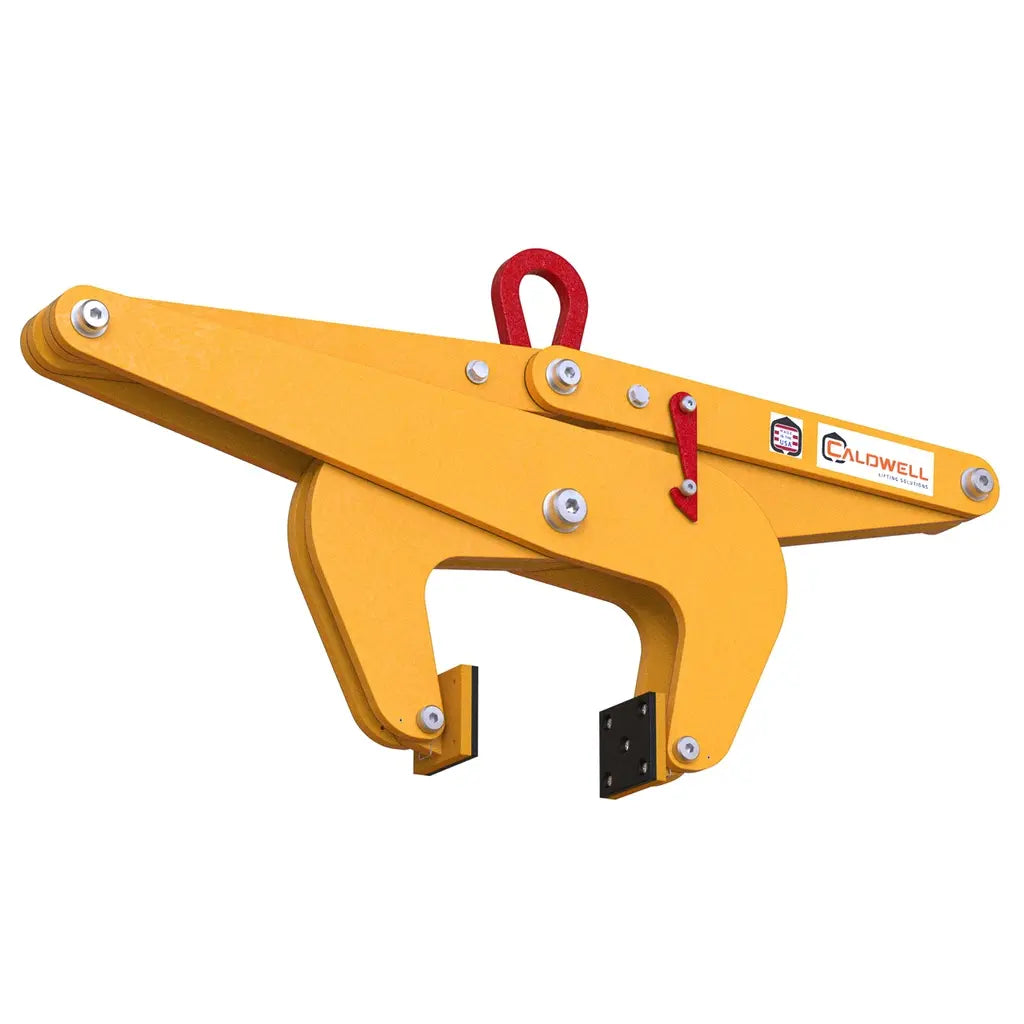

The Caldwell Model 172 Concrete Pressure Tong is specifically engineered for handling cured concrete products with care. Designed with urethane pads and a pivoting pad system, this tong grips concrete surfaces securely without causing scratches or surface damage. It features an easy-to-release manual latch and automatically adjusts to varying load sizes, improving both safety and efficiency. Compliant with ASME standards, the Model 172 is ideal for applications where surface protection is critical. Need a custom configuration? Call us to build a pressure tong tailored to your exact lifting needs.

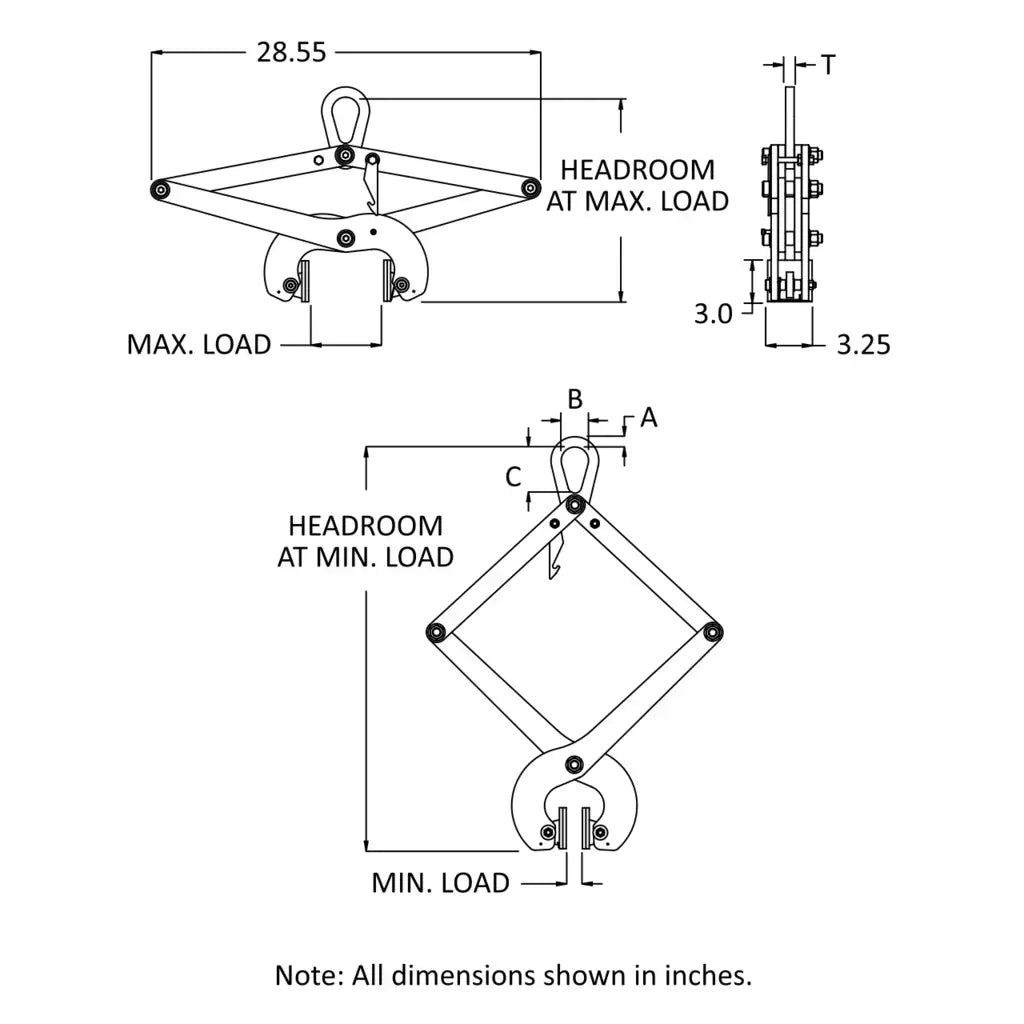

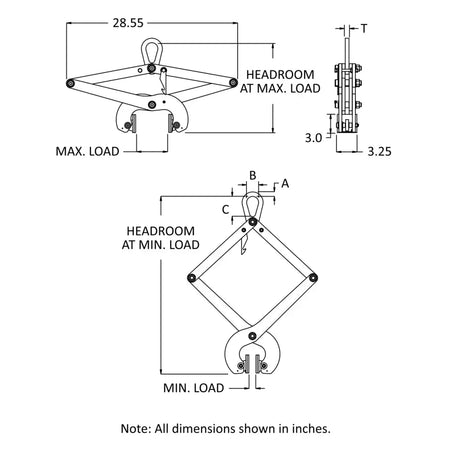

  • Model Number: 172-1/4
  • Capacity: 0.28 tons
  • Max Load Width: 5.5 in
  • Min Load Width: 1.19 in
  • Max Width: 28.8 in
  • Bail Depth: 0.69 in
  • Bail Opening Width: 1.69 in
  • Bail Opening Height: 2 in
  • Bail Thickness: 0.69 in
  • Headroom Max: 29.5 in
  • Headroom Min: 13.5 in
  • Weight: 25 lbs
