Everything You Ever Wanted to Know About Overhead Cranes
When you hear "overhead crane," do you picture those towering structures silhouetted against the skyline at construction sites? While it's easy to confuse the two, overhead cranes are a different breed, integral to the operations within industrial settings rather than building them from the ground up. This blog post is your comprehensive guide to understanding overhead cranes—their types, applications, how they're impacted by environmental conditions, technological advancements, and the regulatory landscape shaping their use.
What is an overhead crane?
An overhead crane, also known as a bridge crane, is a type of crane found in industrial environments. It consists of parallel runways with a traveling bridge spanning the gap. A hoisting mechanism, often called a trolley, travels along the bridge. This type of crane is used to lift and move heavy or large objects within a restricted area, typically in manufacturing or assembly plants, warehouses, and some large shipyards. Overhead cranes can vary greatly in terms of capacity, design, and application, ranging from small workstation cranes to large, custom-engineered process lifting systems used in heavy industries. They are highly valued for their ability to move heavy loads efficiently, with precision, and safely, minimizing the need for manual handling and thus reducing the risk of injury.
What are some different types of overhead cranes, are there different variations?
When we dive into the world of overhead cranes, it's fascinating to see the variety and how each type is crafted to meet specific needs, whether it's about the load they need to carry, the space they operate in, or the peculiarities of their working environment. Let's start with the single girder cranes, known for their simplicity with just one bridge beam and two end trucks. They're the go-to for less demanding lifting tasks and tighter spaces, offering a more economical and simpler installation than their more robust counterparts.
Now, if the lifting requirements become more demanding, double girder cranes step up to the plate. With their dual bridge beams providing a sturdy platform for the trolley and hoist, they're built for the heavy lifting, quite literally. This design not only supports heavier loads but also maximizes lift height, making them a staple in heavy manufacturing or anywhere high capacity and durability are non-negotiable.
Then there's the gantry crane, a bit of a nomad in the crane family, with its legs firmly on the ground, moving along ground-level rails. Perfect for outdoor setups or where overhead systems aren't feasible, gantry cranes come in full and semi-gantry configurations, catering to a variety of spatial and structural requirements.
Jib cranes add another layer of versatility, with their rotating booms and compact footprint, making them ideal for localized tasks where precision is key. Though they might not always be labeled as overhead cranes, their role in facilitating repetitive lifting tasks across a confined area is undeniable.
Bridge cranes, encompassing both single and double girder models, specialize in moving loads across a linear path, embodying the essence of overhead lifting. This term is often used interchangeably with overhead cranes, highlighting the bridge structure as a defining characteristic.

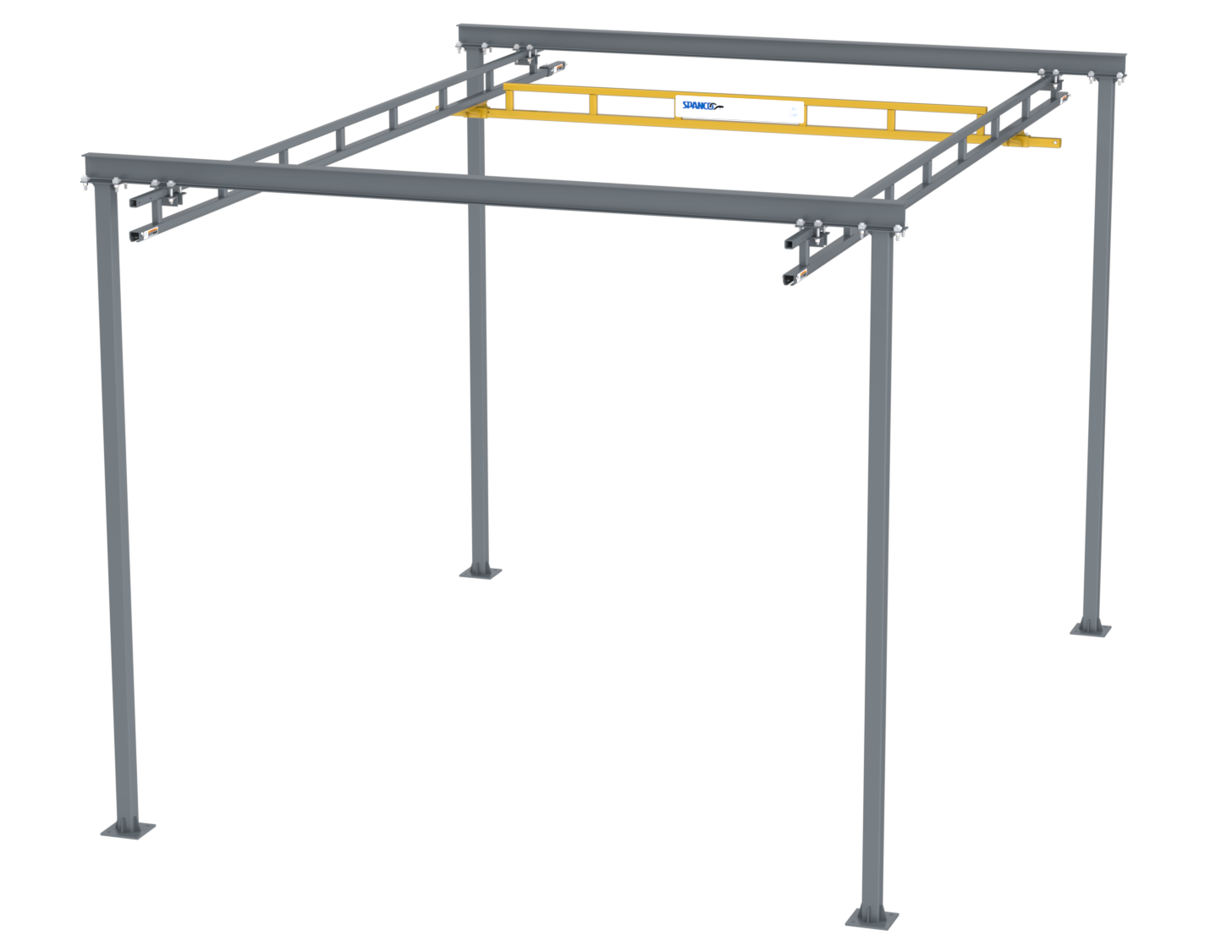

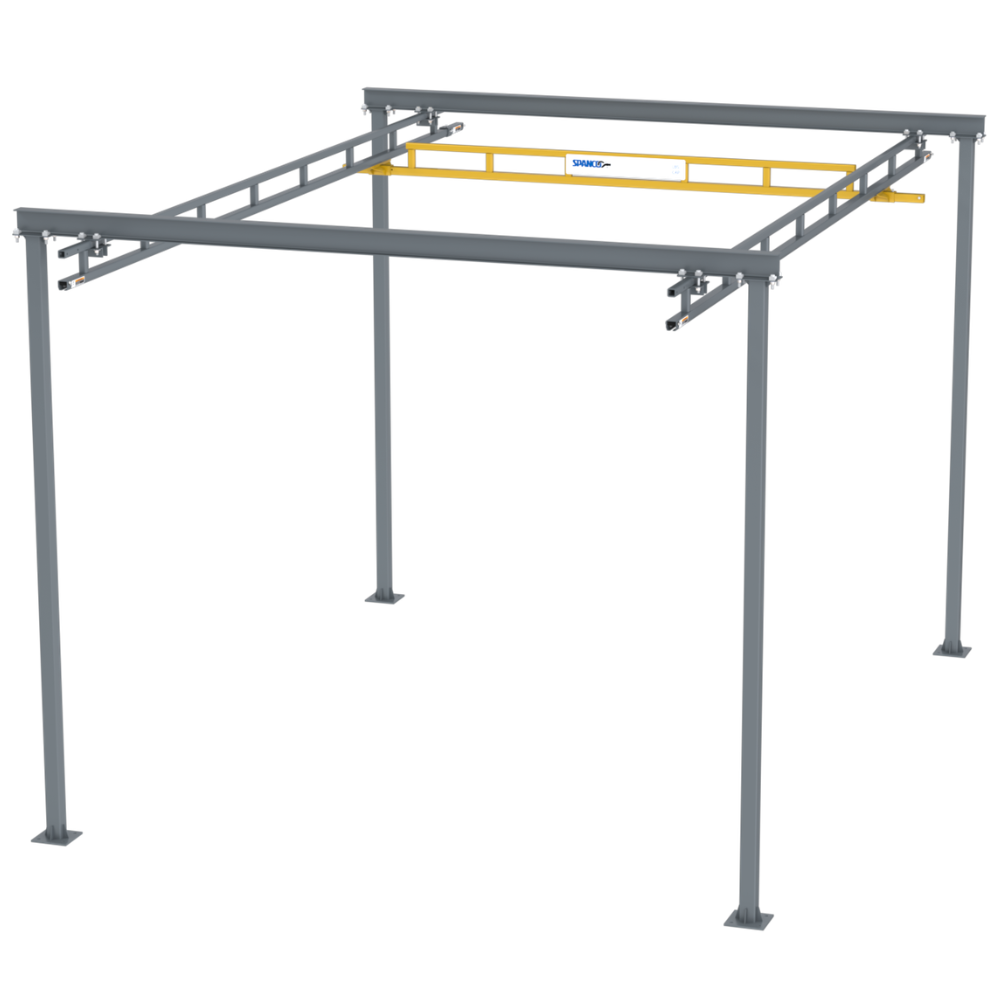

For lighter duties, workstation cranes come into play, prized for their precision and ergonomic design. They shine in scenarios where smooth operation and ease of movement are paramount, like assembly lines or small workshops.
Lastly, monorail cranes offer a streamlined solution for moving loads along a set path, with options to integrate switches and branches for complex routes. They're a common sight in assembly plants and conveyor systems, where straightforward, efficient transport is needed.
In essence, the overhead crane universe is rich and diverse, with each type designed to fulfill specific lifting needs, spatial constraints, and operational demands. The choice of crane hinges on various factors, from lift capacity and span to headroom and application, ensuring that there's a perfect fit for every lifting challenge.
What industries are best suited to use overhead cranes?
Overhead cranes are pivotal in industries where the movement of heavy or bulky materials is a day-to-day necessity. Their versatility shines across a spectrum of sectors, each with its unique demands for lifting and handling materials..
In the realm of manufacturing, they're indispensable. Take the automotive industry, for example, where overhead cranes glide through production lines, assisting in the assembly of vehicles by moving parts, engines, and even the chassis with ease. Similarly, the production of heavy equipment for agriculture, mining, and construction relies on these cranes to lift and assemble large machinery parts..
The steel and metals sector relies heavily on overhead cranes for transporting raw materials, semi-finished, and finished goods. These cranes handle the substantial weight of steel coils, castings, and tooling, ensuring the smooth operation of steel mills and metal fabrication plants.
Aerospace is another industry where the precision and gentle handling capabilities of overhead cranes are crucial. They play a significant role in manufacturing, assembling, and maintaining aircraft and spacecraft, dealing with components that are both large and delicate.
In the energy sector, overhead cranes are key players. Whether it's for assembling and maintaining power generation equipment in nuclear, coal, gas, and hydroelectric plants or for installing and servicing wind turbine components, these cranes ensure operations run smoothly and efficiently.
Shipbuilding benefits greatly from the lifting power of overhead cranes, which are used to construct and repair ships by moving everything from tiny components to massive sections of ship hulls.
Warehousing and distribution centers utilize overhead cranes to load and unload goods, move products around, and organize heavy or bulky items in storage areas, streamlining operations and enhancing efficiency.
For the production of construction materials, such as precast concrete and large construction elements, overhead cranes facilitate the movement of these hefty items, proving their worth in yet another demanding setting.
.The railway industry uses overhead cranes for the maintenance and assembly of rail vehicles, including the handling of heavy components like engines and carriages, ensuring the smooth operation of rail services.
Paper mills benefit from the use of overhead cranes in handling rolls of raw material and aiding in the maintenance and operation of paper-making machinery, while the waste management industry utilizes them in recycling facilities and incinerators for sorting, handling waste materials, and loading feedstock into processing units.
The efficiency, safety, and operational flow improvements brought by overhead cranes across these diverse industries highlight their indispensability. By minimizing manual load handling, they not only enhance safety but also significantly boost operational efficiency, making them a fundamental component of modern industrial operations.
What are the minimum and maximum weight amounts that an overhead crane can handle?
The lifting capabilities of overhead cranes span a broad spectrum, tailored to accommodate a vast range of industrial needs, from delicate, precision-based tasks to the heavy lifting required in large-scale manufacturing and construction. At the lighter end of the scale, we find cranes such as small workstation or jib cranes, which are adept at handling tasks requiring finesse and ease of movement. These cranes can lift as little as 250 pounds (around 113 kilograms), suitable for environments like workshops or assembly lines where precision is paramount, and manual handling is minimized for safety and efficiency.
On the other end of the spectrum, the heavy hitters of the crane world—large double girder overhead cranes—come into play in sectors that deal with significantly heavier loads. Industries such as steel production, shipbuilding, and heavy machinery manufacturing rely on these powerhouses for their ability to hoist several hundred tons. In fact, some specialized cranes in these sectors are engineered to manage loads of up to 1,000 tons (approximately 907,185 kilograms) or more, tasked with moving mammoth objects like large ship sections, massive steel beams, or hefty machinery components.
The capacity of an overhead crane is not a number pulled out of thin air but is determined by a confluence of factors. These include the crane's design, the strength and configuration of its components like the hoist, trolley, and bridge, as well as the setup of the runway system it operates on. Even the structural integrity of the building or facility where the crane is installed plays a crucial role in defining its capacity.
For businesses and operations, selecting a crane that aligns with the weight and nature of the loads it will handle is not just a matter of efficiency but paramount for safety. This meticulous matching process ensures that cranes are not only capable of performing the required tasks but do so in a manner that's both safe and effective, highlighting the importance of engineering and design in meeting the specific demands of various operational environments.
What are the safety features of overhead cranes?
Overhead cranes incorporate an array of safety features aimed at mitigating risks, safeguarding operators and personnel, and ensuring the secure handling of materials. These features are integral to the crane's design, emphasizing prevention, protection, and preparedness across various operational scenarios.
One of the foundational safety mechanisms is the use of limit switches. These include the load limit switch, which prevents the crane from lifting beyond its capacity to avoid overloading and potential structural failure; the upper limit switch, which stops the hook at its maximum safe height to prevent it from colliding with the drum; and the travel limit switch, which confines the crane's movement to predefined safe areas within the runway system.
Emergency stop buttons are strategically placed on control panels and remote controls, offering operators a quick means to halt crane operations instantly in response to an emergency situation. Complementing these are warning signals, both audible (such as alarms or sirens) and visual (like flashing lights), which activate during crane operations to alert nearby personnel of the crane's movements and enhance workplace safety.
Overload protection systems go beyond the mechanical load limit switch by employing electronic monitoring to assess the force exerted on the crane's structure, automatically preventing operations that exceed the crane’s lifting capacity. Braking systems are also pivotal, with mechanical brakes ensuring the crane and hoist remain stationary when idle, and electrical brakes providing additional control and stopping power during operations.
The inclusion of lockout/tagout (LOTO) capabilities is crucial for maintenance safety, ensuring that the crane cannot be accidentally operated while technicians perform repairs or servicing. Anti-collision devices are essential in environments where multiple cranes operate on the same rails, automatically stopping cranes from coming into dangerous proximity to each other.
Regular wire rope inspections are mandated to identify and address signs of wear, such as fraying or kinking, which could lead to failures during lifting tasks. Monitoring the alignment and condition of the crane's rails is equally important to prevent potential derailments that could pose serious safety risks.
Lastly, comprehensive operator training programs are indispensable. These programs cover safe operation practices, detailed understanding of crane controls, emergency procedures, and the importance of regular inspections, ensuring operators are well-equipped to manage the crane safely and efficiently.
Together, these safety features form a robust framework designed to minimize the risk of accidents, prolong the operational lifespan of the crane, and safeguard the health and safety of all personnel involved in crane operations. Regular maintenance and adherence to safety protocols are key to leveraging these features effectively, ensuring a safe and efficient workplace.
How are overhead cranes installed and maintained?
Installing and maintaining overhead cranes are intricate processes that are pivotal for their safe and effective use. These processes involve meticulous planning, strict adherence to safety norms, and the expertise of skilled professionals to ensure that the cranes operate smoothly, efficiently, and without hazards. Let's delve into how these crucial tasks are accomplished:
Installation Process:
Pre-Installation Planning:
The journey begins with a thorough assessment of the facility's structure to ensure it can adequately support the crane. This phase involves evaluating the weight of the crane, the loads it will handle, and its movement patterns. Planning also includes designing the layout of the crane system, such as the runway and supporting structures, to optimize workspace utilization and safety. Additionally, securing the necessary permits and ensuring compliance with local regulations and standards is a vital part of this phase.
Component Assembly:
Upon the crane's components arriving, a thorough inspection for any damage or defects is crucial. Following this, the assembly of parts like the girder, end trucks, hoist, and trolley is carried out in alignment with the manufacturer's guidelines.
Installation of the Runway and Crane:
The next step is installing the runway system with precision to ensure it is level and properly aligned. The crane is then mounted onto the runway, which for bridge cranes, involves setting the bridge beams onto the end trucks and securely fastening them.
Electrical and Mechanical Installations:
This stage encompasses the installation of electrical systems—including wiring, controls, and safety devices—and ensuring all mechanical connections are securely fastened, including bolts and nuts.
Testing and Commissioning:
Before the crane is fully operational, load tests to verify its capacity and functional tests to check all movements and safety features are imperative. Training for operators and maintenance staff on the proper operation and safety measures is also conducted here.
Maintenance Process:
Routine Inspections and Periodic Maintenance:
Regular maintenance kicks off with daily or pre-shift checks by operators for visible issues, complemented by frequent inspections by trained personnel to examine critical components for wear or damage. Periodic maintenance involves detailed inspections as recommended by the manufacturer or regulatory standards, focusing on the crane's structural, mechanical, and electrical systems, and testing of safety devices to ensure their reliability.
Preventive Maintenance:
Scheduled servicing based on manufacturer recommendations or usage patterns is crucial to replace or repair parts preemptively. Lubricating moving parts regularly helps reduce wear and extends the lifespan of components.
Record Keeping and Training:
Maintaining detailed records of all inspections, maintenance, and any repairs, as well as incidents or operational issues, is essential for ongoing safety and efficiency. Ensuring that operators and maintenance personnel are continuously trained in the latest safety practices, operational procedures, and troubleshooting techniques is equally crucial.
Through diligent installation and maintenance, overhead cranes can operate safely and efficiently, minimizing downtime, extending their operational lifespan, and ensuring the safety of all personnel involved.
What are the key factors to consider when selecting an overhead crane?
Selecting the right overhead crane is more than just a purchasing decision; it's about ensuring your operations run smoothly, safely, and cost-effectively. Let's walk through the thought process that goes into making this critical choice, touching on the key aspects that influence a crane's fit for your specific needs.
First off, consider the crane's capacity. It's like picking a vehicle; you wouldn't choose a compact car to tow a boat. You need to think about the heaviest load you'll lift and then give yourself a bit of breathing room above that for safety and future needs. It's all about finding that sweet spot where the crane can handle your current and potentially heavier loads without breaking a sweat.
The span and lifting height of the crane are akin to ensuring the vehicle you choose fits in your garage and can clear the driveway slope. The span, the distance between the crane's rails, needs to match the area you've got available. Similarly, the lifting height must be enough to navigate any obstacles and reach the necessary heights within your workspace, ensuring smooth sailing.
How often and intensely you'll use the crane, known as the duty cycle and service classification, also plays a crucial role. It's like choosing between a daily commuter car and a heavy-duty truck for a construction site. Cranes are designed to handle everything from light, occasional lifts to non-stop, heavy lifting. Matching the crane's capabilities with your operational intensity is key to longevity and efficiency.
Then there's the type of material you're lifting. Just as you'd select specific tools for a job, you might need specialized attachments or capabilities for certain loads, especially if they require unique handling, like tilting or rotating.
Speed is another factor that can significantly impact productivity. Imagine you're on the highway; the speed at which you can safely and efficiently travel affects how quickly you reach your destination. Faster cranes might speed up operations, but they'll also need more sophisticated controls and safety measures to keep everything smooth and secure.
Where you plan to use the crane, indoors or outdoors, affects its design and features. Outdoor operations might need the crane to be more like an all-weather vehicle, ready to face the elements with weatherproofing and enhanced durability.
The way you control the crane, whether it's through pendant, remote, or cabin controls, is like choosing a car with manual or automatic transmission, push-button start, or keyless entry. It all comes down to what fits your operational style and ensures the safety and comfort of the operators.
Ensuring the crane fits with your facility's power supply and electrical requirements is crucial, much like ensuring you have the right type of fuel or charging capabilities for a vehicle.
Safety features are non-negotiable. Just as you'd look for airbags, anti-lock brakes, and safety ratings in a car, features like overload protection, emergency stops, and warning signals are vital for a crane.
Compliance with regulatory standards ensures your crane meets all necessary safety and operational benchmarks, much like a vehicle meeting emission and safety standards.
Finally, the ease of installation, maintenance, and availability of support from the manufacturer can't be overlooked. It's similar to considering a car's warranty, service intervals, and the availability of spare parts. Regular maintenance and support are essential to keep the crane operating safely and efficiently, ensuring it's a reliable part of your operations for years to come.
By considering each of these aspects carefully, you're well on your way to selecting an overhead crane that not only meets your current needs but is also a sound investment for the future, ready to tackle whatever challenges come your way.
How does the design of a facility impact the choice of overhead crane?
When we dive into how a facility's design affects the choice of overhead crane, it's a bit like piecing together a complex puzzle. Each element of the building's design, from its dimensions to its structural integrity and even the environment within, plays a crucial role in determining which crane fits best. Let's unpack this, shall we?
Think of the building's dimensions - the height, width, and length - as the canvas you have to work with. The ceiling height dictates how high you can lift, guiding whether an underhung crane (which hangs below the ceiling structure) or a top-running crane (which rides on top of the rails) makes more sense. The building's span, or its width, impacts the crane's span and the kind of support it'll need to cross that distance without faltering. And then there's the length, influencing the runway system and whether a single girder or double girder crane would better suit the facility, based on factors like load capacity and structural support.
Now, consider the floor space and how everything is laid out, from machinery and equipment to workstations. The crane you choose needs to fit into this environment seamlessly, enhancing workflow rather than hindering it, avoiding obstructions, and safely navigating the paths where loads will travel. Features like rotating hooks or adjustable speed controls might come into play, depending on the intricacies of your operation.
The building's very bones - its structural strength - are paramount. They must bear not just the weight of the crane but also the loads it carries. In some cases, existing structures might need a bit of beefing up, like reinforced beams or additional supports, to handle the crane's demands, affecting both the crane's feasibility and the budget.
Operational needs further refine your choice. The types of materials you're handling, how often lifts occur, and the level of precision required all influence the crane's features, from its speed and control options to whether automation is a viable upgrade.
And let's not forget about the environment inside the facility. Factors like temperature, humidity, and exposure to corrosive substances can dictate the need for cranes built from particular materials or equipped with protective features to withstand these conditions and operate safely.
Thinking ahead to the future is also critical. If expansion is on the horizon, opting for a modular crane system that can grow and adapt with your facility might be the smart move, ensuring your crane solution is as flexible as your business.
Safety and accessibility are always in the mix, shaping the crane's design and placement to ensure operations run smoothly and maintenance or emergency evacuations are straightforward.
Lastly, the practicalities of power supply and infrastructure can't be overlooked. For electrically powered cranes, ensuring easy access to a reliable power source is a must, influencing the type of crane that's feasible for your setup.
In essence, choosing the right overhead crane is about understanding your facility's unique puzzle - its design, operational demands, and future goals. Collaborating with experienced engineers and crane manufacturers can help tailor a crane solution that not only fits your current needs but also positions you for efficiency, safety, and growth down the line. It's a process that underscores the importance of matching technology with the practical realities of your operational environment.
